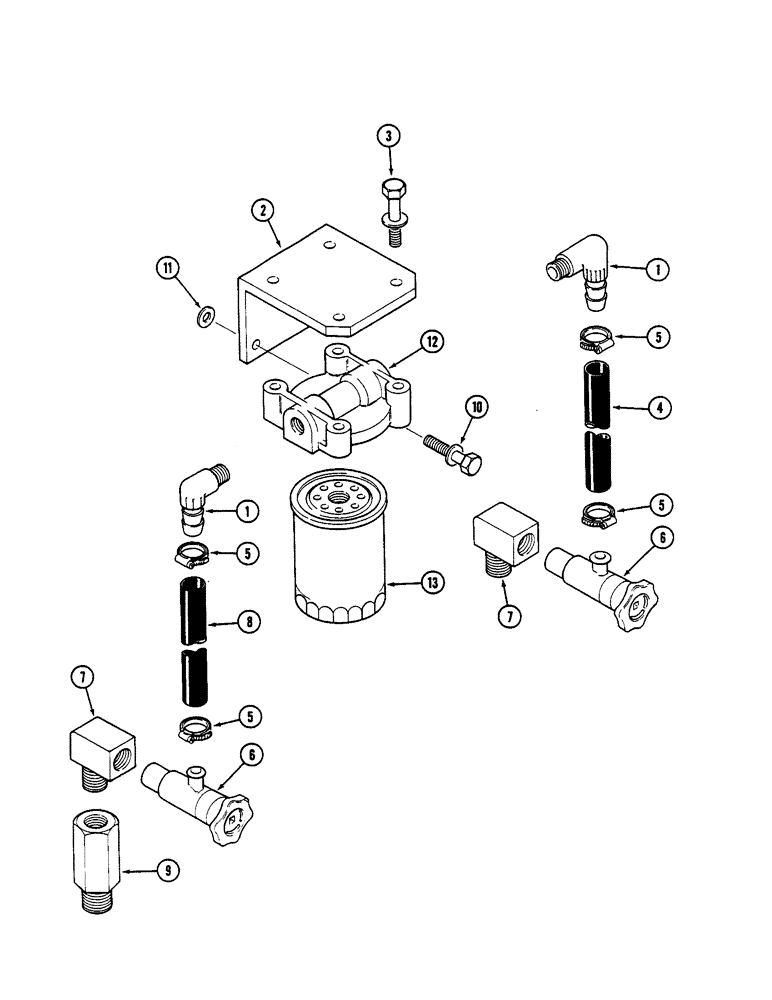

Запчасти Case IH STEIGER (2-20) - WATER FILTER, 855 ENGINE (02) - ENGINE

1

A77548

ELBOW

- coupling

2шт.

Order this part from J.I. Case.

1шт.

2

3060476

BRACKET

- water filter

1шт.

3

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

- hex 3/8 NC x 1-1/4 inch

4шт.

Order this part from J.I. Case.

1шт.

4

3062304

HOSE

- plain

1шт.

5

3016190

LINKAGE

CLAMP - hose

4шт.

6

A154051

COCK, DRAIN

VALVE - shutoff

2шт.

Order this part from J.I. Case.

1шт.

7

A71099

ELBOW

- street

2шт.

Order this part from J.I. Case.

1шт.

8

3062302

HOSE

- plain

1шт.

9

180221

ADAPTER

- pipe

1шт.

10

3043649

CAP

BOLT - hex, 7/16 NC x 4-1/4 inch

2шт.

11

109594

WASHER

- flat

4шт.

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - water, Includes Ref: 12, 13

1шт.

12

A152821

HEAD

- water filter

1шт.

Order this part from J.I. Case.

1шт.

13

A77544

FILTER

- coolant conditioner, service

1шт.

Order this part from J.I. Case.

1шт.

13

A77659

FILTER

- coolant conditioner, precharge

1шт.

Order this part from J.I. Case.

1шт.
