(9-108) - SHIPPING AND LIFTING ACCESSORIES

Запчасти Case IH STEIGER (9-108) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

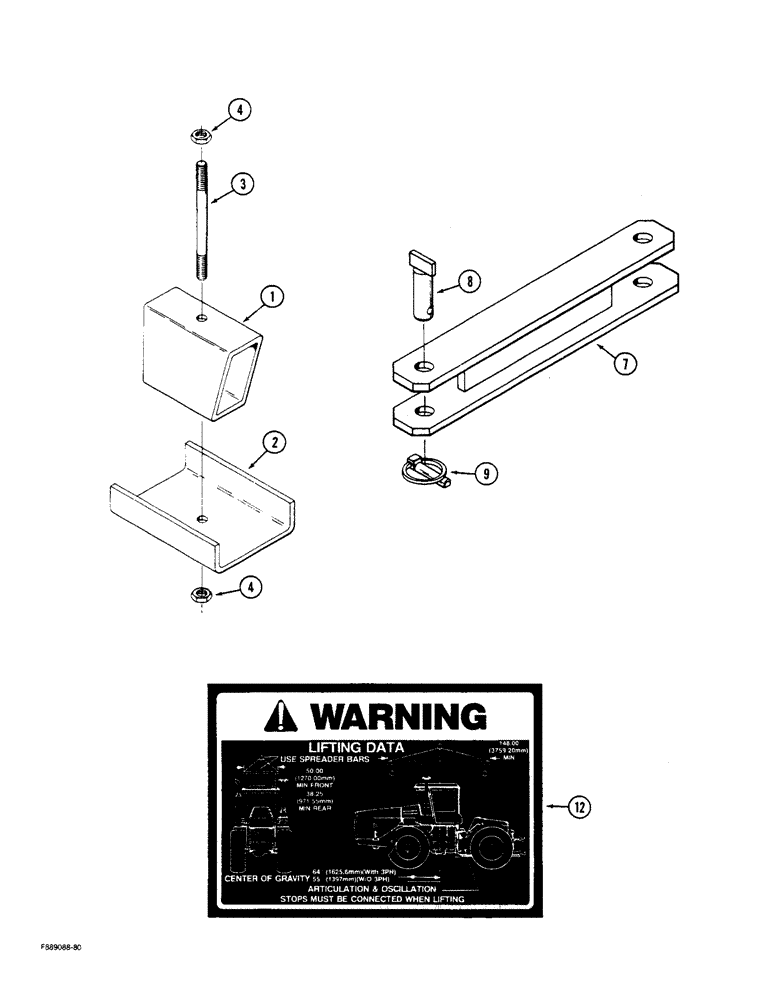

Схема запчастей Case IH STEIGER - (9-108) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS
9
2
4
1
12
7
4
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

70-2020T2

TUBE - oscillation stop

2шт.

2

70-2021T1

CHANNEL - oscillation stop

2шт.

3

19-6106

STUD - threaded, 1/2 NC x 7 inch

2шт.

4

19-653

LOCK NUT

- hex, lock, 1/2 NC

4шт.

7

1-6209T1

LINK

- articulation stop

1шт.

8

2-7398T1

PIN

- link

2шт.

9

19-345

PIN

- klik

2шт.

12

2-6935T1

DECAL

- lifting data

1шт.
