Запчасти Case IH STEIGER (9-104) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, 3406 ENGINE (09) - CHASSIS/ATTACHMENTS

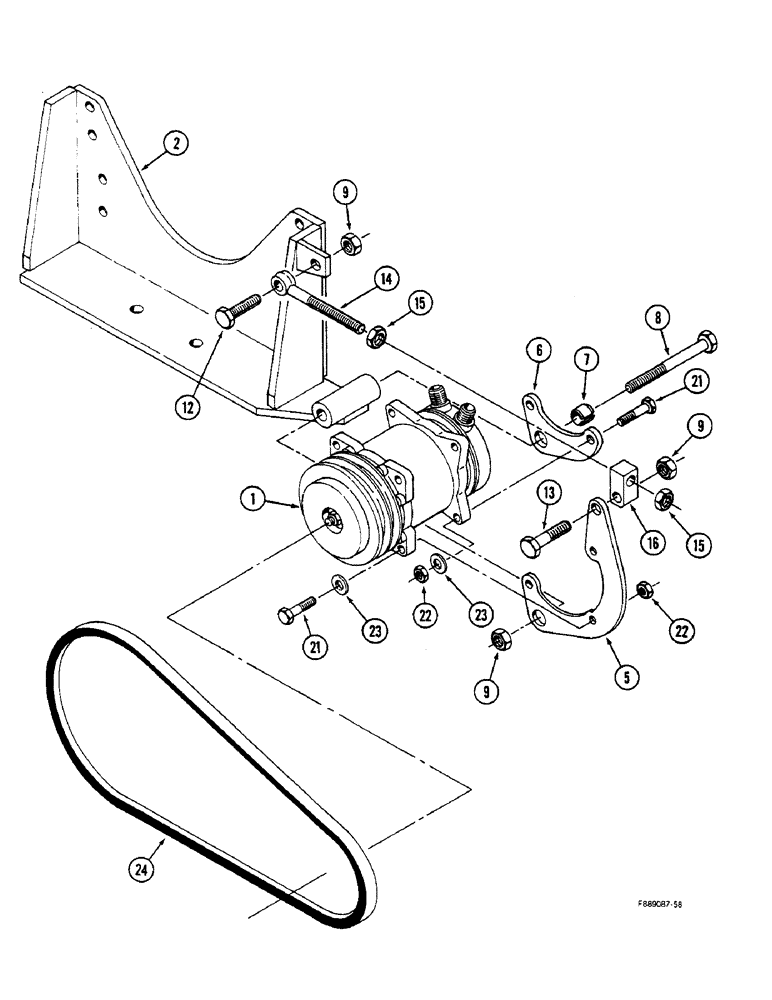

Схема запчастей Case IH STEIGER - (9-104) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, 3406 ENGINE (09) - CHASSIS/ATTACHMENTS
21
9
1
7
21
5
12
24
23
15
9
22
22
9
8
13
16
14
23
2
6
15

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure: 9-106)

1шт.

2

REF

INSTRUCTION

MOUNT - engine and compressor (See Figure: 2-2)

1шт.

5

2-7181T1

BRACKET

- compressor pivot, front

1шт.

6

2-5292T1

BRACKET

- compressor pivot, rear

1шт.

7

2-1144T1

BUSHING

- pivot

1шт.

8

24870R1

BOLT,Hex, 1/2" - 13 x 5", Gr 8

- hex, 1/2 NC x 5 inch, Grade 8

1шт.

9

19-653

LOCK NUT

- hex, lock, 1/2 inch NC

3шт.

12

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

- hex, 1/2 NC x 1-1/2 inch, Grade 8

1шт.

13

19-46

BOLT,1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

1шт.

14

22-1086T1

ROD

- compressor belt adjusting

1шт.

15

19-1060

JAM NUT,1/2" - 20, Gr 8

- hex, jam, 1/2 inch NF

2шт.

16

1-6899T1

BLOCK

- compressor belt adjusting

1шт.

21

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

BOLT - hex, M10 x 1.5 x 34 mm

5шт.

22

19-455

NUT

- hex, M10 x 1.5

5шт.

23

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, hardened

5шт.

24

90-3806T1

V-BELT,0.53" W x 44.60" L

Air conditioning compressor 0.53" W x 44.60" L

1шт.
