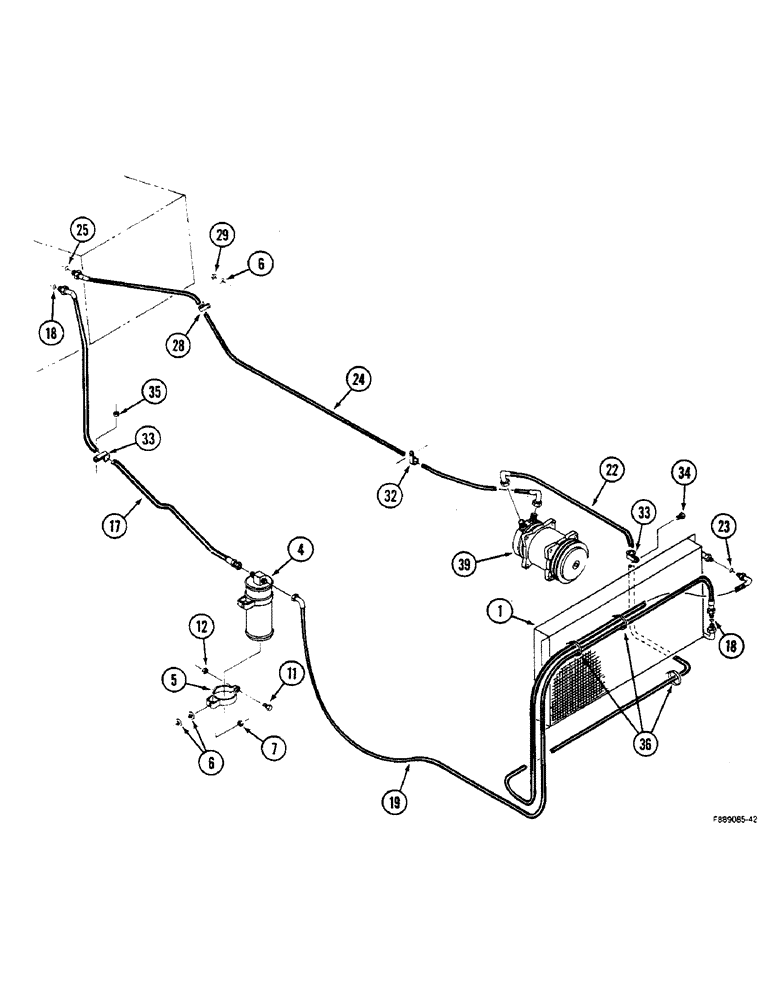

Запчасти Case IH STEIGER (9-100) - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER AND PLUMBING, 3406 ENGINE (09) - CHASSIS/ATTACHMENTS

1

60-4335T2

CONDENSER

ASSEMBLY - air conditioning

1шт.

4

60-5818T1

SUPPORT

RECEIVER-DRIER - freon

1шт.

5

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

1шт.

6

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, lock, 5/16 inch NC

2шт.

11

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

12

280129

NUT,1/4"-20

NUT - hex, lock, 1/4 inch NC

2шт.

17

31-2751

HOSE,7.94mm ID x 1981.2mm L

ASSEMBLY - receiver-drier to thermal expansion valve

1шт.

18

31-1807

O-RING

O-RING - 5/16 x 7/16 inch

2шт.

19

31-2575

HOSE,7.94mm ID x 2641.6mm L

ASSEMBLY -, Serial Range: receiver-drier-condenser

1шт.

22

31-1891

HOSE ASSY.

HOSE ASSEMBLY - discharge, Serial Range: condenser-compressor

1шт.

23

31-1808

O-RING

O-RING - 7/16 x 9/16 inch

1шт.

24

31-1888

HOSE ASSY.

HOSE ASSEMBLY - suction, Serial Range: compressor-evaporator

1шт.

25

31-1809

O-RING

- 9/16 x 11/16 inch

1шт.

28

1-2667

CLAMP

- hose

1шт.

29

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

32

31-2232

CLIP

- hose

1шт.

33

31-1776

MOUNTING CLIP

CLAMP - hose

2шт.

34

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

1-7818

CABLE

STRAP - nylon

3шт.

39

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure: 9-106)

1шт.
