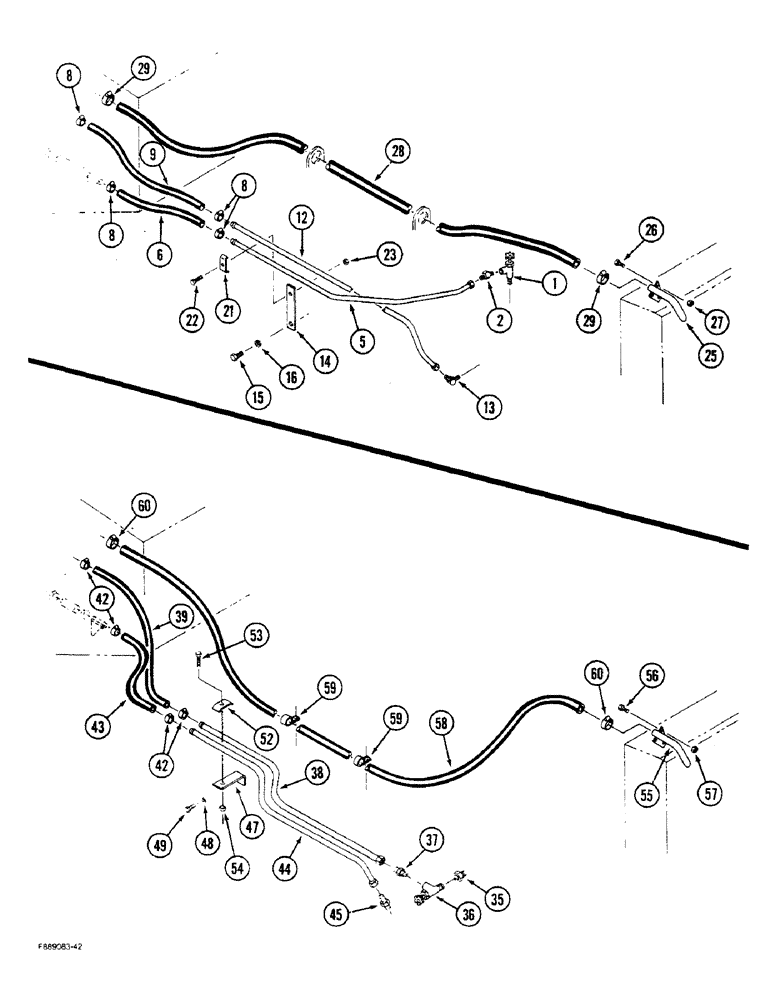

Запчасти Case IH STEIGER (9-096) - HEATER PLUMBING, 855 ENGINE, CAB (09) - CHASSIS/ATTACHMENTS

1

31-1275

SHUT-OFF VALVE

VALVE - shut off, 1/2 NPT x 3/8 inch NPT female

1шт.

2

31-1304

ELBOW,45 Degree, 7/8"-14" NPTF x 3/8"-18, 37 Degree

CONNECTOR - 45 degree, 3/8 NPT x 7/8 inch thread

1шт.

5

60-5801T1

TUBE,0.625" OD, 35.12, 8.6" Length

- heater

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 31 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

8

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch

4шт.

9

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 42 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

12

25-389T1

HEATER TUBE,0.625" OD, 46.75" Length

TUBE - heater

1шт.

13

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 90 degree, 1/2 NPT x 7/8 inch thread

1шт.

14

25-395

STRAP

BRACKET - clamp mounting

1шт.

15

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

16

19-119

LOCK WASHER,1/2"

1/2"

1шт.

21

32-1000

CLAMP

- tube, heater

1шт.

22

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch

1шт.

23

25846R11

NUT - hex, lock, 1/4 inch NC

1шт.

25

90-6830T1

TUBE,3.69 mm L

- evacuation, precleaner

1шт.

26

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

27

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

3шт.

28

31-2290

HOSE,1.00" ID x 84.00"

Evacuation 1.00" ID x 84.00"

1шт.

29

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 to 2 inch

2шт.

35

31-13

BUSHING

CONNECTOR - straight, 1/2 NPT x 3/4 inch NPT, heater plumbing, 3406 engine, cab

1шт.

36

31-1275

SHUT-OFF VALVE

VALVE - shut off, 1/2 NPT x 3/8 inch NPT female, heater plumbing, 3406 engine, cab

1шт.

37

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - straight, 3/8 NPT x 7/8 inch thread, heater plumbing, 3406 engine, cab

1шт.

38

2-4010T3

HEATER TUBE,0.625" OD

TUBE - heater plumbing, 3406 engine, cab

1шт.

39

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 31 inch (Order 97252C1 and cut to length), plumbing, 3406 engine, cab

1шт.

42

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch, heater plumbing, 3406 engine, cab

4шт.

43

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 42 inch (Order 97252C1 and cut to length), plumbing, 3406 engine, cab

1шт.

44

2-4011T1

TUBE,0.625" OD

- heater plumbing, 3406 engine, cab

1шт.

45

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4 NPT x 7/8 inch thread, heater plumbing, 3406 engine, cab

1шт.

47

2-4009T1

BRACKET - clamp mounting, heater plumbing, 3406 engine, cab

1шт.

48

492-3108

WASHER - lock, 3/8 inch, heater plumbing, 3406 engine, cab

1шт.

49

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch, heater plumbing, 3406 engine, cab

1шт.

52

32-1000

CLAMP

- tube, heater plumbing, 3406 engine, cab

1шт.

53

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch, heater plumbing, 3406 engine, cab

1шт.

54

25846R11

NUT - hex, lock, 1/4 inch NC, heater plumbing, 3406 engine, cab

1шт.

55

90-6830T1

TUBE,3.69 mm L

- evacuation, precleaner, heater plumbing, 3406 engine, cab

1шт.

56

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, heater plumbing, 3406 engine, cab

3шт.

57

19-508

LOCK NUT

- hex, lock, 5/16 inch NC, heater plumbing, 3406 engine, cab

3шт.

58

31-2290

HOSE,1.00" ID x 84.00"

Evacuation, Order 31-1502T1, and Cut to Required Length 1.00" ID x 84.00"

1шт.

59

31-1348

CLAMP

- hose, heater plumbing, 3406 engine, cab

2шт.

60

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 to 2 inch, heater plumbing, 3406 engine, cab

2шт.
