Запчасти Case IH STEIGER (9-070) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

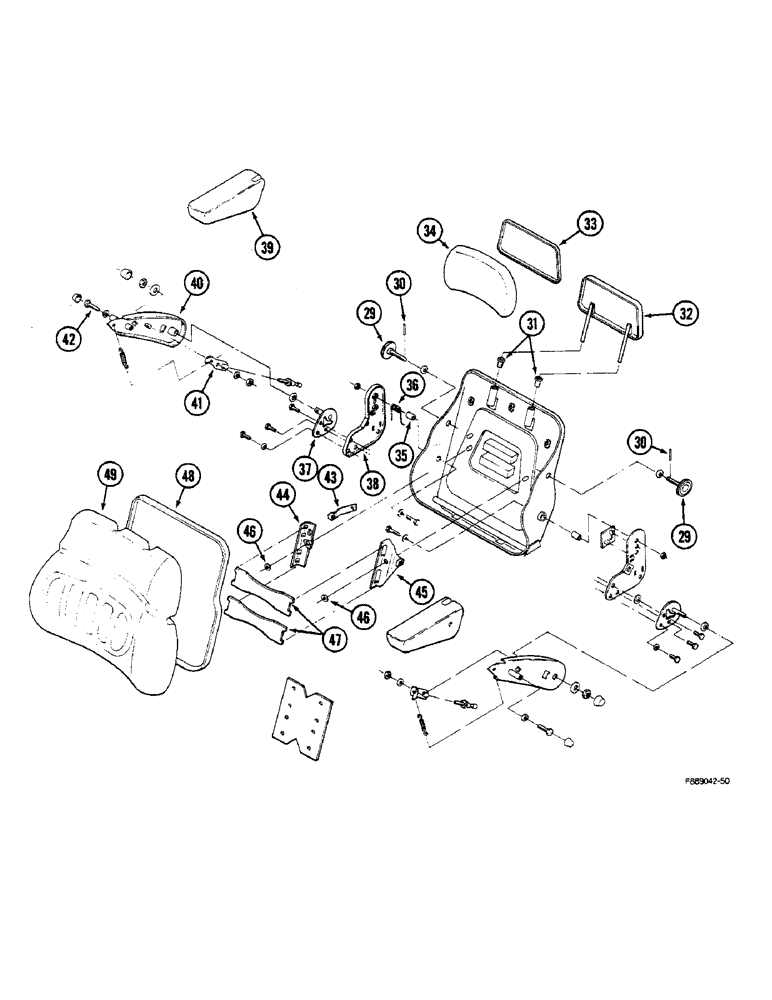

Схема запчастей Case IH STEIGER - (9-070) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
45
43
38
41
29
49
31
46
40
42
35
34
47
32
46
39
37
33
30
48
29
44
30
36

Артикул

Название

Примечание

Количество

29

60-3200T1

KNOB

- lumbar support (Continued from previous page)

2шт.

30

40-1176

PIN

- spring, M3 x 20 mm

2шт.

31

60-1669T1

BUSHING

- headrest support

2шт.

32

60-1672T1

SUPPORT

- backrest extension

1шт.

33

60-1642T1

SUPPORT

EXTRUSION - plastic

1шт.

34

60-5952T1

CUSHION

- headrest, gray cloth upholstery

1шт.

35

60-4850T1

SPACER

- armrest support mount

1шт.

36

60-4849T1

SPRING

- support mount

1шт.

37

60-3257T1

PLATE

- bearing, right

1шт.

38

60-4851T1

MOUNTING PARTS

MOUNT - armrest support, right

1шт.

39

60-3199T1

ARMREST

- right

1шт.

40

60-3195T1

SUPPORT

- armrest, right

1шт.

41

60-3196T1

RETAINER

- armrest adjustment, right

1шт.

42

40-1069

CAPSCREW,Hex, M10 x 1.5 x 45mm, Gr 8.8

BOLT - hex, M10 x 45 mm

1шт.

43

60-1695T1

BEARING

1шт.

44

60-1696T1

BRACKET

- angled

1шт.

45

60-1698T1

BRACKET

BEARING

1шт.

46

60-1697T1

RING, SNAP

RING - retainer

2шт.

47

60-1699T1

PLATE

- spring

2шт.

48

60-1641T1

SUPPORT

EXTRUSION - plastic

1шт.

49

60-5950T1

CUSHION

- seat back, gray cloth upholstery

1шт.

Выбрано товаров: 21
