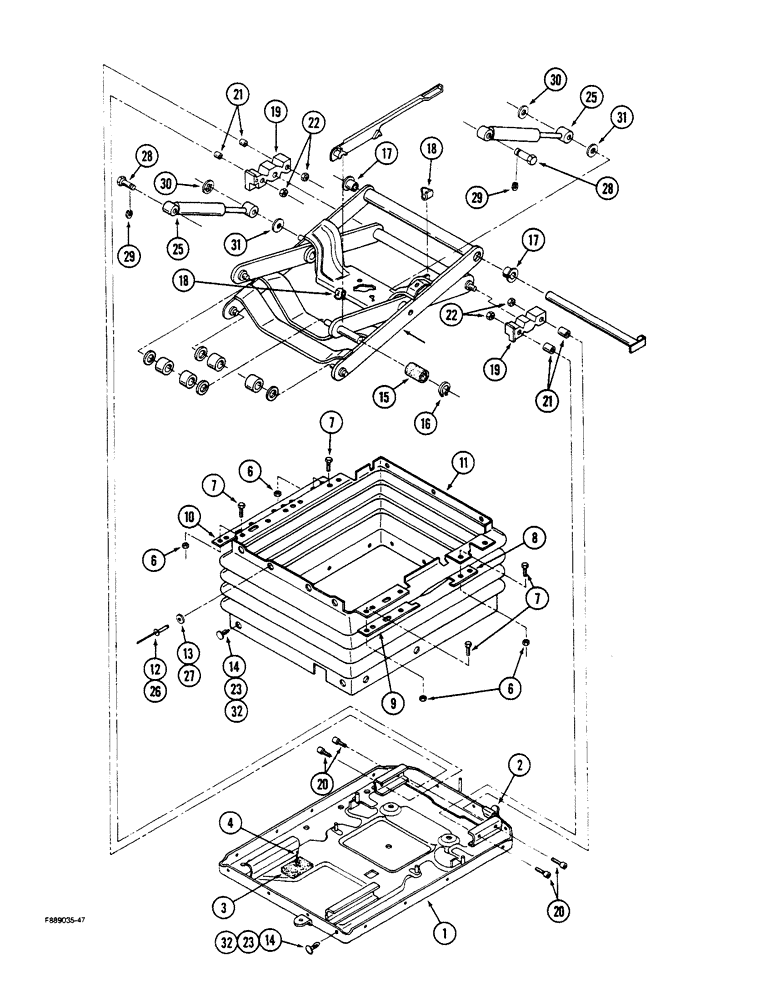

Запчасти Case IH STEIGER (9-056) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
60-5949T91
SEAT
ASSEMBLY - air suspension, gray cloth upholstery (Continued from previous page), Includes Ref: 1-4
1шт.
60-4902T91
MOUNTING PARTS
MOUNT ASSEMBLY - lower suspension
1шт.
1
NSS
NOT SOLD SEPARAT
MOUNT - lower suspension
1шт.
2
60-4881T1
CLIP,ELECTRICAL
CLIP - cable retainer
1шт.
3
60-4903T1
BUMPER
- suspension
1шт.
4
151-532
RIVET,Pop, 3/16" x .700"
- pop, 4.8 x 16.6 mm
1шт.
60-4911T91
BELLOWS
ASSEMBLY - suspension cover, Includes Ref: 6-13
1шт.
6
60-4845T1
NUT
- lock, M8
4шт.
7
40-1231
BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8
BOLT - hex, M8 x 16 mm
4шт.
8
60-4913T1
PLATE
STRIP - backup, boot
1шт.
9
60-4912T1
PLATE
STRIP - backup, boot
1шт.
10
60-1632T1
PLATE
STRIP - backup, boot
1шт.
11
NSS
NOT SOLD SEPARAT
BELLOWS - suspension cover
1шт.
12
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 x 1/4 inch
1шт.
13
19-699
WASHER,3/16"
- flat, 3/16 x 1/2 x 3/64 inch
1шт.
60-4907T91
ANCHOR
MOUNT ASSEMBLY - swing arm, Includes Ref; 14-18
1шт.
14
NSS
NOT SOLD SEPARAT
SCISSORS - suspension
1шт.
15
60-4905T1
BUMPER
- suspension
1шт.
16
60-4906T1
RING, SNAP
RING - snap, M12
1шт.
17
60-4904T1
FLANGED BEARING
BEARING - flanged
2шт.
18
60-4881T1
CLIP,ELECTRICAL
CLIP - cable retainer
3шт.
60-4910T91
BEARING ASSY
BLOCK KIT - bearing, Includes Ref: 19-23
1шт.
19
NSS
NOT SOLD SEPARAT
BLOCK - bearing
2шт.
20
40-1225
BOLT - socket head, M6 x 20 mm
4шт.
21
60-4908T1
SPACER
- bearing block
4шт.
22
40-1229
NUT,M6, Cl 8
- hex, M6
4шт.
23
60-1613T1
FASTENER
- snap, boot
25шт.
60-4893T91
SHOCK ABSORBER
ASSEMBLY - isolator, Includes Ref: 25-32
1шт.
25
NSS
NOT SOLD SEPARAT
SHOCK ABSORBER - isolator
2шт.
26
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 x 1/4 inch
1шт.
27
19-699
WASHER,3/16"
- flat, 3/16 x 1/2 x 3/64 inch
1шт.
28
60-3233T1
PIN
- shock absorber
2шт.
29
40-1182
CIRCLIP,M6
RING - snap, M5
2шт.
30
60-1697T1
RING, SNAP
RING - push-on retaining
2шт.
31
40-1007
WASHER
- flat, M8
2шт.
32
60-1613T1
FASTENER
- snap, boot
25шт.
