Запчасти Case IH STEIGER (9-052) - SEAT MOUNTING, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

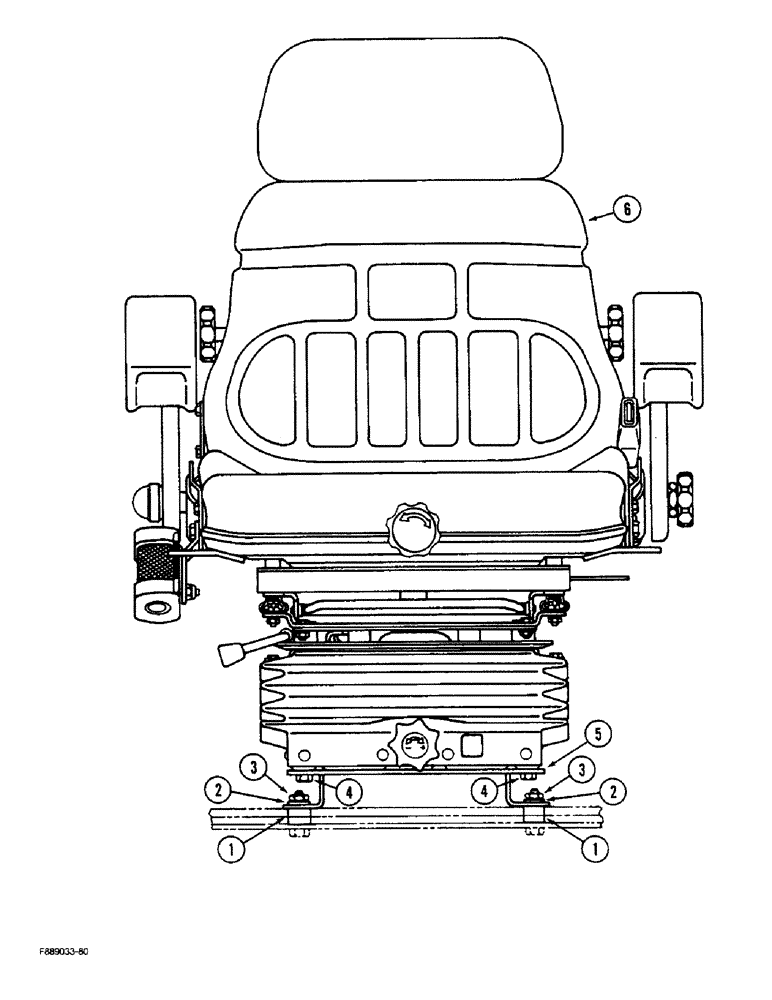

Схема запчастей Case IH STEIGER - (9-052) - SEAT MOUNTING, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
4
2
6
2
1
3
4
1
3
5

Артикул

Название

Примечание

Количество

1

60-2286T1

SPACER

- seat mount to floor plate

4шт.

2

19-82

LOCK NUT

- lock, 1/2 inch NC

4шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

BOLT - hex, M8 x 1.25 x 20 mm

4шт.

4

60-4789T2

ANCHOR

MOUNT - seal

1шт.

5

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 7/64 inch

4шт.

6

60-5949T91

SEAT

ASSEMBLY - air suspension, gray cloth upholstery

1шт.

Выбрано товаров: 6
