Запчасти Case IH STEIGER (9-028) - ROPS (09) - CHASSIS/ATTACHMENTS

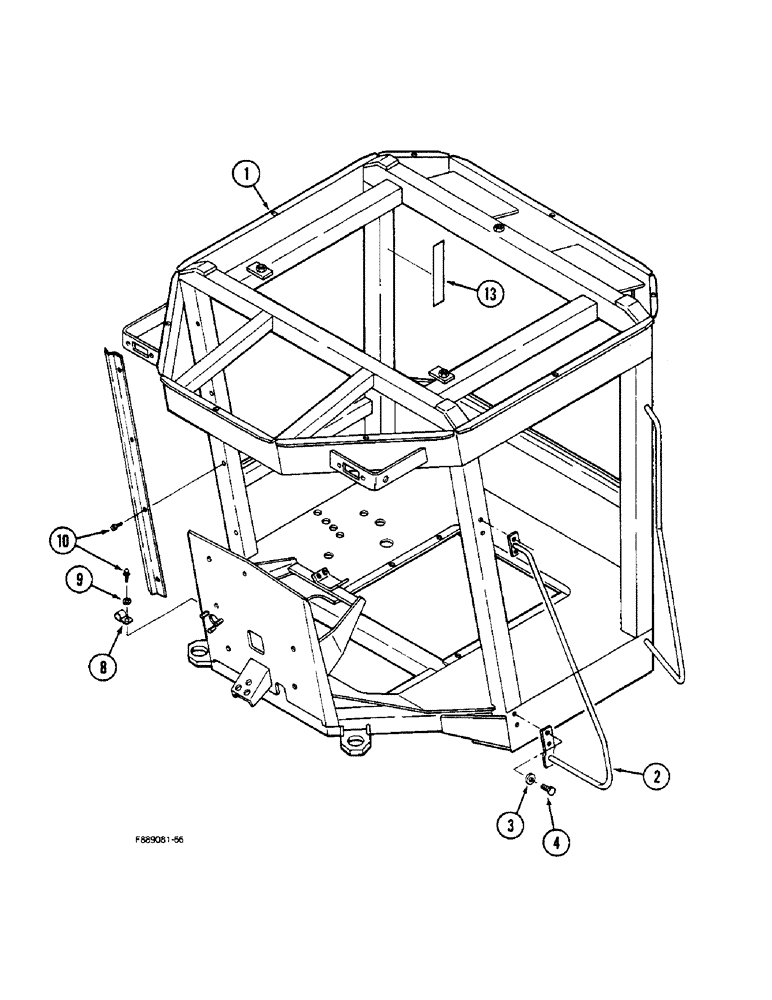

Схема запчастей Case IH STEIGER - (9-028) - ROPS (09) - CHASSIS/ATTACHMENTS
8
2
10
13
4
3
1
9

Артикул

Название

Примечание

Количество

1

60-5787T3

CAB

FRAME - protective structure

1шт.

2

60-5778T1

HANDLE

- side grab, Start Serial: .JCB0002008

1шт.

3

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

8

31-1349

MOUNTING CLIP

CLAMP - wire harness

2шт.

9

19-195

WASHER,#10

- flat, 3/16 x 9/16 x 3/64 inch

2шт.

10

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

6шт.

13

2-7393T1

DECAL

- safety

1шт.

Выбрано товаров: 8
