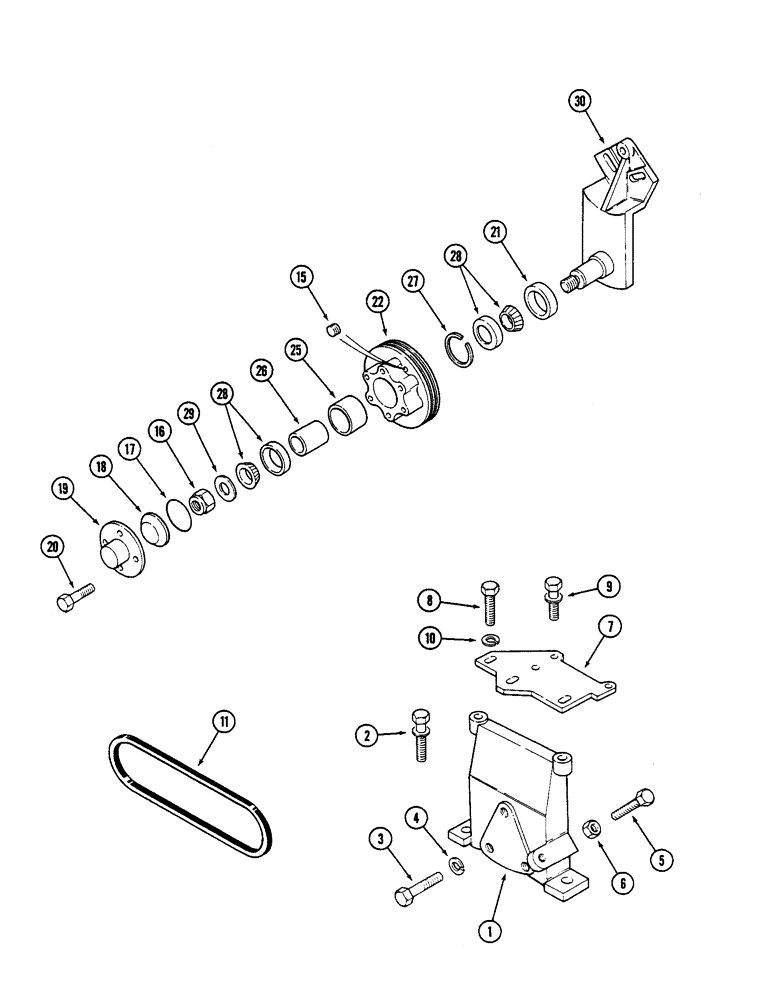

Запчасти Case IH STEIGER (2-08) - FAN DRIVE, 855 ENGINE (02) - ENGINE

1

208829

BRACKET

- fan

1шт.

2

3015282

CAP

BOLT - hex with washer, 7/16 NC x 1-3/16 inch

2шт.

3

S172-A

BOLT

BOLT - hex, 1/2 NC x 1-3/4 inch

3шт.

4

117267

WASHER

- lock, 1/2 inch

3шт.

5

NLS

NO LONGER SERVICED

BOLT - hex, 1/2 NC x 2-3/8 inch

1шт.

6

25-168

NUT,1/2"-13, G5, Hvy

- heavy hex, 1/2 inch NC

1шт.

Order this part from J.I. Case.

1шт.

7

217034

BRACE

- fan bracket

1шт.

8

3019574

CAP

BOLT - hex with washer, 1/2 NF x 1-1/2 inch

2шт.

9

S176

BOLT

BOLT - hex, 1/2 NC x 5 inch

2шт.

10

S608

WASHER, LOCK

WASHER - lock, 1/2 inch

3шт.

11

2-4432T1

SET OF BELTS

V-Belt

2шт.

Order this part from J.I. Case.

1шт.

3012658

HUB

ASSEMBLY - fan, Includes Ref: 15-30

1шт.

15

S911-B

PLUG

- pipe, 1/8-27 NPT

2шт.

16

142176

KIT

NUT - lock

1шт.

17

145551

HOSE

SEAL - cover

1шт.

18

200310

COVER

- fan hub

1шт.

19

210888

COVER

- protective

1шт.

20

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

Order this part from J.I. Case.

1шт.

21

200307

OIL

SEAL - oil

1шт.

22

211865

DECAL

PULLEY - fan

1шт.

3005369

BEARING ASSY

BEARING ASSEMBLY - fan hub (Order Components), Includes Ref: 25-28

1шт.

25

217011

SPACER

- bearing

1шт.

26

217008

SPACER

- bearing

1шт.

27

3001280

RING, SNAP

RING - retaining

1шт.

28

3001281

BEARING, ROLLER

BEARING - roller

2шт.

29

3012467

WASHER

- flat

1шт.

30

3053366

SPINDLE

- fan

1шт.
