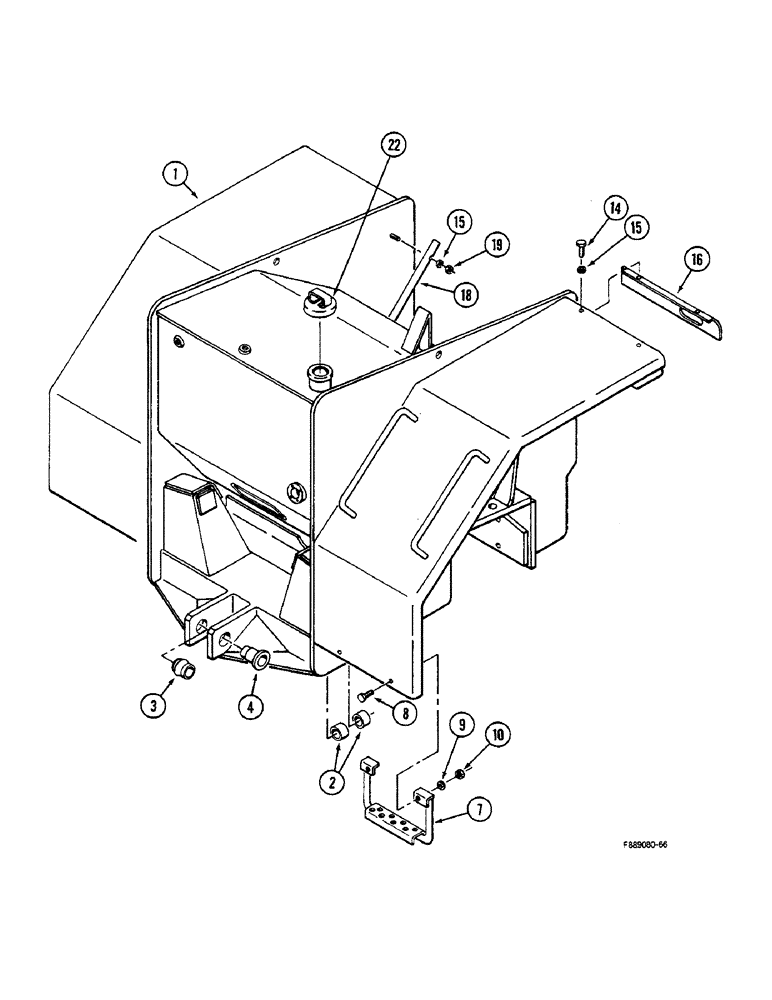

Запчасти Case IH STEIGER (9-024) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

70-4950T1

FRAME ASSY

FRAME - rear

1шт.

2

70-1242T1

RING RACE

BUSHING - frame hinge, rear

2шт.

3

70-1208T1

BUSHING

- frame hinge, front, short

1шт.

4

70-1210T1

BUSHING,57.23mm ID x 76.2mm OD x 77.72mm L

- frame hinge, front, long

1шт.

7

2-4071T1

STEP

- rear frame, bolt on

1шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

9

70-3015T1

WASHER - flat, clipped

2шт.

10

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

14

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

- hex, 1/4 NC x 1/2 inch

4шт.

15

495-21031

WASHER,1/4"

- flat, 1/4 x 47/64 x 1/16 inch

8шт.

16

70-5185T1

MOUNTING PARTS

PLATE - light mount, LH

1шт.

16

70-5186T1

ANCHOR

PLATE - light mount, RH

1шт.

18

51-366

PROTECTOR

GUARD - wire

2шт.

19

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

22

2-3679T1

FILLER CAP

CAP - fuel fill

1шт.
