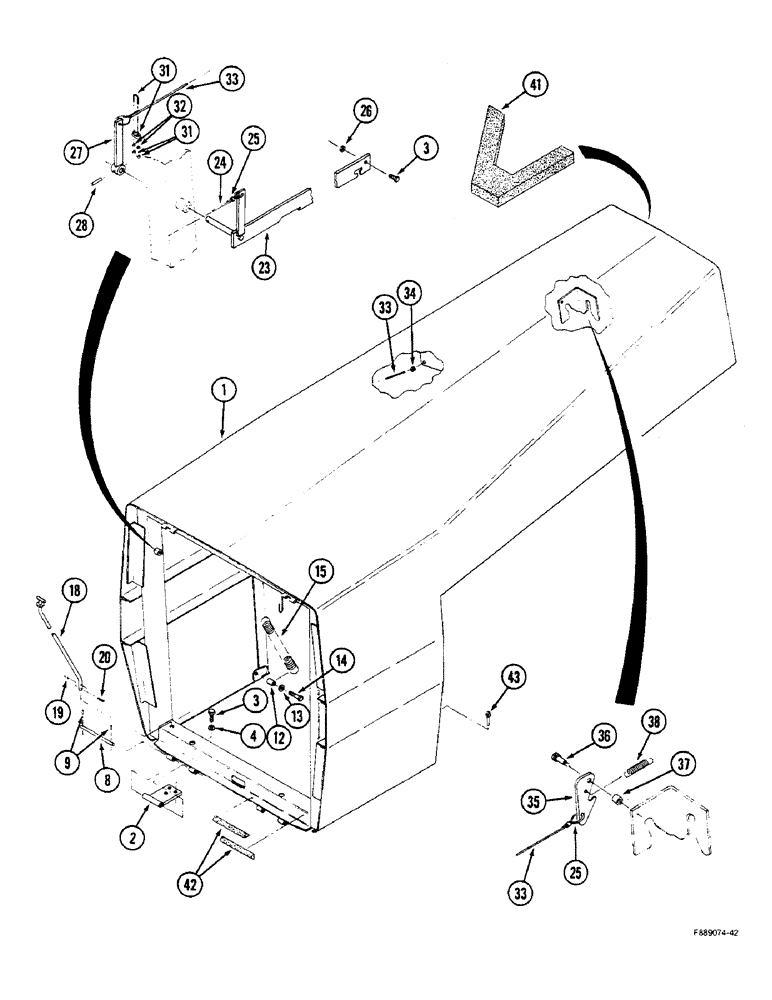

Запчасти Case IH STEIGER (9-016) - HOOD (09) - CHASSIS/ATTACHMENTS

1

70-5150T1

COWL

HOOD - engine cover

1шт.

2

70-4263T1

HINGE

- hood

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

7шт.

4

19-1059

WASHER

- flat, hardened, 3/8 x 1-1/4 x 7/64 inch

6шт.

8

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hinge

2шт.

9

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

4шт.

12

2-8012T1

SPACER

- spring retainer

2шт.

13

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat, 1/2 x 1-3/4 x 1/8 inch

2шт.

14

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

15

19-6261

SPRING

- hood opening assist

2шт.

18

70-5271T1

STEM

ROD - open grille retaining

1шт.

19

19-6135

LOCK PIN,7/32" x 1 1/8", Slotted

Pin, 7/32" x 1 1/8", Slotted

1шт.

20

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

23

70-5239T1

LATCH

- open hood retaining

1шт.

24

60-5882T1

ROPE

- wire, latch actuating

1шт.

25

70-5269T1

FERRULE

- wire rope

2шт.

26

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

27

60-4928T1

CONTROL LEVER

LEVER - latch actuating

1шт.

28

19-505

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

31

70-5275T1

MOUNTING CLIP

CLAMP ASSEMBLY - wire rope

1шт.

32

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

33

60-5883T1

ROPE

- wire, latch actuating (Order 70-5259T1 and, Serial Range: cut-length)

1шт.

34

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BEARING - wire rope

2шт.

35

70-2805T1

LATCH

- hood locking

1шт.

36

19-6086

SCREW,Shldr, Hex Skt, 3/8" - 16 x 3/4"

BOLT - shouldered

1шт.

37

70-2806T1

SPACER

- latch

1шт.

38

11-8

SPRING

- latch return

1шт.

41

70-4519T1

FOAM

- rear hood seal

1шт.

42

70-5263T1

SEAL

FOAM - seal, grille opening, 43 inch

5шт.

43

19-5774

PIN

- open hood retaining, 3/8 x 2-1/2 inch

1шт.
