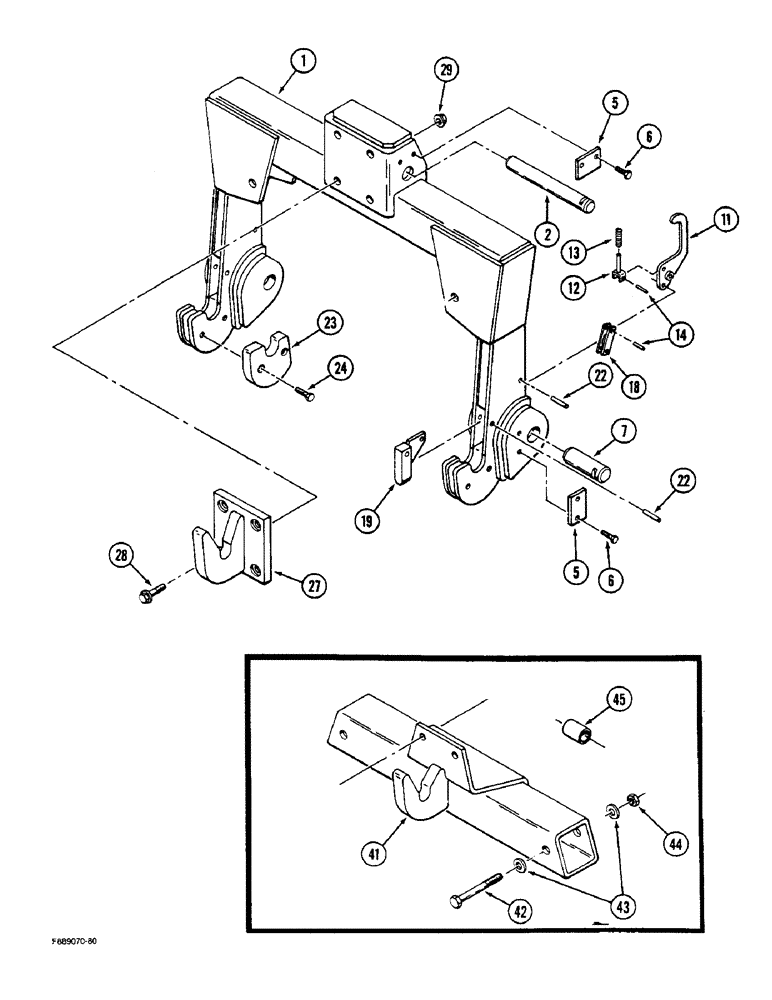

Запчасти Case IH STEIGER (9-008) - QUICK HITCH COUPLER, CATEGORY IVN OR III (09) - CHASSIS/ATTACHMENTS

35-1470T91

FAST HITCH

KIT - quick hitch coupler, Category IVN (Machinery item), Includes Ref: 1-29

1шт.

1

70-1919T2

HITCH ASSY, TRAILER

HITCH - quick attachment

1шт.

2

70-1895T1

PIN

- hitch, upper

1шт.

5

70-3082T2

LARGE PLATE

BLOCK - pin retainer

3шт.

6

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

6шт.

7

70-1894T1

PIN

- hitch, lower

2шт.

11

70-1880T1

LATCH

HANDLE - hitch release

2шт.

12

70-1884T1

PITMAN

LINK - spring return

2шт.

13

2-4345T1

SPRING

- return, handle

2шт.

14

9416325

LOCK PIN,5/16" x 1 1/8", Slotted

Pin, 5/16" x 1 1/8", Slotted

6шт.

18

70-1887T1

PITMAN

LINKAGE - connecting, Serial Range: handle-catch

2шт.

19

70-1890T2

STOP

CATCH - hitch release

2шт.

22

9411887

PIN,1/2" x 2 1/2", Coiled

4шт.

23

70-1920T1

CAP

- spacer, RH,(Category IVN)

1шт.

23

70-1921T1

CAP

- spacer, LH,(Category IVN)

1шт.

24

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 UNC x 1-1/2 inch

4шт.

27

70-1869T1

HOOK

- quick attchment, (Category IVN)

1шт.

28

19-5787

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

- flanged, 3/4 NC x 2-1/2 inch, Grade 8

4шт.

29

19-5727

NUT,Flg, 3/4"-10, G8

- flanged, lock, 3/4 inch NC

4шт.

35-1376T91

HOOK

KIT - conversion, Category IVN to Category III (Machinery item), Includes Ref: 41-45

1шт.

41

70-1913T1

HOOK

- quick attachment, Category III

1шт.

42

9430344

BOLT,Hex, 1" - 8 x 7 1/2", Gr 8

- hex, 1 NC x 7-1/2 inch, Grade 8

2шт.

43

19-5739

WASHER

- flat, 1 x 2 x 5/32 inch

4шт.

44

19-610

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

45

2-5306T1

SPACER

- conversion, Category III

2шт.
