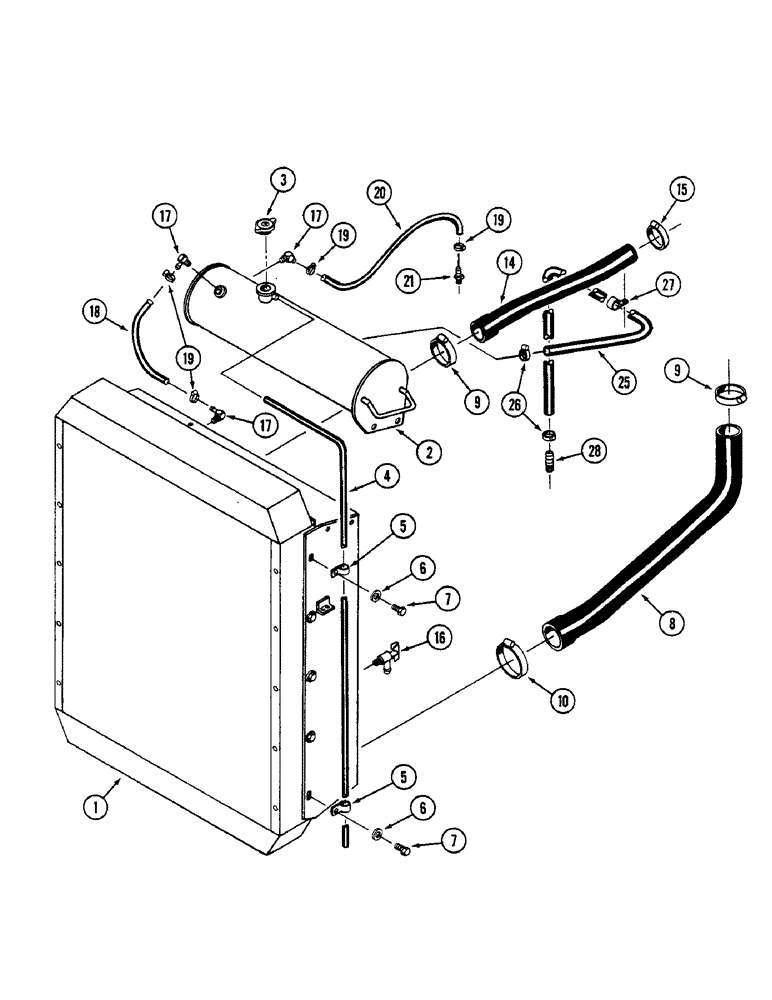

Запчасти Case IH STEIGER (2-06) - RADIATOR AND ATTACHING PARTS, 855 ENGINE (02) - ENGINE

1

90-6782T1

RADIATOR

ASSEMBLY - cooling system

1шт.

2

90-6817T1

TANK

- radiator fill

1шт.

3

F23120

CAP

- radiator

1шт.

4

31-1260

HOSE,0.25" ID x 57.00"

Overflow 0.25" ID x 57.00"

1шт.

5

31-2173

CLIP

CLAMP - hose

2шт.

6

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

2шт.

7

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

- hex, 1/4 NC x 1/2 inch

2шт.

8

90-6821T1

RADIATOR HOSE,2.50" ID, 3.00" ID x 26.37", SAE 20R4

Lower 2.50" ID, 3.00" ID x 26.37", SAE 20R4

1шт.

9

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP - hose, 2 to 3 inch

2шт.

10

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4 inch

1шт.

14

90-6822T1

RADIATOR HOSE,2.25" ID, 2.50" ID x 20.64", SAE 20R4

Upper 2.25" ID, 2.50" ID x 20.64", SAE 20R4

1шт.

15

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

1шт.

16

31-159

COCK, DRAIN

VALVE - drain, radiator, 90 degree

1шт.

17

31-2737

ELBOW

CONNECTOR - 90 degree, 1/8 NPT x 1/4 inch

3шт.

18

31-2781

HOSE,6.4 mm ID x 146.10 mm

Tank to Radiator 6.4 mm ID x 146.10 mm

1шт.

19

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, 7/32 to 5/8 inch

4шт.

20

31-2742

HOSE,6.4 mm ID x 553.40 mm

Tank to Engine; Order A21561X, and Cut to Required Length 6.4 mm ID x 553.40 mm

1шт.

21

31-615

ROD, CONNECTING

CONNECTOR - straight, 1/8 NPT x 1/4 inch

1шт.

25

31-2791

HOSE,1.00" ID x 33.00"

Tank to Engine; Order 31-1502, and Cut to Required Length 1.00" ID x 33.00"

1шт.

26

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

2шт.

27

1-2191

MOUNTING CLIP

CLAMP - hose

1шт.

28

31-248

FITTING

CONNECTOR - straight, 1 NPT x 1 inch

1шт.
