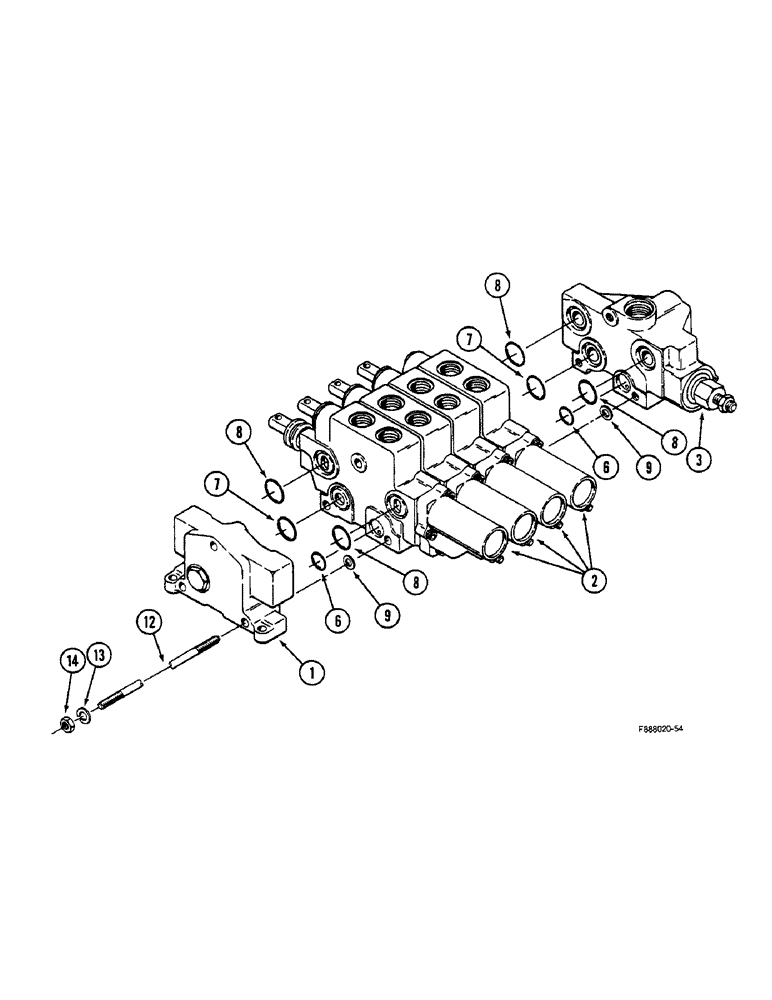

Запчасти Case IH STEIGER (8-44) - HYDRAULIC REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

50-2949T92

VALVE, CONTROL

VALVE ASSEMBLY - remote, three spool, Includes Ref: 1-13

1шт.

50-2950T92

VALVE

ASSEMBLY - remote, four spool, Includes Ref: 1-13

1шт.

1

A52403

BODY

COVER - end

1шт.

2

REF

INSTRUCTION

BODY ASSEMBLY - valve, float (See Figures: 8-46, 8-48)

1шт.

3

REF

INSTRUCTION

BODY ASSEMBLY - inlet, with priority valve (See Figure: 8-50)

1шт.

2-3792T1

SEAL KIT

SEAL KIT - valve section, Includes Ref: 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

3шт.

12

50-2658T1

STUD

- valve, three spool remote

3шт.

12

50-2659T1

STUD

- valve, four spool remote

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

- hex, 3/8 inch NC

3шт.
