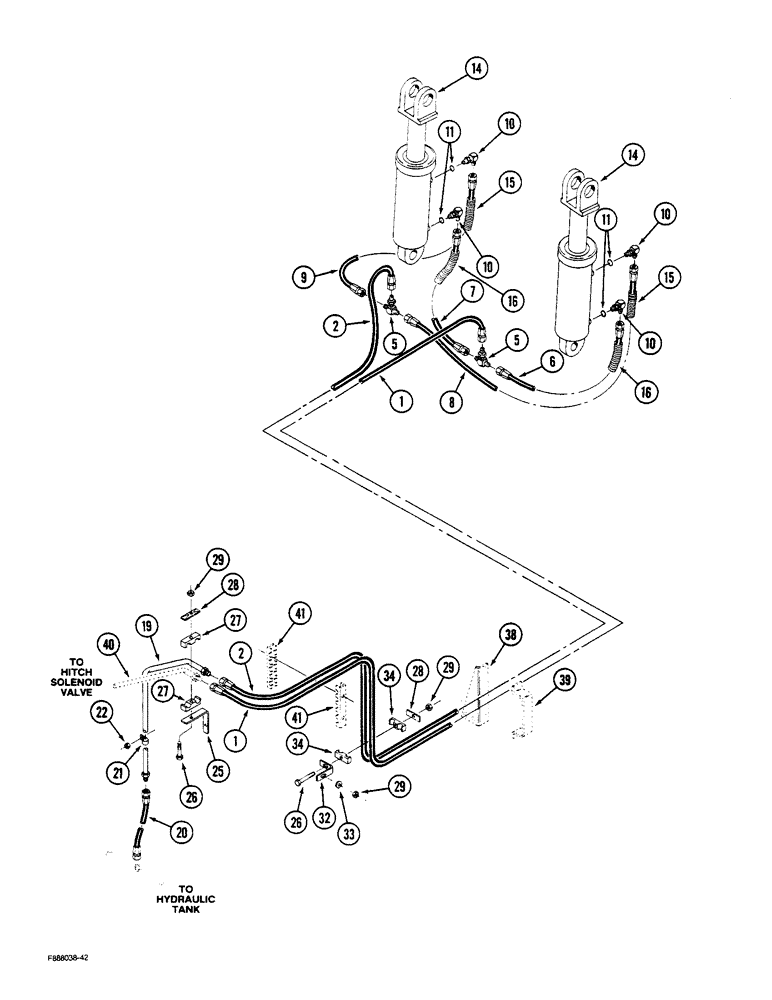

Запчасти Case IH STEIGER (8-28) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDER AND LINES, P.I.N JCB0002092 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
31-2810
HOSE,0.63" ID x 117.00"
Tube to Tee, Cylinder Pressure 0.63" ID x 117.00"
1шт.
2
31-2811
HOSE,0.63" ID x 130.00"
Tube to Tee, Cylinder Drain 0.63" ID x 130.00"
1шт.
6
31-1795
HOSE
- tee to cylinder, lift, LH, 30 inch
1шт.
7
31-1959
HOSE
- tee to cylinder, lift, RH, 54-1/2 inch
1шт.
8
31-1958
HOSE
- tee to cylinder, drain, LH, 62 inch
1шт.
9
31-1957
HOSE
- tee to cylinder, drain, RH, 39 inch
1шт.
10
31-324
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
- 90 degree, 3/4 x 3/4 inch thread, Includes Ref: 11
4шт.
11
31-1335
O-RING,8-1, 90 Duro, .644" ID x .087" Thk
- 41/64 x 3/32 inch
4шт.
14
REF
INSTRUCTION
CYLINDER ASSEMBLY - three point hitch (See Figure: 8-34)
2шт.
15
50-2741T1
CONDUIT
GUARD - hose protector, 30 inch
2шт.
16
50-2962T1
CONDUIT
GUARD - hose, 23 inch (Order S119717 and, Serial Range: cut-length)
2шт.
19
50-3014T1
HYD TUBE
TUBE - hose to hose, cylinder drain
1шт.
20
31-2774
HOSE ASSY.
HOSE - tube to drain tube
1шт.
21
31-1776
MOUNTING CLIP
CLAMP - tube
1шт.
22
19-78
SPECIAL NUT,3/8"-16, G5
- hex, 3/8 inch NC
1шт.
25
50-3018T1
BRACKET
- mounting, clamp
1шт.
26
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
- hex, 5/16 NC x 2-1/2 inch
2шт.
27
50-2551T1
CLAMP
- tube, split halves
2шт.
28
50-2533T1
PLATE
COVER - clamp
2шт.
29
19-77
NUT,5/16"-18, G5
- hex, 5/16 inch NC
3шт.
32
50-3017T1
SUPPORT
BRACKET - mounting, clamp
1шт.
33
19-700
WASHER,5/16"
- flat, 5/16 x 7/8 x 5/64 inch
1шт.
34
50-2534T1
CLAMP
- hose, split halves
2шт.
38
REF
INSTRUCTION
BRACKET - hose mounting (See Figure: 8-10)
1шт.
39
REF
INSTRUCTION
BRACKET - hose clamping (See Figure: 8-10)
1шт.
40
REF
INSTRUCTION
TUBE - solenoid valve (See Figure: 8-24)
1шт.
41
REF
INSTRUCTION
CLAMP - hose (See Figure: 8-10)
4шт.
Выбрано товаров: 28
