Запчасти Case IH STEIGER (8-24) - THREE POINT HITCH HYDRAULICS (08) - HYDRAULICS

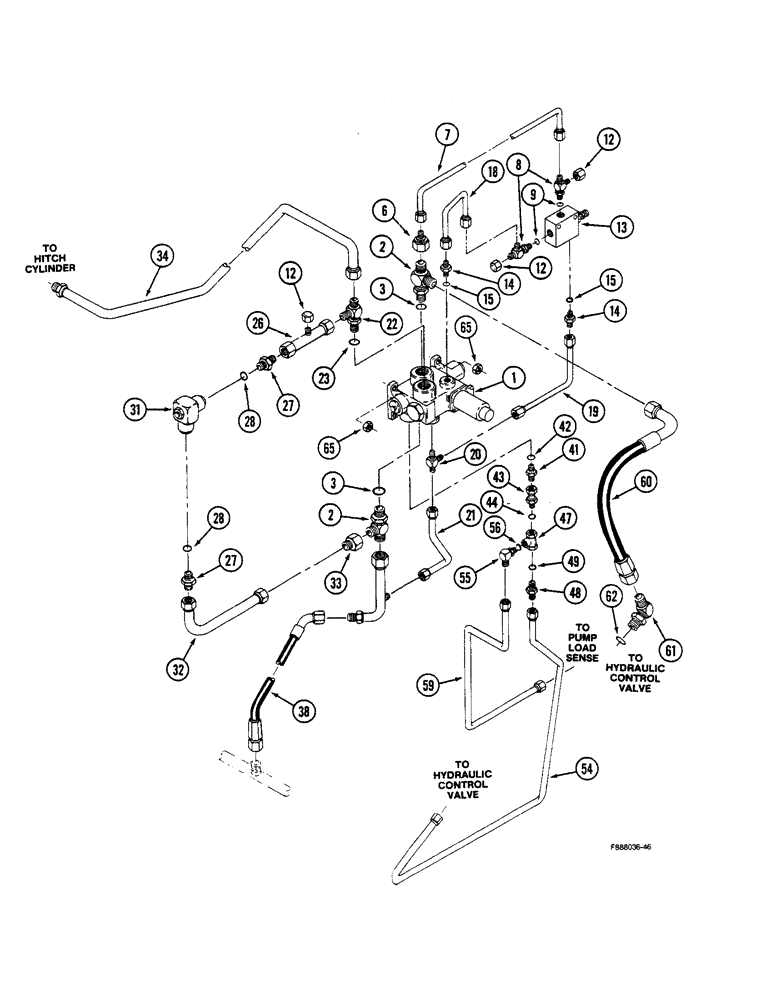

Схема запчастей Case IH STEIGER - (8-24) - THREE POINT HITCH HYDRAULICS (08) - HYDRAULICS
59
54
33
31
2
41
19
43
27
12
27
12
60
7
1
62
20
3
42
14
6
48
49
14
15
12
65
9
18
28
32
26
55
61
15
3
34
38
23
44
22
21
56
13
65
2
47
28
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, hitch (See Figure: 8-36)

1шт.

2

18-606

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring run

- adjustable, 1-1/16 x 1-1/16 x 1-1/16 inch thread, Includes Ref: 3

2шт.

3

31-344

O-RING,12-1, 90 Duro, .924 ID x .116" Thk

- 59/64 x 1/8 inch

2шт.

6

31-1755

REDUCER,37º, 1 1/16"-12, Fem x 9/16"-18 Male

CONNECTOR - straight, 1-1/16 x 9/16 inch thread

1шт.

7

50-2546T1

TUBE

-, Serial Range: valve-valve

1шт.

8

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

- adjustable, 9/16 x 9/16 x 9/16 inch thread, Includes Ref: 9

2шт.

9

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

12

9403371

CAP,37 Degree, 9/16"-18

- tube, 9/16 inch thread

3шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - pressure reducing (See Figure: 8-38)

1шт.

14

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 x 9/16 inch thread, Includes Ref: 15

2шт.

15

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

18

50-2545T1

TUBE

-, Serial Range: valve-valve

1шт.

19

50-2544T1

TUBE

-, Serial Range: valve-valve

1шт.

20

31-332

TEE,9/16"-18, 37 Degree x 3/8"-18, NPTF Run

- adjustable, 3/8 NPT x 9/16 x 9/16 inch thread

1шт.

21

50-3028T1

TUBE ASSY.

TUBE -, Serial Range: valve-tube

1шт.

22

18-586

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

- adjustable, 7/8 x 7/8 x 7/8 inch thread, Includes Ref: 23

1шт.

23

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

26

50-2863T1

TUBE

- valve to relief valve

1шт.

27

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 x 7/8 inch thread, Includes Ref: 28

2шт.

28

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

2шт.

31

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure: 8-38)

1шт.

32

50-2864T1

TUBE

- relief, Serial Range: valve-valve

1шт.

33

60-66

REDUCER

CONNECTOR - straight, 1-1/16 x 7/8 inch thread

1шт.

34

50-3013T1

HYD TUBE

TUBE - valve to three point hitch cylinder hose

1шт.

38

31-2773

HOSE ASSY.

HOSE - valve to drain tube

1шт.

41

31-377

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 1/4 NPT x 9/16 inch thread

1шт.

42

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

31-2146

CONNECTING ROD

CONNECTOR - staight, 1/4 NPT x 7/16 inch thread, Includes Ref: 44

1шт.

44

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

47

31-1778

VALVE

- shuttle

1шт.

48

31-1751

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 x 9/16 inch thread, Includes Ref: 49

1шт.

49

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

54

50-3044T1

HYD TUBE

TUBE - shuttle valve to hydraulic control valve

1шт.

55

31-1753

ELBOW,90 Degree, 9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 x 9/16 inch thread

1шт.

56

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

59

50-3043T1

HYD TUBE

TUBE - shuttle valve to hydraulic pump load sense hose

1шт.

60

31-2708

ADAPTER,90 Degree, 37 Degree Fl, 1 5/8"-12 Male x 1 5/8"-12 Fem

HOSE - valve to hydraulic control valve

1шт.

61

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree, 1-1/16 x 1-1/16 inch thread, Includes Ref: 62

1шт.

62

31-344

O-RING,12-1, 90 Duro, .924 ID x .116" Thk

- 59/64 x 1/16 inch

1шт.

65

19-78

SPECIAL NUT,3/8"-16, G5

- hex, 3/8 inch NC

3шт.

Выбрано товаров: 40
