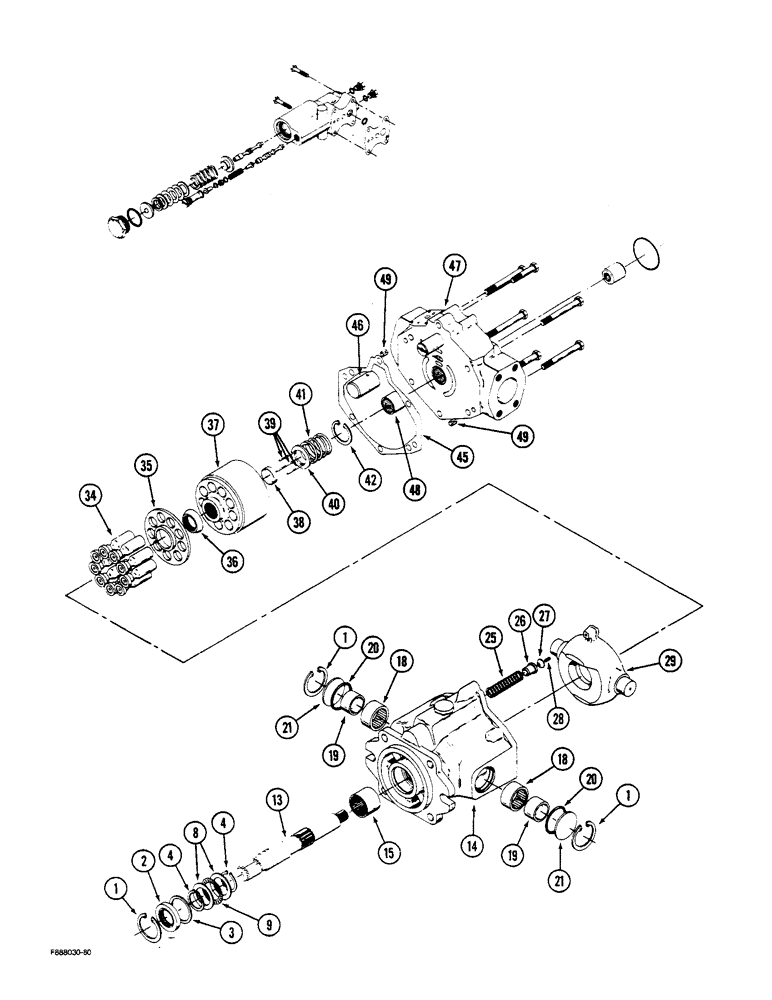

Запчасти Case IH STEIGER (8-12) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-1452T92
PUMP
ASSEMBLY - piston, Includes Ref: 1-49
1шт.
1
19-6014
SNAP RING
RING - snap
3шт.
Included in Seal Kit, 50-1802T1.
1шт.
2
50-1779T1
SEAL
- shaft, drive
1шт.
Included in Seal Kit, 50-1802T1.
1шт.
3
50-1780T1
WASHER
- flat
1шт.
4
19-6015
WASHER
RING - snap
2шт.
Included in Seal Kit, 50-1802T1.
1шт.
8
50-1782T1
THRUST WASHER
WASHER - bearing, thrust
2шт.
9
50-1783T1
THRUST BEARING
-thrust
1шт.
13
50-1778T1
SHAFT
- drive, pump
1шт.
14
50-1785T91
HOUSING
ASSEMBLY - pump, Includes Ref: 15
1шт.
15
50-1786T1
ROLLER BEARING
- roller
1шт.
18
50-1787T1
NEEDLE BEARING
- roller
2шт.
19
50-1788T1
RACE
- inner, bearing
2шт.
20
50-1789T1
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
-trunnion cover
2шт.
Included in Seal Kit, 50-1802T1.
1шт.
21
50-1790T1
COVER
- trunnion
2шт.
25
50-1791T1
SPRING
- camplate
1шт.
26
50-1792T1
COLLAR
- spring
1шт.
27
50-1793T1
BUTTON
- pivot
1шт.
28
455160
LOCK PIN,3/16" x 1/2", Slotted
Pin, 3/16" x 1/2", Slotted
1шт.
29
50-1795T1
PLATE
- cam
1шт.
50-1796T1
KIT
ROTATING KIT - piston, Includes Ref: 34-42
1шт.
34
NSS
NOT SOLD SEPARAT
PISTON ASSEMBLY - pump
9шт.
35
NSS
NOT SOLD SEPARAT
PLATE - shoe
1шт.
36
NSS
NOT SOLD SEPARAT
WASHER - spherical
1шт.
37
NSS
NOT SOLD SEPARAT
BLOCK - cylinder, piston
1шт.
38
NSS
NOT SOLD SEPARAT
RETAINER - pin
1шт.
39
NSS
NOT SOLD SEPARAT
PIN - block
3шт.
40
NSS
NOT SOLD SEPARAT
WASHER -spring
1шт.
41
NSS
NOT SOLD SEPARAT
SPRING - block
1шт.
42
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
45
50-1797T1
GASKET
- housing
1шт.
Included in Seal Kit, 50-1802T1.
1шт.
46
50-1798T1
COLLAR
PISTON - control, cam plate
1шт.
50-2963T91
BACK PLATE
PLATE ASSEMBLY- back, Includes Ref: 47-49
1шт.
47
NSS
NOT SOLD SEPARAT
PLATE - back
1шт.
48
50-1800T1
NEEDLE BEARING
roller
1шт.
49
50-1801T1
DOWEL
PIN - dowel
2шт.
Выбрано товаров: 40
