Запчасти Case IH STEIGER (7-10) - BRAKE CALIPER ASSEMBLY (07) - BRAKES

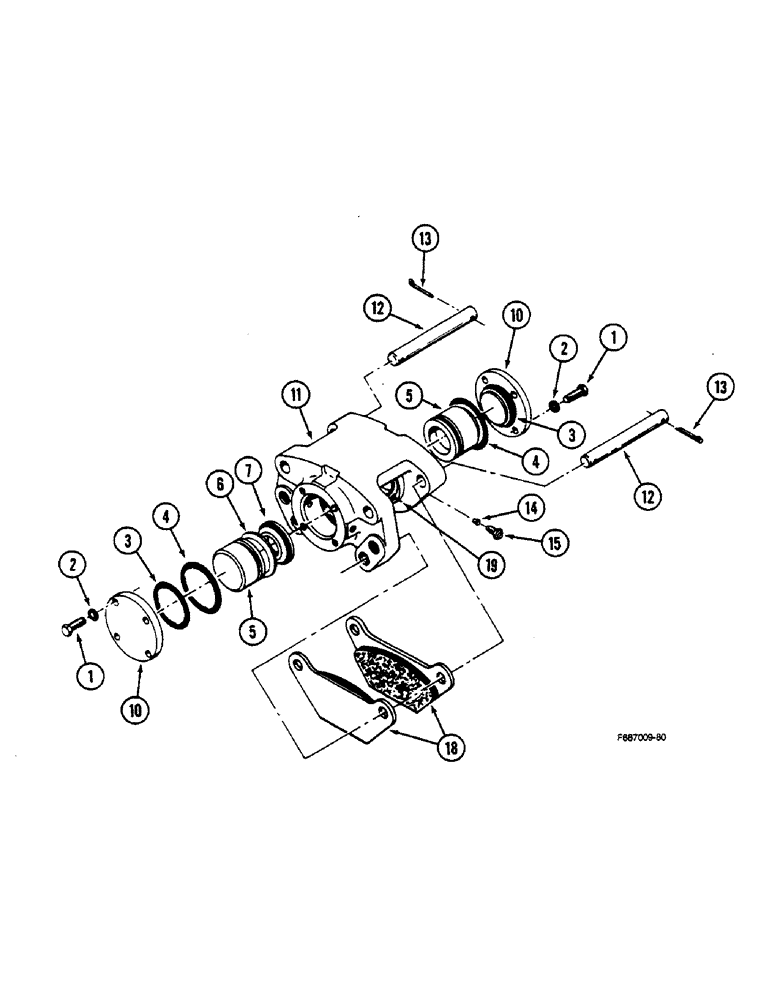

Схема запчастей Case IH STEIGER - (7-10) - BRAKE CALIPER ASSEMBLY (07) - BRAKES
3
4
7
11
13
2
4
19
14
3
8
10
18
5
13
15
12
12
1
1
10
2
5

Артикул

Название

Примечание

Количество

90-4070T91

CALIPER

ASSEMBLY - brake (Without park brake), Includes Ref: 1-19

1шт.

1

90-3445T1

SCREW,Hex, 3/8" - 16 x 1"

BOLT - hex

8шт.

2

19-117

LOCK WASHER,3/8"

3/8"

8шт.

3

90-3479T1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

O-RING - end cap

2шт.

4

A46968

SEAL

- piston

2шт.

5

90-3463T1

PISTON

- caliper

2шт.

6

A46960

RUBBER INSULATOR

INSULATOR - piston

2шт.

7

90-3461T1

RETAINER

- insulator

2шт.

10

90-3464T1

CAP

- end, caliper

2шт.

11

90-3442T1

HOUSING

- caliper, brake

1шт.

12

A46971

PIN

- brake pad

2шт.

13

323-1

COTTER PIN,5/32" x 1 1/4"

PIN - cotter, 1/8 x 1-1/2 inch

4шт.

14

90-3459T1

INSERT

SEAT - bleeder screw insert

4шт.

15

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

18

A46966

BRAKE LINING

PAD - brake

2шт.

19

A46969

BELLOWS

BOOT - dust

2шт.

Выбрано товаров: 16
