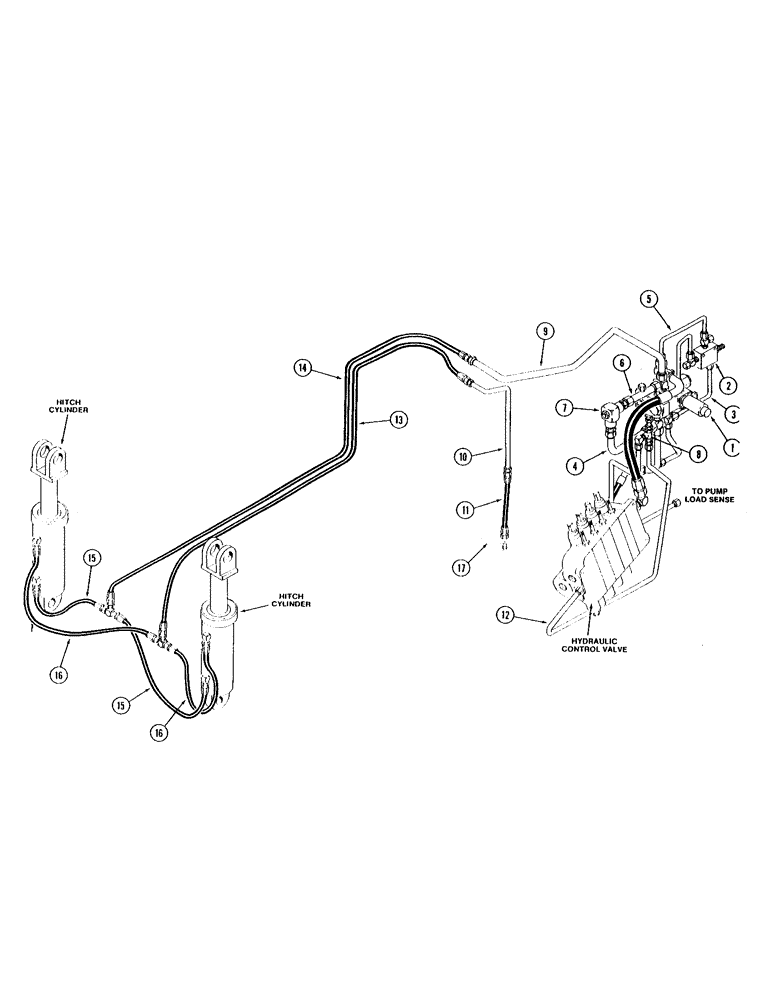

Запчасти Case IH STEIGER (1-18) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Hitch Solenoid Valve, Page 8-37

1шт.

2

Pressure Reducing Valve, Page 8-39

1шт.

3

Valve to Valve Tube, Page 8-25

1шт.

4

Relief Valve to Valve Tube, Page 8-25

1шт.

5

Valve to Valve Tube, Page 8-25

1шт.

6

Valve to Relief Valve Tube, Page 8-25

1шт.

7

Relief Valve, Page 8-39

1шт.

8

Shuttle Valve, Page 8-25

1шт.

9

Valve to Hitch Cylinder Tube, Page 8-25

1шт.

10

Cylinder Drain Tube, Page 8-27, 8-29

1шт.

11

Cylinder Drain Hose, Page 8-27, 8-29

1шт.

12

Shuttle Valve to Control Valve Tube, Page 8-25

1шт.

13

Cylinder Drain Hose, Page 8-27, 8-29

1шт.

14

Cylinder Pressure Hose, Page 8-27, 8-29

1шт.

15

Cylinder Lift Hose, Page 8-27, 8-29

1шт.

16

Cylinder Drain Hose, Page 8-27, 8-29

1шт.

17

Return Tube, Page 8-3

1шт.
