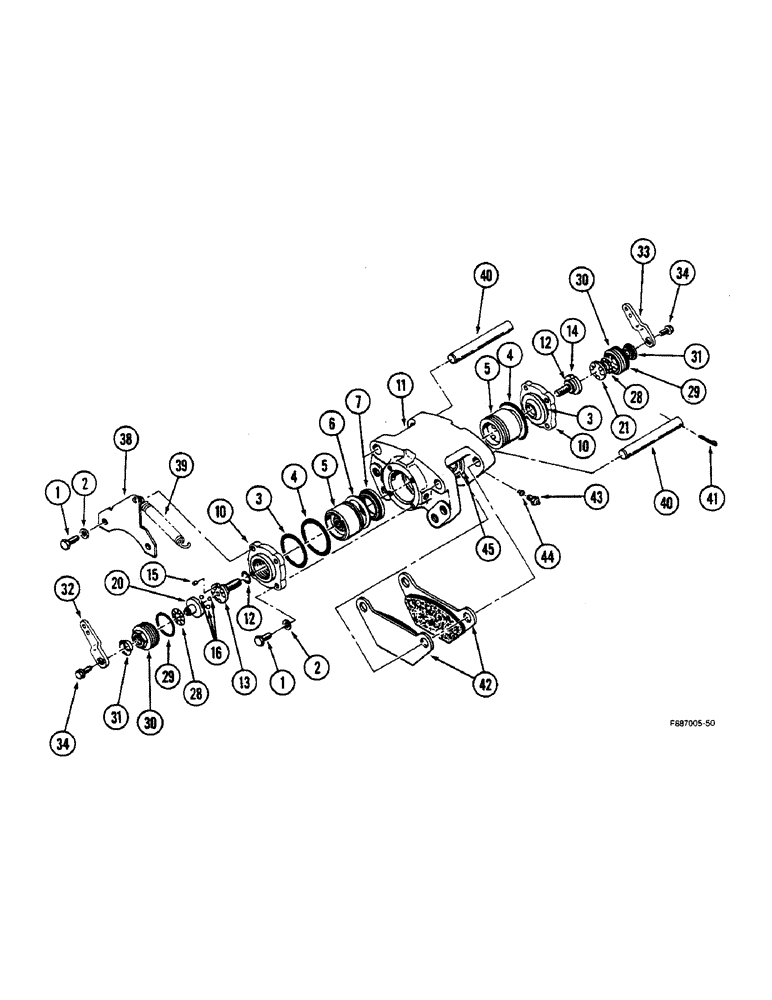

Запчасти Case IH STEIGER (7-08) - BRAKE CALIPER ASSEMBLY, WITH PARK BRAKE (07) - BRAKES

90-1993T91

CALIPER

ASSEMBLY - brake (With park brake), Includes Ref: 1-45

1шт.

1

90-3445T1

SCREW,Hex, 3/8" - 16 x 1"

BOLT - hex

8шт.

2

19-117

LOCK WASHER,3/8"

3/8"

4шт.

3

90-3479T1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

O-RING - end cap mount seal

2шт.

4

90-3430T1

LARGE PLATE

SEAL - piston

2шт.

5

A46967

PISTON

- caliper

2шт.

6

90-3481T1

INSULATOR

- piston

2шт.

7

90-3461T1

RETAINER

- insulator

2шт.

10

90-3444T1

ANCHOR

MOUNT - end cap

2шт.

11

90-3442T1

HOUSING

- caliper, brake

1шт.

12

90-3483T1

O-RING

O-RING - thrust screw seal

2шт.

13

90-3447T1

SCREW

- thrust, park brake, left

1шт.

14

90-3446T1

SCREW

- thrust, park brake, right

1шт.

15

90-3448T1

PIN

- anti-rotation, actuating shaft

2шт.

16

90-3449T1

BALL

- steel

6шт.

20

90-3451T1

SHAFT

- actuator, park brake, left

1шт.

21

A46951

SHAFT

- actuator, park brake, right

1шт.

28

90-3452T1

THRUST BEARING

- thrust

2шт.

29

90-3478T1

O-RING

- retainer seal

2шт.

30

A46958

RETAINER

- actuating linkage

2шт.

31

A46957

SEAL

- retainer

2шт.

32

90-3455T1

LEVER

- park brake actuating, left

1шт.

33

90-3454T1

LEVER

- park brake actuating, right

1шт.

34

A46956

SERRATED SCREW,Hex Serrated Washer

- machine

2шт.

38

90-3462T1

SUPPORT

BRACKET - spring

2шт.

39

90-2902T1

SPRING

- park brake return

2шт.

40

A46971

PIN

- brake pad

2шт.

41

323-1

COTTER PIN,5/32" x 1 1/4"

PIN - cotter, 1/8 x 1-1/2 inch

4шт.

42

A46966

BRAKE LINING

PAD - brake

2шт.

43

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

44

90-3459T1

INSERT

SEAT - bleeder screw insert

4шт.

45

A46969

BELLOWS

BOOT - dust

2шт.
