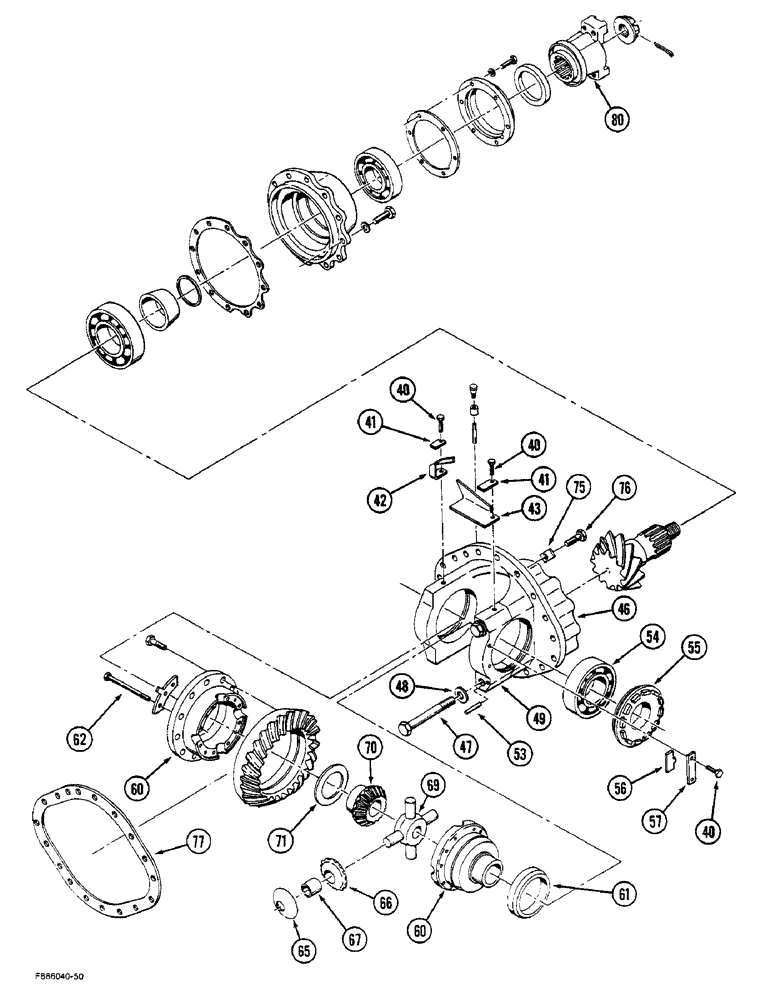

Запчасти Case IH STEIGER (6-80) - AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER, K598.60/70 SERIES (06) - POWER TRAIN

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (Continued from previous page), Includes Ref: 40-71

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, Includes Ref: 40-71

1шт.

90-4487T91

DIFFERENTIAL

ASSEMBLY - front, Includes Ref: 40-71

1шт.

90-4486T91

DIFFERENTIAL

ASSEMBLY - rear, Includes Ref: 40-71

1шт.

40

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, M8 x 15 mm, Grade 10.9

8шт.

41

90-4492T1

LARGE PLATE

TAB - locking

2шт.

42

90-4491T1

LARGE PLATE

PLATE - oil baffle, front axle

1шт.

42

90-4490T1

LARGE PLATE

PLATE - oil baffle, rear axle

1шт.

43

90-4494T1

LARGE PLATE

PLATE - oil baffle, front axle

1шт.

43

90-4493T1

LARGE PLATE

PLATE - oil baffle, rear axle

1шт.

46

90-4488T91

HOUSING

ASSEMBLY - differential carrier, Includes Ref: 47-49

1шт.

47

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

BOLT - hex

2шт.

48

90-4489T1

WASHER

- flat

2шт.

49

NSS

NOT SOLD SEPARAT

CAP - bearing retainer

1шт.

53

90-4485T1

DOWEL

PIN - dowel, M10 x 25 mm

1шт.

54

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - tapper roller

2шт.

55

16-1522

SLOTTED NUT

NUT - bearing retainer

2шт.

56

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

57

16-1524

LARGE PLATE

PLATE - locking

2шт.

16-1547

DIFFERENTIAL

ASSEMBLY - axle, Includes Ref: 60-62

1шт.

16-1548

CAGE ASSY.

CASE ASSEMBLY - differential halves, Includes Ref: 60-62

1шт.

60

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

61

16-1564

BAFFLE

Oil

1шт.

62

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

BOLT - hex, M12 x 1.5 x 90 mm, Grade 10.9

12шт.

65

16-1563

WASHER

- cone, wear

4шт.

66

16-1561

PINION

GEAR - pinion, Includes Ref: 67

4шт.

67

16-1562

BUSHING

Gear

4шт.

69

16-1560

DIFF. SPIDER

SPIDER - pinion gear

1шт.

70

16-1559

PINION

GEAR - side

2шт.

71

16-1551

SPACER

- gear, 4.6 mm thick

2шт.

71

16-1552

SPACER

- gear, 4.7 mm thick

2шт.

71

16-1553

SPACER

- gear, 4.8 mm thick

2шт.

71

16-1554

SPACER

- gear, 4.9 mm thick

2шт.

71

16-1555

SPACER

- gear, 5.0 mm thick

2шт.

71

16-1556

SPACER

- gear, 5.1 mm thick

2шт.

71

16-1557

SPACER

- gear, 5.2 mm thick

2шт.

71

16-1558

SPACER

- gear, 5.3 mm thick

2шт.

75

16-1520

WASHER

- lock

12шт.

75

16-1521

WASHER

PLATE - locking

6шт.

76

40-1102

SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9

BOLT - hex, M12 x 38 mm, Grade 10.9

18шт.

77

16-1531

GASKET

- differential (Order 1-1055, RTV sealant)

1шт.

80

90-6566T1

COUPLING FLANGE

YOKE - flanged, brake mount, front

1шт.

80

1-6763

YOKE

- rear

1шт.
