Запчасти Case IH STEIGER (6-76) - AXLE ASSEMBLY, HOUSING AND WHEEL END, K598.60/70 SERIES (06) - POWER TRAIN

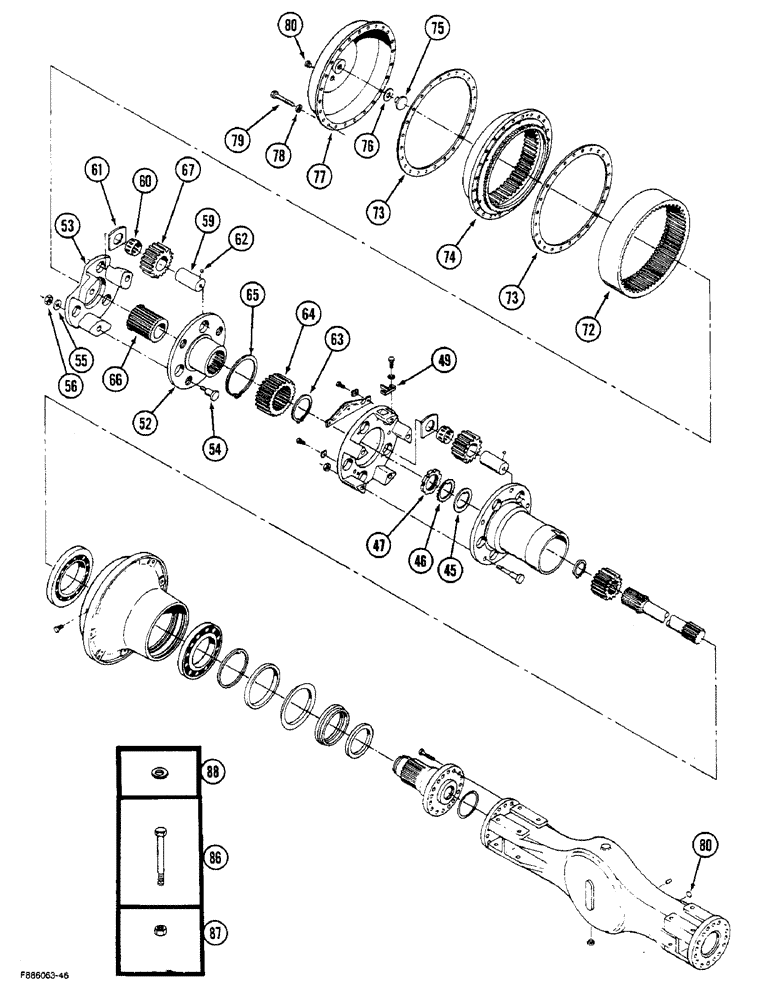

Схема запчастей Case IH STEIGER - (6-76) - AXLE ASSEMBLY, HOUSING AND WHEEL END, K598.60/70 SERIES (06) - POWER TRAIN
61
46
62
67
52
63
60
74
59
72
87
66
77
79
64
56
55
54
65
76
53
80
47
45
75
86
73
49
73
88
80
78

Артикул

Название

Примечание

Количество

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (Continued from previous page), Includes Ref: 45-80

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, Includes Ref: 45-80

1шт.

45

90-4497T1

DISC

DISK - spacer

2шт.

46

90-4496T1

LOCK WASHER

- lock, adjusting nut

2шт.

47

90-4495T1

NUT

- shaft end

2шт.

49

90-4532T1

LARGE PLATE

PLATE - oil

2шт.

90-4522T91

REDUCER

CARRIER ASSEMBLY - planetary, outer, Includes Ref: 52-56

2шт.

90-4523T91

REDUCER

CARRIER ASSEMBLY - planetary, Includes Ref: 52-56

2шт.

52

NSS

NOT SOLD SEPARAT

CARRIER - pinion, half

2шт.

53

NSS

NOT SOLD SEPARAT

CARRIER - pinion, half

2шт.

54

16-1608

SCREW,Hex Shldr

BOLT - shouldered

6шт.

55

16-1599

WASHER

- flat

6шт.

56

16-1598

NUT

- hex, M16 x 1.5

6шт.

59

90-2567T1

PIN

SHAFT - planetary pinion (With lubrication hole)

6шт.

60

1-8340

BEARING, NEEDLE

BEARING - needle roller (2 per gear)

12шт.

61

1-8341

SPACER

PLATE - spacer, wear

12шт.

62

16-1607

BALL

- steel

6шт.

63

16-1623

RING, SNAP

RING - snap

2шт.

64

16-1622

SUN GEAR

GEAR - sun

2шт.

65

90-4528T1

RING, SNAP

RING - snap

2шт.

66

90-4526T1

PINION

GEAR - sleeve

2шт.

67

90-4525T1

PINION

GEAR - pinion, idler, 26 tooth

6шт.

72

90-4529T1

GEAR, RING

GEAR - ring

2шт.

73

90-4413T1

GASKET

- (Order 1-1055, RTV sealant)

4шт.

74

90-4521T1

GEAR, RING

GEAR - double ring

2шт.

75

90-2555T1

LARGE PIN

PIN - support, axle shaft

2шт.

76

90-2554T1

SHIM

- support pin

1шт.

77

90-4520T1

COVER

- axle end

2шт.

78

16-1592

LOCK WASHER

- lock, M15

48шт.

79

40-1171

BOLT,Hex, M14 x 1.5 x 50mm, Gr 10.9

BOLT - hex, M14 x 1.5 x 50 mm, Grade 10.9

48шт.

80

90-2523T1

PLUG

- M24 x 1.5

3шт.

86

27022R1

BOLT,Hex, 1" - 8 x 10", Gr 8

- hex, 1 NC x 9-1/4 inch, Grade 8

16шт.

87

131-1221

LOCK NUT,1"-8, GC

NUT - lock, hex, 1 inch NC

16шт.

88

19-5739

WASHER

- flat, hardened, 1 x 2 x 5/32 inch

16шт.

Выбрано товаров: 34
