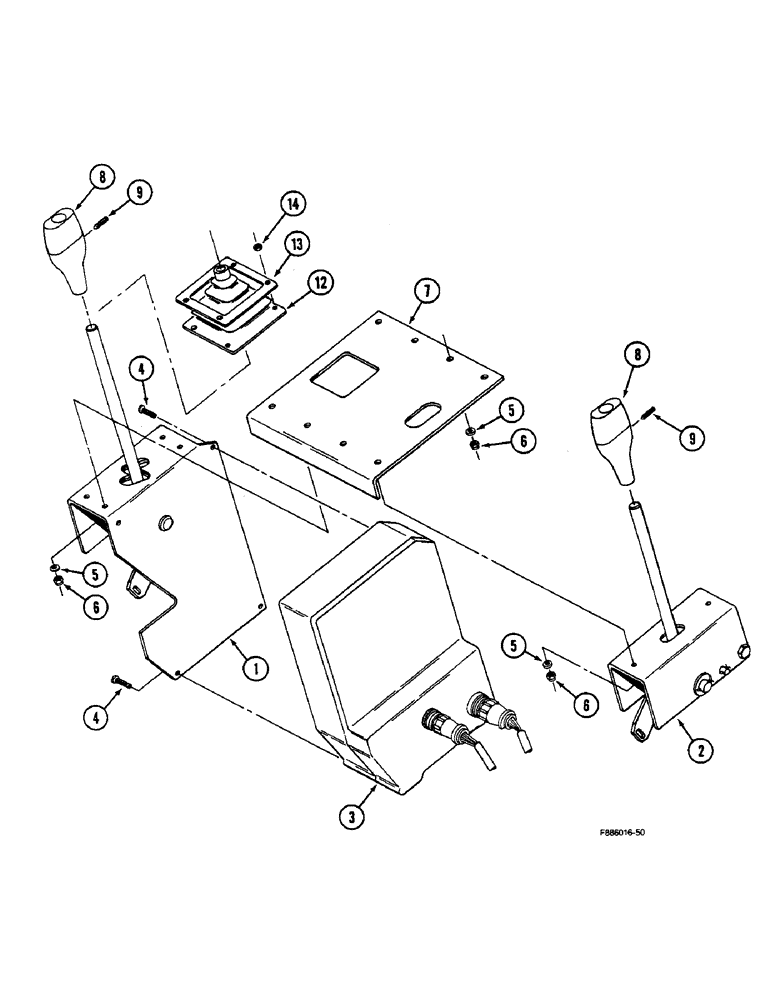

Запчасти Case IH STEIGER (6-32) - TRANSMISSION SHIFT CONTROLS, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL ASSEMBLY - mode (See Figure: 6-34)

1шт.

2

REF

INSTRUCTION

CONTROL ASSEMBLY - pulser (See Figure: 6-36)

1шт.

3

60-6133T1

BOX

CONTROLLER - transmission, electronic, cab (See Note)

1шт.

60-6570T1R

REMAN ELECT CONTROL

STEIGER LION PRIOR TO P.I.N. JCB0002116 (9/88-), Reman for New P/N 60-6133T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

60-6132T1

BOX

CONTROLLER - transmission, electronic, ROPS (See Note)

1шт.

4

113-3018

SCREW - tapping, pan head, No. 10 x 3/4 inch

4шт.

5

113-305

WASHER - flat, 1/4 inch

14шт.

6

113-3081

NUT - lock, 1/4 inch NC

14шт.

7

60-5058T1

SUPPORT

BRACKET - adapter, control mounting

1шт.

8

60-6036T1

KNOB

KNOB - shift handle

2шт.

9

113-60726

SCREW - set, No. 8 NC x 3/8 inch

2шт.

12

60-5847T1

BOOT

- bellows (ROPS only)

2шт.

13

60-5846T1

RETAINER

- boot (ROPS only)

2шт.

14

19-5564

LOCK NUT,#6-32, GB

NUT - lock, No. 6 NC (ROPS only)

8шт.
