Запчасти Case IH STEIGER (6-30) - TRANSMISSION, RANGE SELECTOR VALVE (06) - POWER TRAIN

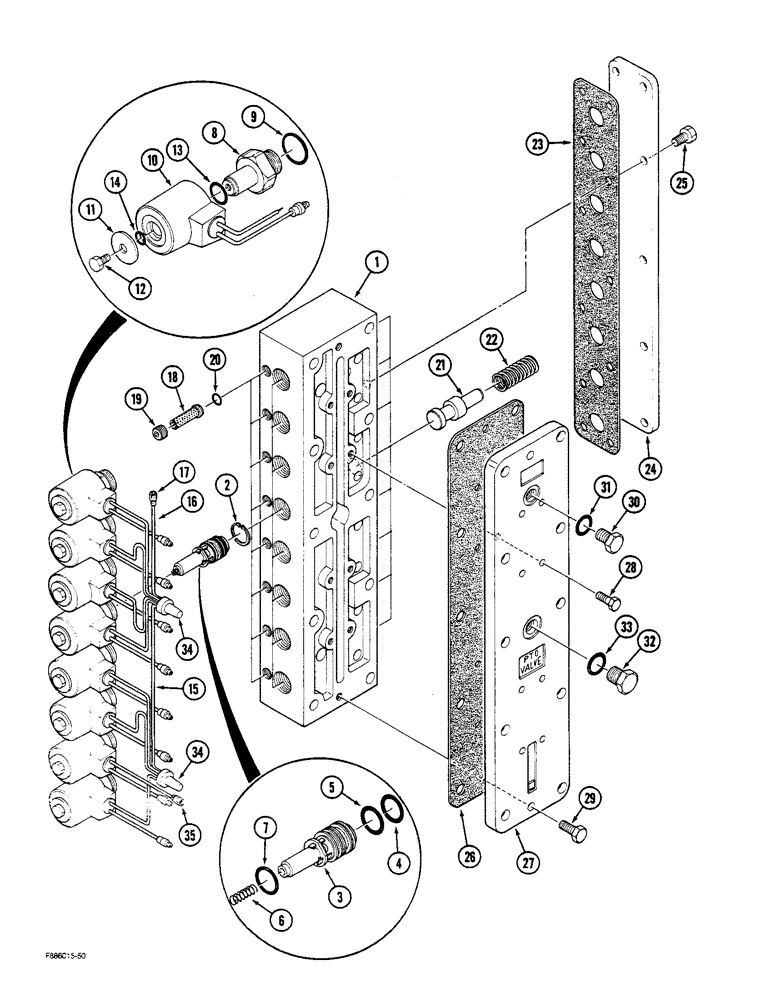

Схема запчастей Case IH STEIGER - (6-30) - TRANSMISSION, RANGE SELECTOR VALVE (06) - POWER TRAIN
7
1
24
17
20
34
29
2
11
3
16
35
19
28
26
21
30
6
5
4
32
18
25
23
12
8
27
9
34
14
13
31
22
10
15
33

Артикул

Название

Примечание

Количество

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous page), Includes Ref: 1-35

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S9000S01F

CHECK VALVE

VALVE ASSEMBLY - range selector, Includes Ref: 1-35

1шт.

1

S9050S00F

VALVE BODY

BODY - valve

1шт.

2

S9090S00F

RING, SNAP

RING - snap

8шт.

S9300S01F

SOLENOID

ASSEMBLY, Includes Ref: 3-14

8шт.

371737A1R

REMAN-SOLENOID

Reman for New PN S9300S01F

8шт.

371737A1C

CORE-SOLENOID

Return Number

8шт.

3

S9180S01F

VALVE, CHECK

VALVE ASSEMBLY - pilot

8шт.

4

S9310S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

8шт.

5

S9320S00F

O-RING

8шт.

6

S9330S01F

SPRING

8шт.

7

S9380S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

8шт.

8

S9340S00F

PLUG

CORE ASSEMBLY - solenoid

8шт.

9

S9350S00F

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

8шт.

10

S9070S00F

SOLENOID

COIL - solenoid

8шт.

10

371737A1R

REMAN-SOLENOID

Reman for New PN S9070S00F

8шт.

10

371737A1C

CORE-SOLENOID

Return Number

8шт.

11

S9360S00F

WASHER

- coil retaining

8шт.

12

S9370S00F

BOLT

- coil retaining

8шт.

13

S9390S00F

O-RING

8шт.

14

S9400S00F

O-RING

8шт.

15

S9130S00F

ELECTRICAL WIRE

WIRE -jumper

1шт.

16

S9120S00F

ELECTRICAL WIRE

WIRE - power supply, Includes Ref: 17

1шт.

17

S9160S00F

TERMINAL CONNECTOR

TERMINAL - wire connector

1шт.

18

S9060S00F

SCREEN

- filter

8шт.

19

S9080S00F

PLUG

- screen retaining

8шт.

20

S9170S00F

O-RING

- filter

8шт.

21

S9040S00F

VALVE

- selector

8шт.

22

S9010S00F

SPRING

- selector valve

8шт.

23

S9030S00F

GASKET

- side plate

1шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

24

S9020S00F

PLATE

- valve side

1шт.

25

SM8120820

BOLT

BOLT - hex, M8 x 1.25 x 20 mm

11шт.

26

S9110S00F

GASKET

- valve cover

1шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

27

S9100S00F

COVER

- valve

1шт.

28

SM8120620

CAPSCREW

BOLT - hex, M6 x 1.00 x 20 mm

8шт.

29

SM8120825

BOLT

- hex, M8 x 1.25 x 25 mm

2шт.

30

S1030S00F

PLUG

- O-ring boss, Includes Ref: 31

1шт.

31

S1040S00F

O-RING

- plug

1шт.

32

S1390S00F

PLUG

- O-ring boss, Includes Ref: 33

1шт.

33

S1320S00F

O-RING

- plug

1шт.

34

S9140S00F

TERMINAL CONNECTOR

CONNECTOR - wire splice

2шт.

35

S9160S00F

TERMINAL CONNECTOR

TERMINAL - wire connector

1шт.
