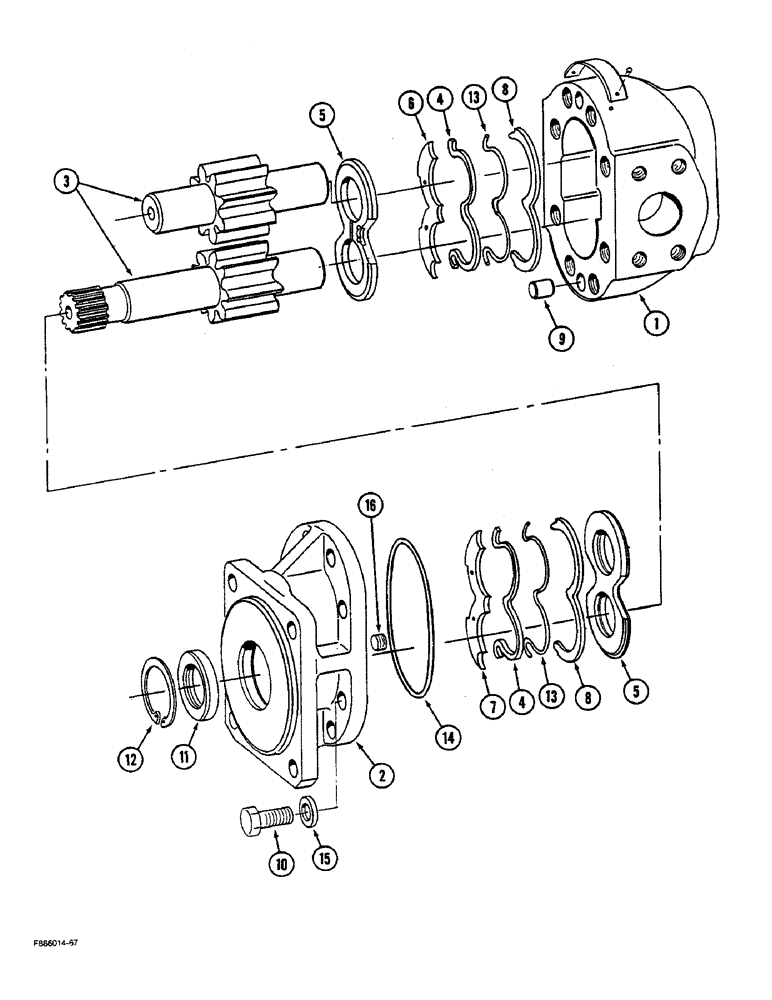

Запчасти Case IH STEIGER (6-28) - TRANSMISSION, LUBE PUMP (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous page), Includes Ref; 1-16

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S8000S00G

PUMP

ASSEMBLY - lube, transmission, Includes Ref: 1-16

1шт.

1

S8010S00G

BODY

- pump, rear

1шт.

2

S8020S00G

COVER

- pump drive

1шт.

3

S8200S00G

GEAR-SET

GEAR KIT - idler and drive

1шт.

4

S8050S00G

PLATE

RING - backup

2шт.

This part included in SEAL KIT pump, S8210S00G.

1шт.

5

S8060S00G

PLATE

- pressure

2шт.

6

S8070S00G

PLATE

- isolation

1шт.

7

S8080S00G

PLATE

- isolation

1шт.

8

S8090S00G

RING

- retainer

2шт.

9

S8100S00G

DOWEL

PIN - dowel

2шт.

This part included in SEAL KIT pump, S8210S00G.

1шт.

10

S8110S00G

CAPSCREW

BOLT - hex head

8шт.

11

S8120S00G

OIL SEAL

SEAL - shaft

1шт.

This part included in SEAL KIT pump, S8210S00G.

1шт.

12

S8130S00G

RING, SNAP

RING - snap

1шт.

This part included in SEAL KIT pump, S8210S00G.

1шт.

13

S8140S00G

O-RING

2шт.

This part included in SEAL KIT pump, S8210S00G.

1шт.

14

S8150S00G

O-RING

-, Serial Range: cover-body

1шт.

This part included in SEAL KIT pump, S8210S00G.

1шт.

15

S8160S00G

WASHER

8шт.

16

S8170S00G

PLUG

1шт.
