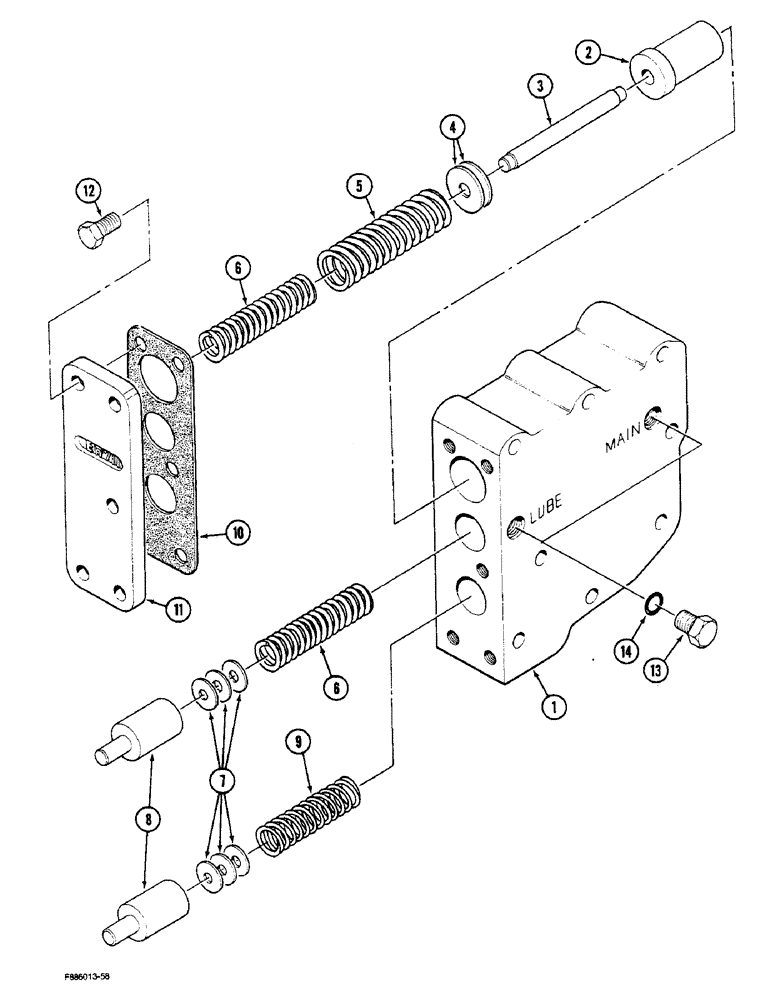

Запчасти Case IH STEIGER (6-26) - TRANSMISSION, REGULATOR VALVE (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous page), Includes Ref: 1-14

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S7000S00F

VALVE

ASSEMBLY - regulator, Includes Ref: 1-14

1шт.

1

S7040S00F

VALVE BODY

BODY - regulator valve

1шт.

2

S7030S00F

VALVE

- regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

- compression

1шт.

6

S7050S00F

SPRING

- compression

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7060S00F

VALVE

- lube

1шт.

9

S7070S00F

SPRING

- compression

1шт.

10

S7090S00F

GASKET

- valve cover

1шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

11

S7110S00F

COVER

- valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, M8 x 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

- O-ring boss, Includes Ref; 14

2шт.

14

S1040S00F

O-RING

- plug

2шт.
