Запчасти Case IH STEIGER (6-22) - TRANSMISSION, 8 INCH CLUTCH PACK (06) - POWER TRAIN

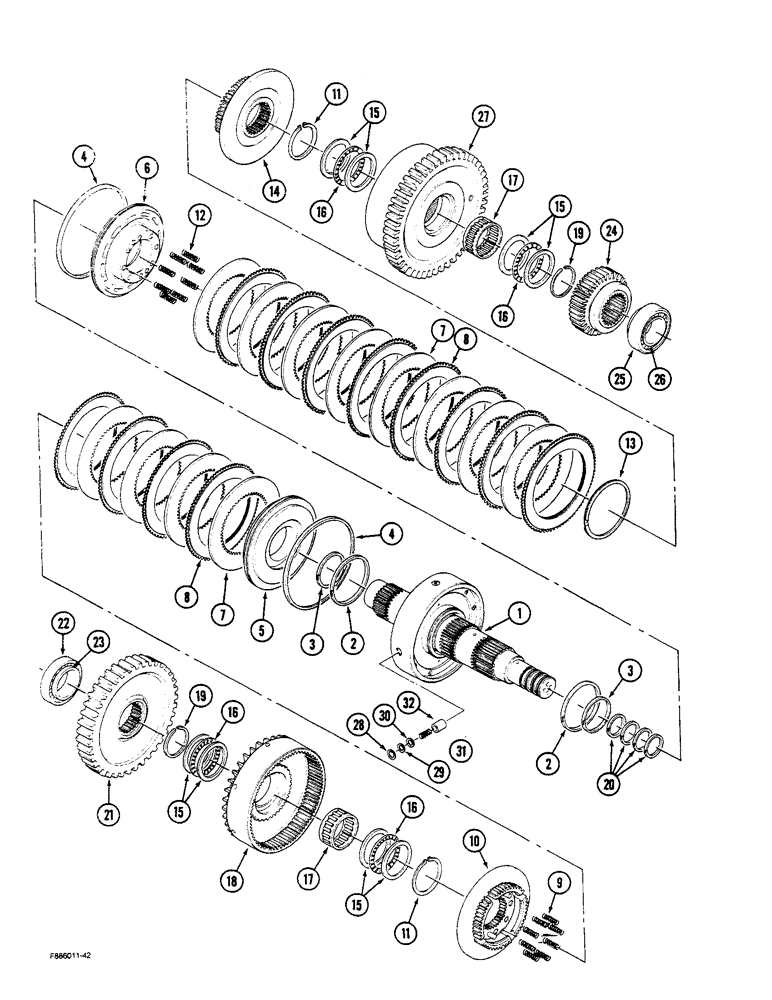

Схема запчастей Case IH STEIGER - (6-22) - TRANSMISSION, 8 INCH CLUTCH PACK (06) - POWER TRAIN
31
17
11
26
19
29
14
32
22
15
8
5
16
28
23
2
1
17
16
4
9
20
25
7
11
16
8
15
30
27
24
2
18
10
15
21
19
3
6
4
13
15
12
3
16
7

Артикул

Название

Примечание

Количество

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous page), Includes Ref: 1-32

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S5000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 9 inch, Includes Ref: 1-32

1шт.

1

S5900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S5520S00F

RING

- piston

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

3

S5510S00F

RING

- piston

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

4

S4430S00F

RING

- sealing

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

5

S5760S00F

PISTON

- clutch

1шт.

6

S5180S00F

PISTON

- clutch

1шт.

7

*S5120S00F

PLATE - steel, flat, 2.6 mm thick

1шт.

Steel plates, Ref. 7; a total set of 12 pieces must be used.

1шт.

7

*S5130S00F

PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 7; a total set of 12 pieces must be used.

1шт.

8

S5570S00F

LARGE PLATE

PLATE - faced

12шт.

9

S5550S00F

SPRING

- return, piston

8шт.

10

S5850S00G

HUB

- clutch

1шт.

11

S5100S00F

RING, SNAP

RING - snap

2шт.

12

S5540S00F

SPRING

- return, piston

8шт.

13

S5490S00F

RING

- retaining

1шт.

14

S5840S00G

HUB

- clutch

1шт.

15

S5230S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

16

S5050S00F

THRUST BEARING

BEARING - thrust

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

18

S5080S00F

PINION

GEAR - clutch (37 Teeth)

1шт.

19

S5040S00F

RING

- retaining

2шт.

20

S3070S00F

RING

- sealing

4шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

21

S5060S00F

PINION

GEAR - input (43 Teeth)

1шт.

22

1-1584

BEARING CUP,4.4375" OD x 1.1875"

CUP-bearing

1шт.

23

90-1319T1

ROLLER BEARING,2.5" ID x 1.1875"

CONE ASSEMBLY - bearing

1шт.

24

S5270S00F

PINION

GEAR - drive (21 Teeth)

1шт.

25

90-6579T1

BEARING CUP

CUP - bearing

1шт.

26

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

CONE ASSEMBLY - bearing

1шт.

27

S5280S00F

GEAR

- clutch (46 Teeth)

1шт.

28

SM9222160

RING, SNAP

RING - snap

2шт.

29

S3220S00F

SHIM

1шт.

30

S3230S00F

SHIM

1шт.

31

S3210S00F

SPRING

- valve

2шт.

32

S3200S00F

DRAIN VALVE

VALVE - drain

2шт.

Выбрано товаров: 43
