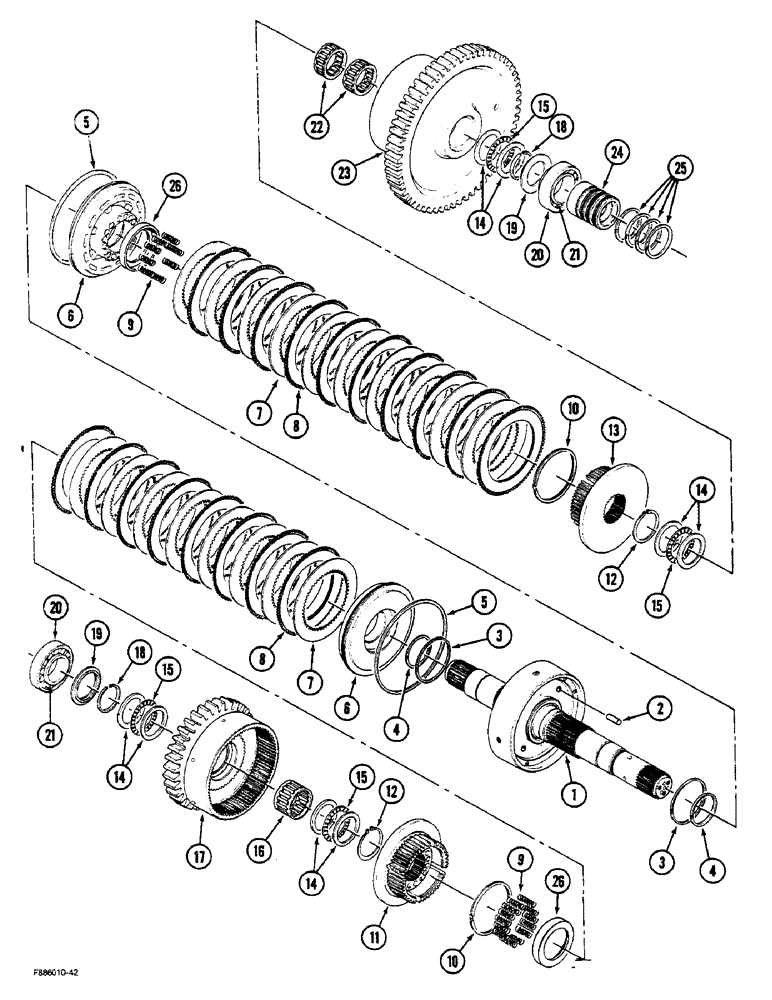

Запчасти Case IH STEIGER (6-20) - TRANSMISSION, 8 INCH CLUTCH PACK (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous page), Includes Ref: 1-26

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S4000S02F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 8 inch, Includes Ref: 1-26

1шт.

1

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes Ref: 2

1шт.

2

S4680S02F

SPECIAL NUT

PIN - guide, 11 mm diameter

4шт.

3

S4420S00F

RING

- piston

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

4

S4410S00F

RING

- piston

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

5

S4430S00F

RING

- sealing

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

6

S4180S02F

PISTON

- clutch

2шт.

7

*S4070S00F

PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 7; a total set of 18 pieces must be used.

1шт.

7

*S4110S00F

PLATE - steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref. 7; a total set of 18 pieces must be used.

1шт.

8

S4080S00F

LARGE PLATE

PLATE - faced

18шт.

9

S4440S00F

SPRING

- return, piston

22шт.

10

S4390S00F

RING, SNAP

RING - retaining

2шт.

11

S4100S01G

HUB

- clutch

1шт.

12

S2100S00F

RING, SNAP

RING - snap

2шт.

13

S4380S01G

HUB

- clutch

1шт.

14

S2200S00F

BEARING WASHER

WASHER - thrust

8шт.

15

S2230S00F

BEARING

- thrust

4шт.

16

S2210S00F

BEARING, ROLLER

BEARING - needle

1шт.

17

S4210S00F

PINION

GEAR - output (38 Teeth)

1шт.

18

S2240S00F

RING, SNAP

RING - retaining

2шт.

19

S4040S00F

SPACER

- bearing

2шт.

20

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

2шт.

21

ST2016A

BEARING

CONE ASSEMBLY - bearing

2шт.

22

S2030S00F

BEARING, ROLLER

BEARING - needle

2шт.

23

S4170S00F

PINION

GEAR - output (59 Teeth)

1шт.

24

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

25

S4150S00F

RING

- sealing

4шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

26

S4530S01F

LARGE PLATE

PLATE - retaining, spring

2шт.
