Запчасти Case IH STEIGER (6-18) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (06) - POWER TRAIN

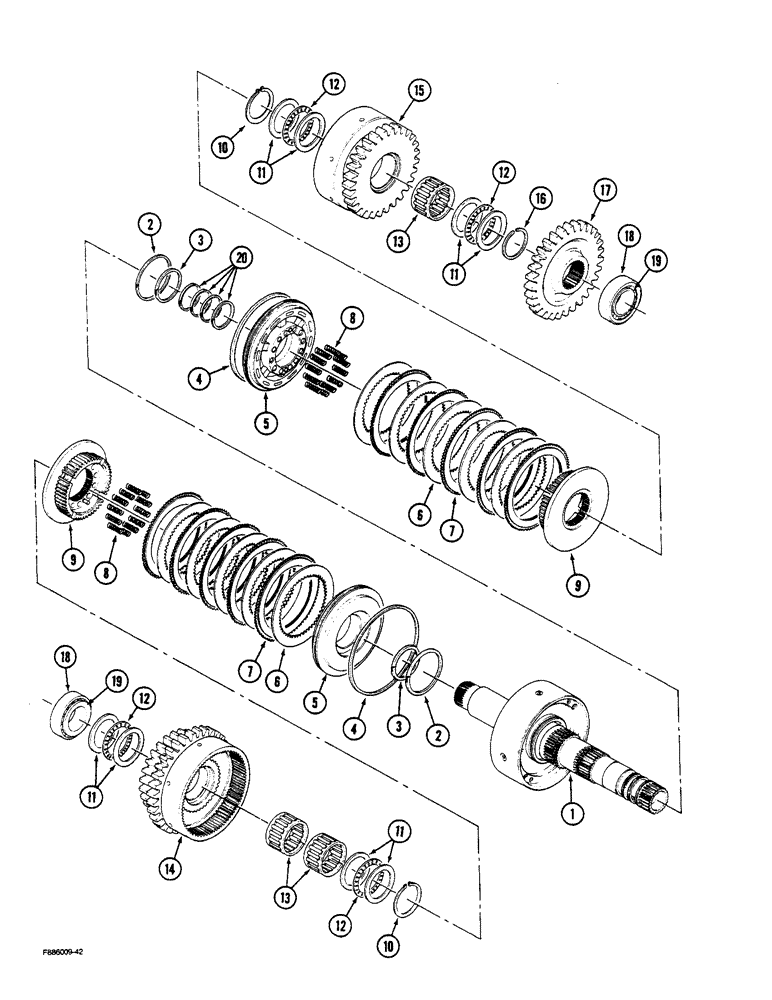

Схема запчастей Case IH STEIGER - (6-18) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (06) - POWER TRAIN
14
11
7
12
19
12
11
13
7
1
8
3
6
6
5
18
9
19
4
11
5
9
12
20
13
17
15
2
12
18
3
10
4
16
8
2
11
10

Артикул

Название

Примечание

Количество

90-6563T91

TRANSMISSION

ASSEMBLY (Continued from previous page), Includes Ref: 1-20

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

S3000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 inch, 2nd, Includes Ref: 1-20

1шт.

1

S3900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

- piston

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

3

S2610S00F

RING

- piston

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

4

S2630S00F

RING

- sealing

2шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

5

S2180S00F

PISTON

- clutch

2шт.

6

*S2080S00F

PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref.6; a total of 10 pieces must be used.

1шт.

6

*S2090S00F

PLATE - steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref.6; a total of 10 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

PLATE - faced

10шт.

8

S2640S00F

SPRING

- return, piston

24шт.

9

S2850S00F

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

- thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - needle

3шт.

14

S3040S00F

PINION

GEAR - counter (34 Teeth/26 Teeth)

1шт.

15

S2280S00F

PINION

GEAR - drive (29 Teeth)

1шт.

16

S2240S00F

RING, SNAP

RING - retaining

1шт.

17

S3030S00F

PINION

GEAR - input (31 Teeth)

1шт.

18

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.

19

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE ASSEMBLY - bearing

2шт.

20

S3070S00F

RING

- sealing

4шт.

This part is included in GASKET KIT, transmission S1670S00F.

1шт.

Выбрано товаров: 31
