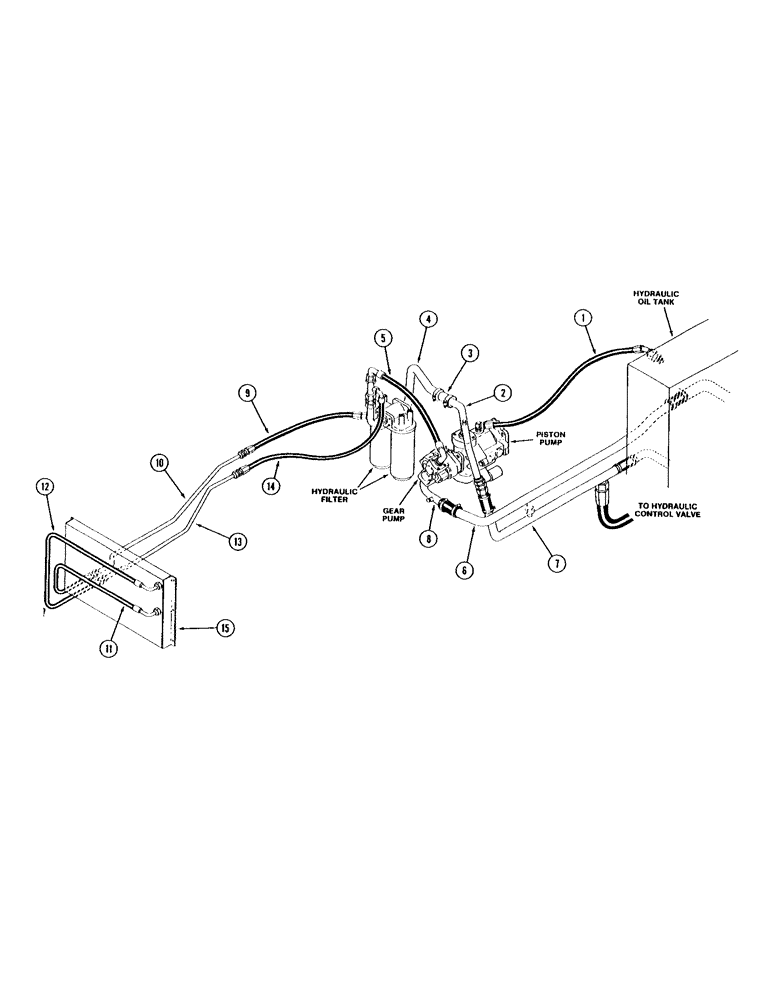

Запчасти Case IH STEIGER (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Piston Pump Return Hose, Page 8-3

1шт.

2

Filter to Pump to Tank Connection Tube, Page 8-3

1шт.

3

Tube Joint, Page 8-3

1шт.

4

Filter Inlet Tube, Page 8-5

1шт.

5

Gear Pump to Filter Tube Connection Hose, Page 8-5

1шт.

6

Gear Pump Supply Tube, Page 8-5

1шт.

7

Piston Pump Return Tube, Page 8-3

1шт.

8

Gear Pump Supply Connector Tube, Page 8-5

1шт.

9

Oil Cooler Return Hose, Page 8-7

1шт.

10

Oil Cooler Return Tube, Page 8-7

1шт.

11

Oil Cooler Return Connector Hose, Page 8-7

1шт.

12

Oil Cooler Supply Connector Hose, Page 8-7

1шт.

13

Oil Cooler Supply Tube, Page 8-7

1шт.

14

Oil Cooler Supply Hose, Page 8-7

1шт.

15

Oil Cooler, Page 8-7

1шт.
