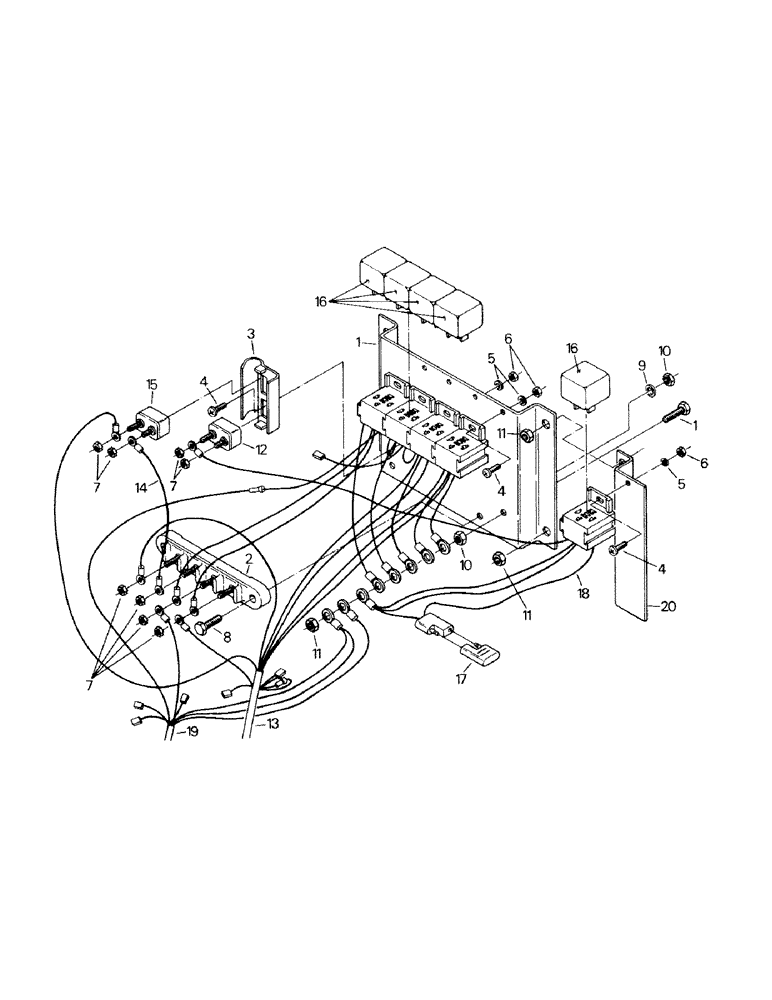

Запчасти Case IH STEIGER (02-15) - INSTRUMENT COMPONENT ASSEMBLY (06) - ELECTRICAL

1

20-1924T1

BRACKET

1шт.

2

20-1514T1

JUNCTION

Block

1шт.

3

20-1171T1

SUPPORT

Circuit Breaker Bracket

1шт.

4

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

7шт.

5

19-297

LOCK WASHER,#10

Washer, Lock, #10

7шт.

6

19-567

NUT,#10-24

#10 UNC G-A

7шт.

7

19-481

SERRATED NUT

Keps Nut, #10 UNF

8шт.

8

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew, 1/4 UNC x 1/2 G-5

2шт.

9

19-115

LOCK WASHER,1/4"

1/4"

2шт.

10

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

3шт.

11

19-1081

LOCK NUT

Lock Nut, 1/4 UNC G-A

5шт.

12

22-671

BREAKER

Circuit Breaker (15 Amp)

1шт.

13

20-1832T6

HARNESS

Trans Console Wire Harness

1шт.

14

20-1632T1

HARNESS

Wire

1шт.

15

22-670

BREAKER

Circuit Breaker (10 Amp)

1шт.

16

1-7877

RELAY

5шт.

17

22-738

DIODE

1шт.

18

20-2265T1

HARNESS

Relay Wire Harness

1шт.

19

20-2045T2

HARNESS

Rear Cab Wire Harness

1шт.

20

60-4949T1

Bracket

1шт.
