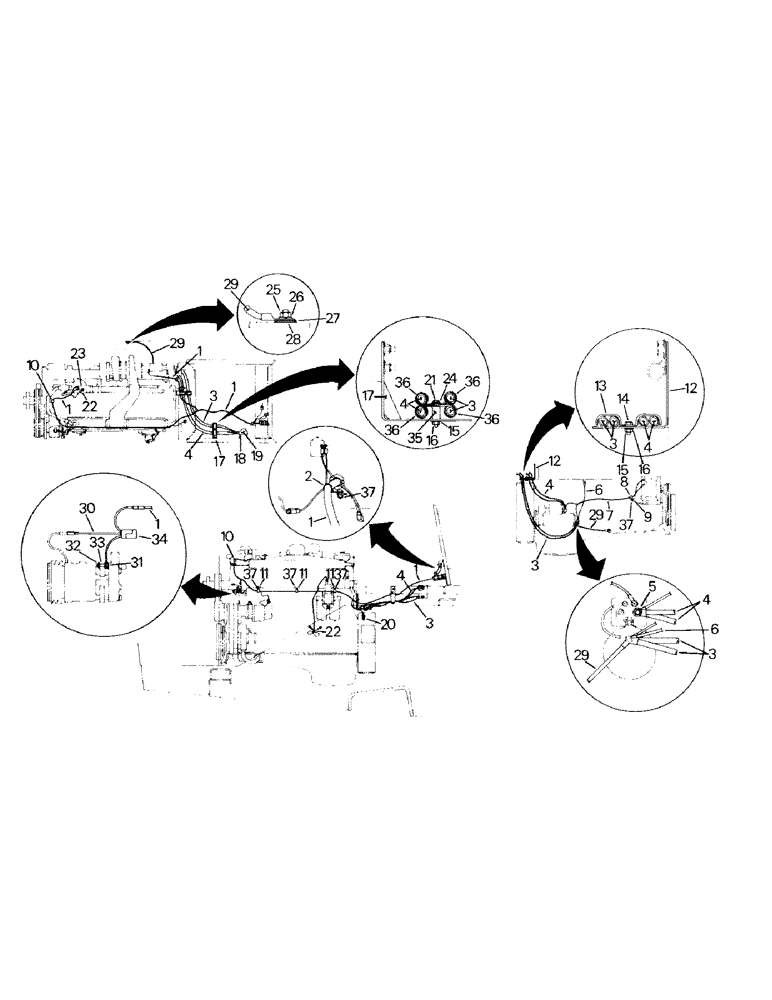

Запчасти Case IH STEIGER (02-02) - ENGINE ELECTRICAL, CUMMINS 855 ENGINE (06) - ELECTRICAL

1

20-2238T1

HARNESS

Engine Wire Harness

1шт.

2

22-633

CLIP

1шт.

3

20-2287T1

CABLE

Battery Cable

1шт.

4

20-2286T1

CABLE

Battery Cable

1шт.

5

20-2262T1

NUT

Seal Nut

1шт.

6

20-2164T1

HARNESS

Ground Wire

1шт.

7

20-2366T1

HARNESS

Alt Wire Harness

1шт.

8

1-1292

CLIP

1шт.

9

19-700

WASHER,5/16"

5/16

1шт.

10

22-634

CLIP

1шт.

11

22-632

CLIP

3шт.

12

20-1757T2

ANGLE

1шт.

13

20-2146T1

CLAMP

1шт.

14

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew, 1/4 UNC x 3/4 G-5

1шт.

15

19-115

LOCK WASHER,1/4"

1/4"

2шт.

16

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

2шт.

17

90-3717T1

Bracket

1шт.

18

1-7818

CABLE

Tie

2шт.

19

1-6885

BOOT

Terminal Boot

1шт.

20

20-2357T1

SENSOR

Magnetic Pickup

1шт.

21

19-720

BOLT,1/4" - 20 x 3/4"

Capscrew, 1/4 UNC x 2-1/4 G-5

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

23

20-1676T1

SWITCH

Water Temp Switch & Sender

1шт.

24

19-105

WASHER,1/4", SAE

1/4

1шт.

25

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

1шт.

26

19-119

LOCK WASHER,1/2"

1/2"

1шт.

27

19-711

WASHER,5/8", SAE

5/8

1шт.

28

19-517

LOCK WASHER,Ext Tooth, 5/8"

5/8

1шт.

29

22-33

CABLE

Starter Ground Cable

1шт.

30

20-2415T1

HARNESS

Suppressor Diode Harness

1шт.

31

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew, 3/8 UNC x 1 G-5

1шт.

32

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

33

19-243

LOCK WASHER,Ext Tooth, 3/8"

3/8

1шт.

34

22-738

DIODE

1шт.

35

50-2955T1

SPACER

1шт.

36

32-161

COLLAR CLAMP

Clamp

4шт.

37

NAP

Existing Hardware

1шт.
