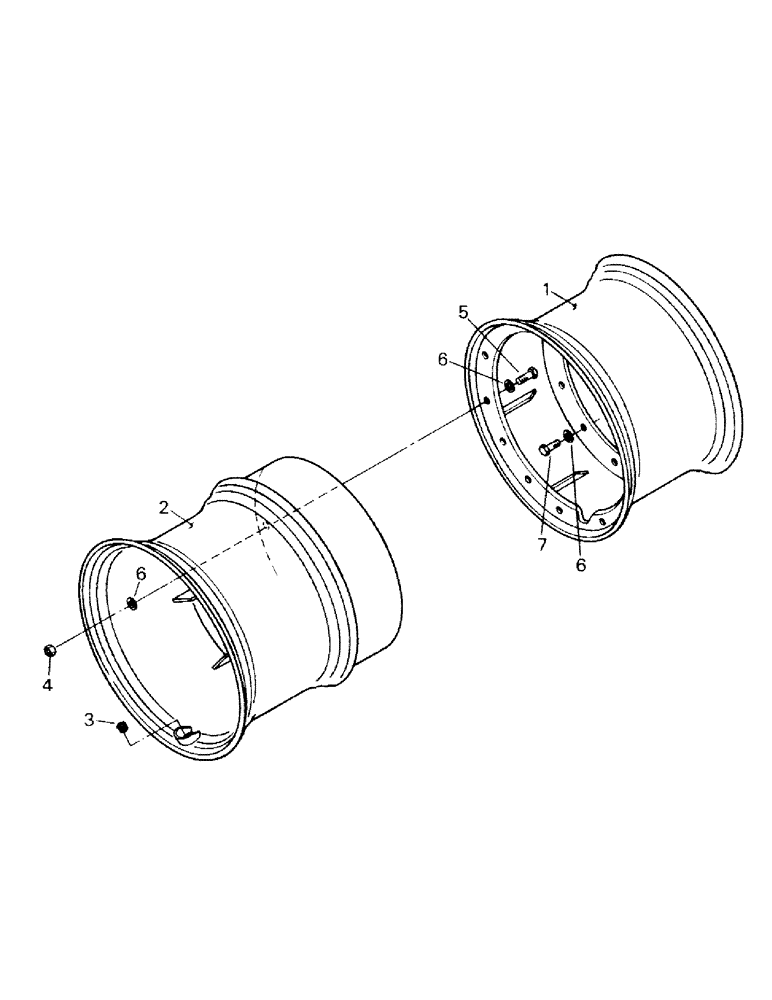

Запчасти Case IH STEIGER (04-43) - WHEELS WITH HUB BOLTED DUALS, DUAL WHEELS (04) - Drive Train

1

30-1189T1

RIM

23.1 x 34 (20")

4шт.

30-1056T2

RIM

23.1 x 34 (20")

4шт.

Reinforced bead

1шт.

30-1190T1

RIM

4.5 x 32 (21")

4шт.

2-2102T2

RIM

24.5 x 32 (21")

4шт.

Reinforced bead

1шт.

30-1223T1

RIM

24.5 x 32 (24")

4шт.

30-1221T1

RIM

24.5 x 32 (24")

4шт.

Reinforced bead

1шт.

30-1337T1

RIM

20.8 x 42 (18")

4шт.

30-1295T1

RIM

20.8 x 38 (18")

4шт.

2

30-1191T1

RIM

23.1 x 34 (20"), dual wheels

4шт.

Standard 8" dual spacing

1шт.

30-1051T1

RIM

23.1 x 34 (20"), dual wheels

4шт.

Reinforced bead

1шт.

Standard 8" dual spacing

1шт.

30-1192T1

RIM

24.5 x 32 (21"), dual wheels

4шт.

Standard 8" dual spacing

1шт.

30-1193T1

RIM

24.5 x 32 (21"), dual wheels

4шт.

Narrow 4" dual spacing

1шт.

30-1032T1

RIM

24.5 x 32 (21"), dual wheels

4шт.

Reinforced bead

1шт.

Standard 8" dual spacing

1шт.

2-2434T2

RIM

24.5 x 2 (21"), dual wheels

4шт.

Narrow 4" dual spacing

1шт.

Reinforced bead

1шт.

30-1217T1

RIM

24.5 x 32 (24"), dual wheels

4шт.

Standard 8" dual spacing

1шт.

30-1222T1

RIM

24.5 x 32 (34"), dual wheels

4шт.

Narrow 4" dual spacing

1шт.

30-1215T1

RIM

24.5 x 32 (24"), dual wheels

4шт.

Reinforced bead

1шт.

Standard 8" dual spacing

1шт.

30-1216T1

RIM

24.5 x 32 (24"), dual wheels

4шт.

Narrow 4" dual spacing

1шт.

Reinforced bead

1шт.

30-1291T1

RIM

20.8 x 38 (18"), dual wheels

4шт.

Standard 8" dual spacing

1шт.

30-1338T1

RIM

20.8 x 42 (18"), dual wheels

4шт.

Standard 8" dual spacing

1шт.

3

22-521

PLUG

(qty 8 with Duals), wheels

4шт.

4

19-457

NUT,7/8"-9, G5

dual wheels

48шт.

5

19-420

BOLT,7/8" - 9 x 3", Gr 8

Capscrew, dual wheels

48шт.

6

19-2975

WASHER

(qty varies - see below) 7/8 x 1-3/4 Thk, dual wheels

1шт.

Qty 40 with K598 Singles; qty 136 with K598 Duals

1шт.

7

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

Capscrew, 7/8 UNC x 2-1/2 G-8, dual wheels

40шт.
