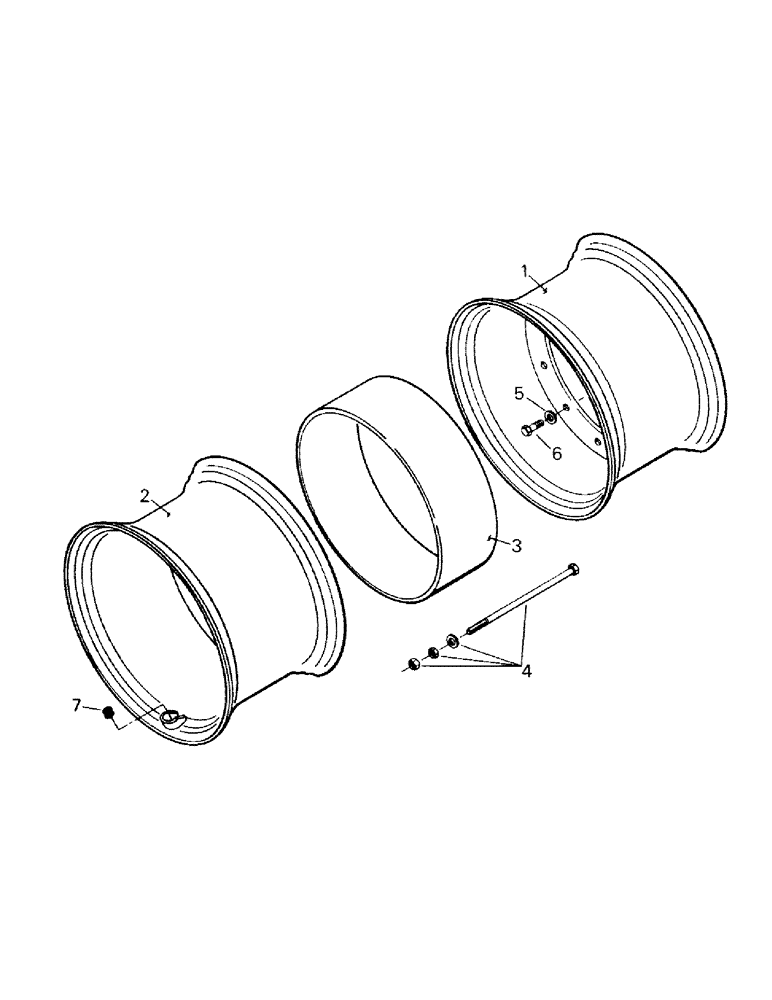

Запчасти Case IH STEIGER (04-42) - WHEELS WITH SPACER BAND DUALS, MAIN WHEELS, DUAL WHEELS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
MAIN WHEELS
1шт.
1
30-1124T1
RIM
23.1 x 34 (20")
4шт.
The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width shown is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.
1шт.
30-1112T1
RIM
20.8 x 38 (18")
4шт.
30-1161T1
RIM
24.5 x 32 (24")
4шт.
20-294
RIM
30.5 x 32 (27")
4шт.
30-1159T1
RIM
30.5 x 32 (30")
4шт.
30-1013T1
RIM
30.5 x 32 (27")
4шт.
Heavy duty with a 3/4" disc, a reinforced band and a reinforced bead
1шт.
30-1218T1
RIM
30.5 x 32 (30")
4шт.
Heavy duty with a 3/4" disc, a reinforced band and a reinforced bead
1шт.
30-1118T1
WHEEL
35.5 x 32 (31")
4шт.
30-1313T1
RIM
20.8 x 42 (18")
4шт.
DUAL WHEELS
1шт.
2
20-107
RIM
23.1 x 34 (20")
4шт.
20-191
RIM
20.8 x 38 (18")
4шт.
20-56
RIM
24.5 x 32 (21")
4шт.
30-1152T1
RIM
24.5 x 32 (24")
4шт.
30-1317T1
RIM
20.8 x 42 (18")
4шт.
3
20-70T1
SPACER
32" Spacer Band (13" wide)
4шт.
20-839T1
SPACER
32" Spacer Band (15" wide) (Replaces 20-8391T1)
4шт.
20-162T1
SPACER
34" Spacer Band (13" wide)
4шт.
20-397T1
SPACER
34" Spacer Band (15" wide)
4шт.
20-1007T1
SPACER
38" Spacer Band (13" wide)
4шт.
20-1001T1
SPACER
38" Spacer Band (15" wide)
4шт.
30-1367T1
SPACER
42" Spacer Band (13" wide)
4шт.
30-1318T1
SPACER
42" Spacer Band (15" wide)
4шт.
4
35-1323T91
BOLT
Tie Bolt Kit 32"
24шт.
Individual parts in the tie bolt kits are as follows: (1) 19-457 nut, (1) 19-5753 jam nut, (1) 20-052 washer, (1) NSS tie bolt, order complete kit
1шт.
35-1324T91
KIT
Tie Bolt Kit (34")
24шт.
35-1325T91
BOLT
Tie Bolt Kit (36")
24шт.
5
19-2975
WASHER
Hardened Washer, 7/8 x 1-3/4 x 3/8 Thk
40шт.
6
223470
BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8
Capscrew, 7/8 UNC x 2-1/2 G-8
40шт.
7
22-521
PLUG
(qty 8 with Duals)
4шт.
Выбрано товаров: 35
