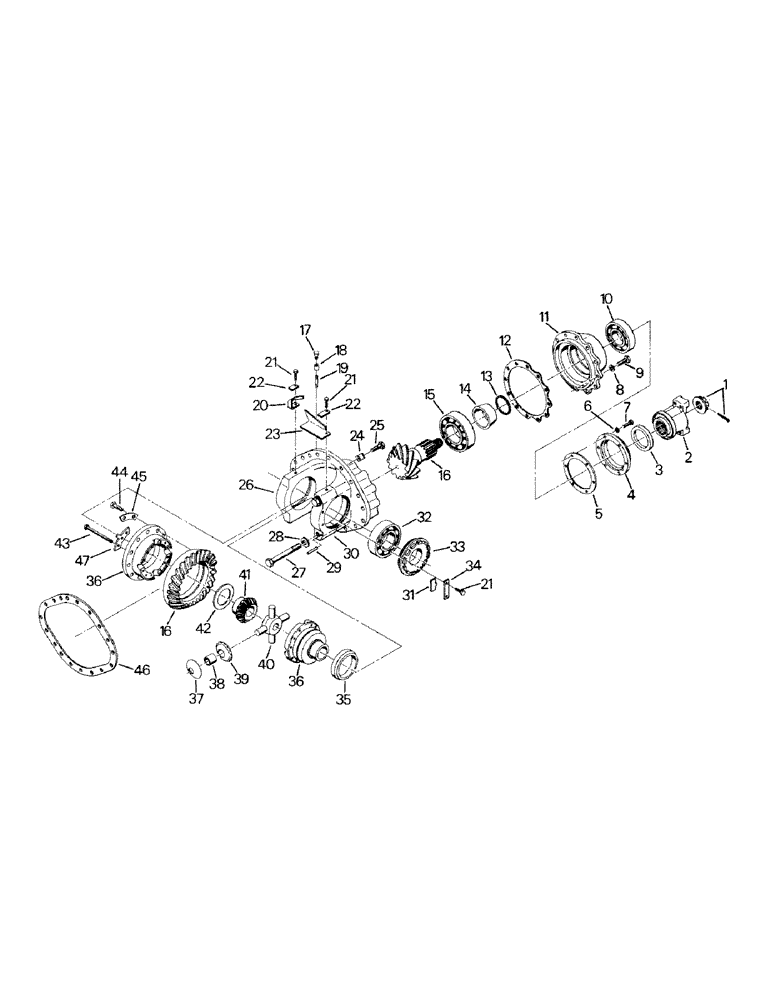

Запчасти Case IH STEIGER (04-39) - DIFFERENTIAL & CARRIER ASSEMBLY, K598.60/70 SERIES (04) - Drive Train
№
Артикул
Название
Примечание
Количество
90-4487T91
DIFFERENTIAL
Diff Assy (Front)
1шт.
90-4486T91
DIFFERENTIAL
Diff Assy (Rear) (does not include Refs. 2, 17-19, 24, 25, 29 & 46)
1шт.
1
16-1589
NUT
1шт.
16-1590
COTTER PIN,M6.3 x 63
1шт.
90-6566T1
COUPLING FLANGE
Flanged Yoke (Front) (Replaces 90-6431T1)
1шт.
3
90-2509T1
SEALING RING
1шт.
4
90-4517T1
COVER
1шт.
5
90-4516T1
GASKET
1шт.
6
16-1586
SPRING WASHER
Lock Washer
6шт.
7
40-1146
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9
Capscrew
6шт.
8
16-1592
LOCK WASHER
Lock Washer
12шт.
9
16-1621
SCREW,Hex, M14 x 1.5 x 45mm, Gr 10.9
Nut
12шт.
10
16-1582
TAPERED BEARING
Bearing
1шт.
11
90-4515T1
HOUSING
Bearing Housing
1шт.
12
16-1566
SHIM
(1.00 mm)
1шт.
16-1567
SHIM
(.50 mm)
1шт.
16-1568
SHIM
(.30 mm)
1шт.
16-1570
SHIM
(.25 mm)
1шт.
16-1569
SHIM
(.20 mm)
1шт.
13
90-4504T1
SPACER
(4.00 mm)
1шт.
90-4505T1
SPACER
(4.04 mm)
1шт.
90-4506T1
SPACER
(4.08 mm)
1шт.
90-4507T1
SPACER
(4.12 mm)
1шт.
90-4508T1
SPACER
(4.16 mm)
1шт.
90-4509T1
SPACER
(4.20 mm)
1шт.
90-4510T1
SPACER
(4.40 mm)
1шт.
90-4511T1
SPACER
(4.60 mm)
1шт.
90-4512T1
SPACER
(4.80 mm)
1шт.
90-4513T1
SPACER
(5.00 mm)
1шт.
90-4514T1
SPACER
(5.20 mm)
1шт.
14
90-4503T1
SPACER
Sleeve
1шт.
15
16-1565
TAPERED BEARING
Bearing
1шт.
16
90-4502T91
GEAR, BEVEL
Ring Gear & Pinion (Front)
1шт.
90-4501T91
GEAR, BEVEL
Ring Gear & Pinion (Rear) (incl Refs. 1, 44 & 45)
1шт.
17
1-1359
BREATHER
Vent
1шт.
18
31-605
HYD CONNECTOR,1/8"-27 NPTF, Female
Coupling
1шт.
19
31-1841
CONDUIT
Nipple
1шт.
20
90-4491T1
LARGE PLATE
Baffle Plate (Front)
1шт.
90-4490T1
LARGE PLATE
Baffle Plate (Rear)
1шт.
21
16-1186
CAPSCREW,Hex, M8 x 15mm, Cl 10.9
8шт.
22
90-4492T1
LARGE PLATE
Locking Tab
2шт.
23
90-4494T1
LARGE PLATE
Baffle Plate (Front)
1шт.
90-4493T1
LARGE PLATE
Baffle Plate (Rear)
1шт.
24
16-1520
WASHER
Lock Washer
12шт.
16-1521
WASHER
Locking Plate
6шт.
25
16-1519
BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9
Capscrew
18шт.
26
90-4488T91
HOUSING
Diff Housing Assy (incl Refs. 27, 28 & 30)
1шт.
27
16-1528
BOLT,Hex, M24 x 2 x 117mm, Cl 10.9
Capscrew
2шт.
28
90-4489T1
WASHER
2шт.
29
16-1514
DOWEL
Pin
2шт.
30
NSS
NOT SOLD SEPARAT
Bearing Cap
1шт.
31
16-1525
LARGE PLATE
Locking Tab Washer
1шт.
16-1526
LARGE PLATE
Locking Tab Washer
1шт.
16-1527
LARGE PLATE
Locking Tab Washer
1шт.
32
16-1523
BEARING ASSY,85mm ID x 130mm OD x 29mm W
Bearing
2шт.
33
16-1522
SLOTTED NUT
Retaining Ring
2шт.
34
16-1524
LARGE PLATE
Locking Plate
2шт.
35
16-1564
BAFFLE
Oil, Plate
1шт.
16-1547
DIFFERENTIAL
Diff Assy, consists of Ref. 36-43
1шт.
36
16-1548
CAGE ASSY.
Diff Case Halves consists of Refs. 35 & 43)
1шт.
37
16-1563
WASHER
4шт.
38
16-1562
BUSHING
4шт.
39
16-1561
PINION
Gear consists of Ref. 38)
4шт.
40
16-1560
DIFF. SPIDER
Spider
1шт.
41
16-1559
PINION
Gear
2шт.
16-1552
SPACER
(4.7 mm)
2шт.
16-1553
SPACER
(4.8 mm)
2шт.
16-1554
SPACER
(4.9 mm)
2шт.
16-1555
SPACER
(5.0 mm)
2шт.
16-1566
SHIM
Spacer (5.1 mm)
2шт.
16-1557
SPACER
(5.2 mm)
2шт.
16-1558
SPACER
(4.4 mm)
2шт.
43
16-1543
SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9
Capscrew
12шт.
44
16-1545
HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9
Capscrew
12шт.
45
19-1546
Locking Plate
6шт.
46
16-1531
GASKET
1шт.
47
16-1544
LARGE PLATE
Locking Plate
4шт.
Выбрано товаров: 79
