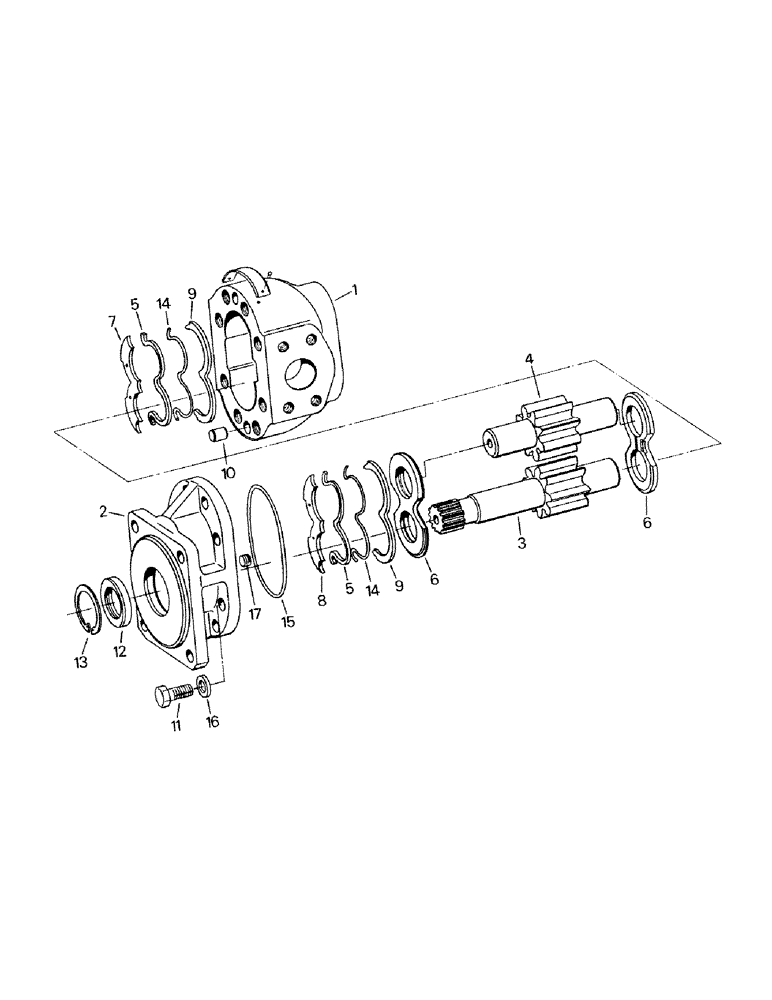

Запчасти Case IH STEIGER (04-30) - TRANSMISSION LUBE PUMP ASSEMBLY (04) - Drive Train

S8000S00G

PUMP

Trans Lube Pump Assy, consists of Ref. 1-17

1шт.

S8210S00G

PACKAGE, REPAIR

Repair Kit, Includes: Ref. 5, 10, 12, 13, 14 and 15

1шт.

1

S8010S00G

BODY

1шт.

2

S8020S00G

COVER

1шт.

3

S8030S00G

GEAR-SET

Drive Gear

1шт.

4

S8040S00G

GEAR, IDLER

Idler Gear

1шт.

5

S8050S00G

PLATE

Backup Ring

2шт.

Part of repair kit. P/N S8210S00G

1шт.

6

S8060S00G

PLATE

Press. Plate

2шт.

7

S8070S00G

PLATE

Isolation Plate

1шт.

8

S8080S00G

PLATE

Isolation Plate

1шт.

9

S8090S00G

RING

Retainer Ring

2шт.

10

S8100S00G

DOWEL

Pin

2шт.

Part of repair kit. P/N S8210S00G

1шт.

11

S8110S00G

CAPSCREW

8шт.

12

S8120S00G

OIL SEAL

Seal

1шт.

Part of repair kit. P/N S8210S00G

1шт.

13

S8130S00G

RING, SNAP

Snap Ring

1шт.

Part of repair kit. P/N S8210S00G

1шт.

14

S8140S00G

O-RING

2шт.

Part of repair kit. P/N S8210S00G

1шт.

15

S8150S00G

O-RING

1шт.

Part of repair kit. P/N S8210S00G

1шт.

16

S8160S00G

WASHER

8шт.

17

S8170S00G

PLUG

1шт.
