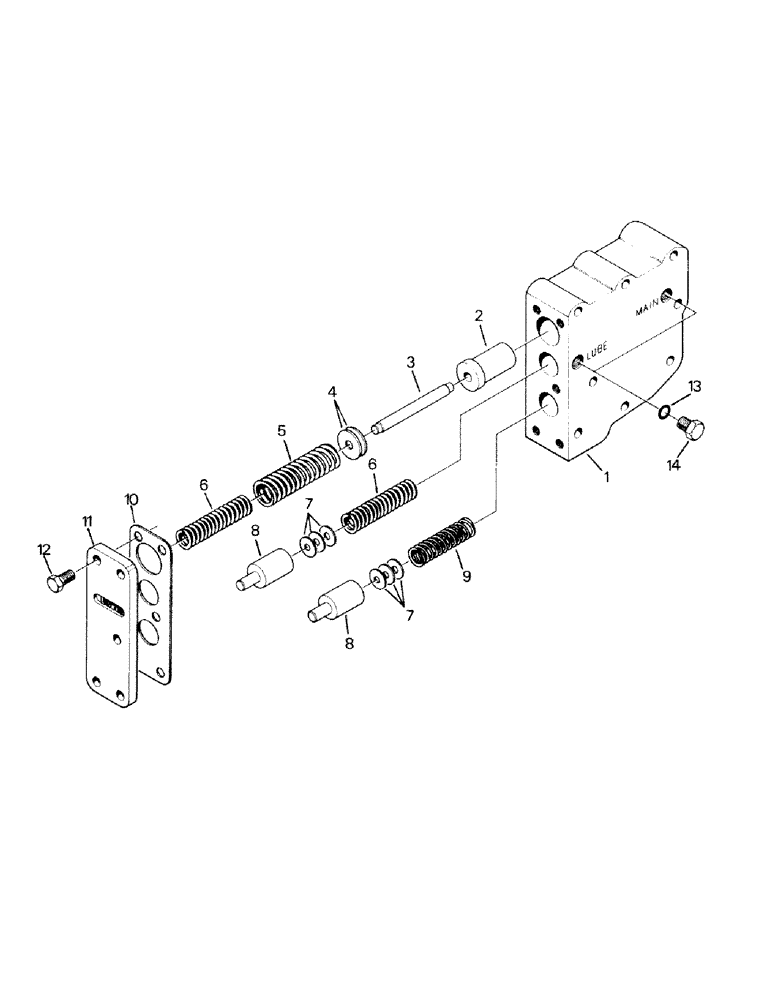

Запчасти Case IH STEIGER (04-29) - TRANSMISSION REGULATOR VALVE ASSEMBLY (04) - Drive Train

S7000S00F

VALVE

Regulator Valve Assy

1шт.

1

S7040S00F

VALVE BODY

Regulator Valve Body

1шт.

2

S703SS00F

Regulator Valve

1шт.

3

S7020S00F

STEM

Pressure Rod

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

1шт.

6

S7050S00F

SPRING

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7060S00F

VALVE

Lube Valve

2шт.

9

S7070S00F

SPRING

1шт.

10

S7090S00F

GASKET

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

11

S7110S00F

COVER

Valve Body Cover

1шт.

12

SM8120820

BOLT

Capscrew

5шт.

13

S1040S00F

O-RING

2шт.

14

S1030S00F

PLUG

(incl Ref. 13)

2шт.

S1670S00F

GASKET

TRANS GASKET OVERHAUL KIT, Includes Ref. 10

1шт.
