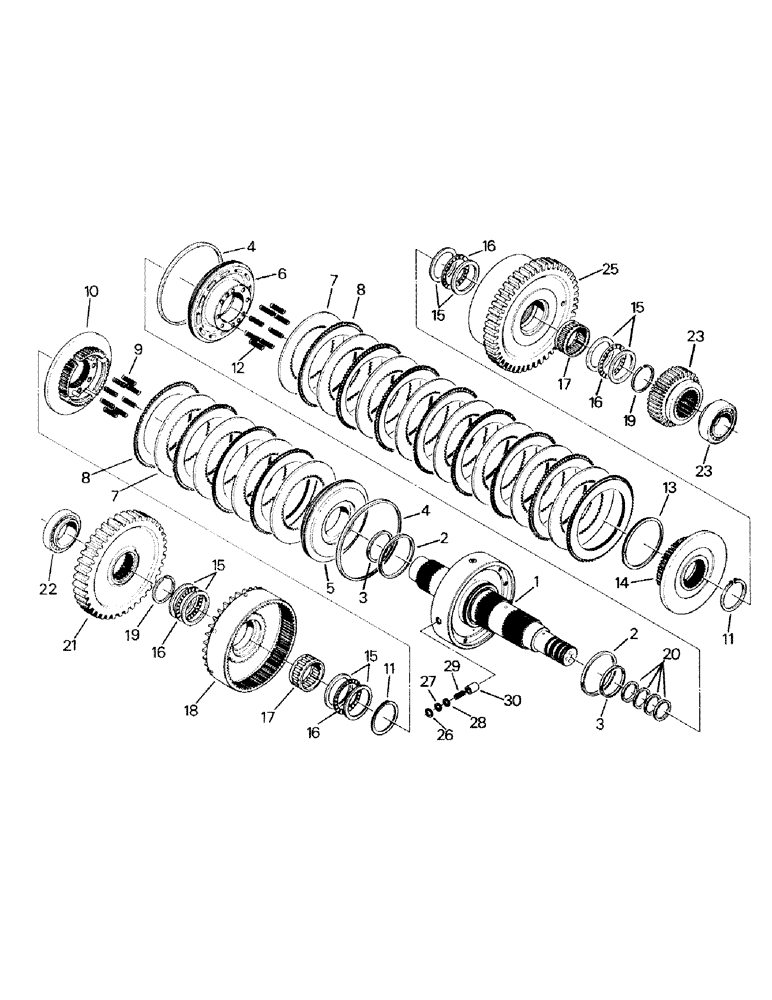

Запчасти Case IH STEIGER (04-27) - 9" CLUTCH PACK ASSEMBLY (04) - Drive Train

S5000S00F

CLUTCH HOUSING

9" Clutch Shaft Assy, consists of Ref. 1-30

1шт.

1

S5900S00F

SHAFT ASSY.

Drum Shaft Assy

1шт.

2

S5520S00F

RING

Piston Ring

2шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

3

S5510S00F

RING

Piston Ring

2шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

4

S4430S00F

RING

Sealing Ring

2шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

5

S5760S00F

PISTON

Clutch Piston

1шт.

6

S5180S00F

PISTON

Clutch Piston

1шт.

7

S5120S00F

CLUTCH DISC

Steel Plate

1шт.

Flat 2.6 mm, a total set of 12 pieces must be used

1шт.

S5130S00F

CLUTCH DISC

Steel Plate

1шт.

Flat 2.4 mm, a total set of 12 pieces must be used

1шт.

8

S5570S00F

LARGE PLATE

Faced Plate

12шт.

9

S5550S00F

SPRING

Return Spring

8шт.

10

S5850S00G

HUB

Clutch Hub

1шт.

11

S5100S00F

RING, SNAP

Snap Ring

2шт.

12

S5540S00F

SPRING

Return Spring

8шт.

13

S5490S00F

RING

Retaining Ring

1шт.

14

S5840S00G

HUB

Clutch Hub

1шт.

15

S5230S00F

BEARING WASHER

Thrust Washer

8шт.

16

S5050S00F

THRUST BEARING

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

Needle Bearing

2шт.

18

S5080S00F

PINION

Clutch Gear

1шт.

19

S5040S00F

RING

Retaining Ring

2шт.

20

S3070S00F

RING

Sealing Ring

4шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

21

S5060S00F

PINION

Input Gear

1шт.

22

1-1584

BEARING CUP,4.4375" OD x 1.1875"

1шт.

90-1319T1

ROLLER BEARING,2.5" ID x 1.1875"

Bearing Cone

1шт.

23

S5270S00F

PINION

Gear

1шт.

24

90-6579T1

BEARING CUP

Bearing Cup

1шт.

1-1583

ROLLER BEARING,2.625" ID x 1.1875"

Bearing Cone

1шт.

25

S5280S00F

GEAR

Clutch Gear

1шт.

26

SM9222160

RING, SNAP

Snap Ring

2шт.

27

S3220S00F

SHIM

1шт.

28

S3230S00F

SHIM

1шт.

29

S3210S00F

SPRING

Valve Spring

2шт.

30

S3200S00F

DRAIN VALVE

2шт.

S1670S00F

GASKET

TRANS GASKET OVERHAUL KIT, Includes Ref. 2, 3, 4 and 20

1шт.
