Запчасти Case IH STEIGER (04-21) - TRANSMISSION ASSEMBLY (04) - Drive Train

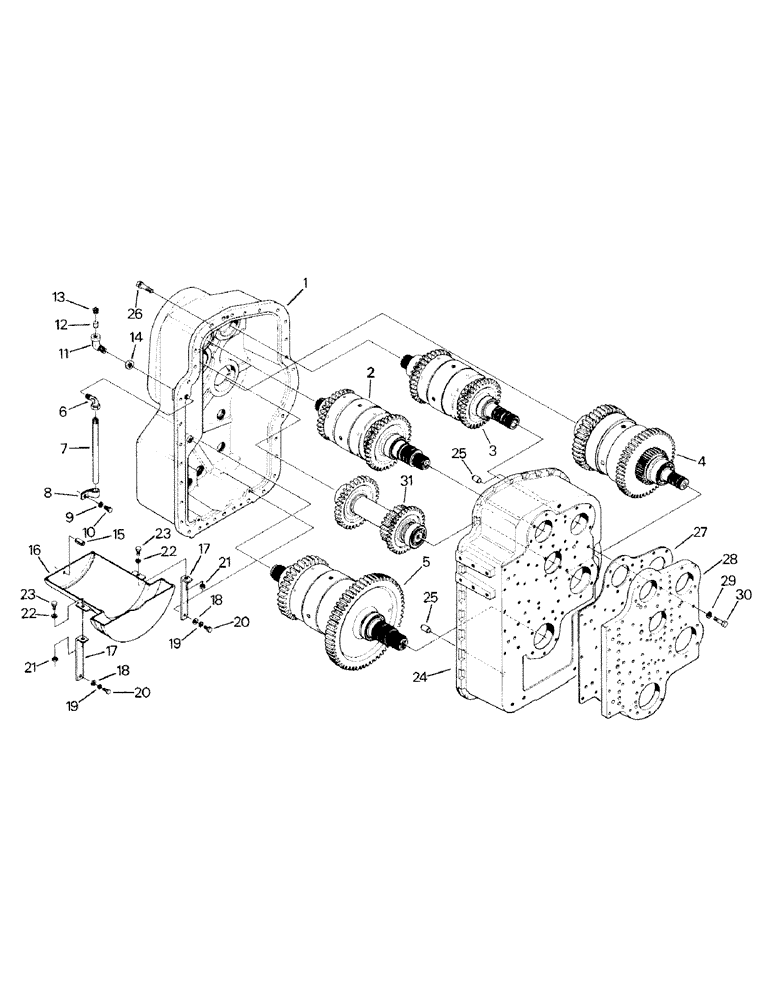

Схема запчастей Case IH STEIGER - (04-21) - TRANSMISSION ASSEMBLY (04) - Drive Train
17
12
20
30
6
25
5
8
17
21
23
3
13
22
9
27
16
11
20
2
4
29
14
19
24
18
7
23
25
26
22
28
1
31
21
15
10
18
19

Артикул

Название

Примечание

Количество

1

S0010S00F

Rear Housing

1шт.

2

7" Clutch Assy (Input) (see Fig. 4-23)

1шт.

3

7" Clutch Pack Assy (see Fig. 4-24)

1шт.

4

9" Clutch Pack Assy (see Fig. 4-27)

1шт.

5

8" Clutch Pack Assy (see Fig. 4-25)

1шт.

6

S0740S00F

Elbow

1шт.

7

S0730S00F

Breather

1шт.

8

S0750S00F

Clamp

1шт.

9

SM8915142

WASHER

1шт.

10

SM8124225

BOLT

Capscrew

1шт.

11

S0540S00F

Tube

1шт.

12

S0530S00F

Breather Filter

1шт.

13

SAS99900F

PLUG

1шт.

14

SM8911246

NUT

1шт.

15

S0150S00F

Roll Pin

1шт.

16

S0210S00F

Oil Baffle

1шт.

17

S0200S00F

Oil Baffle Strap

2шт.

18

SM8915442

WASHER

2шт.

19

SM8915142

WASHER

Lock Washer

2шт.

20

SM8124225

BOLT

Capscrew

2шт.

21

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

22

SM8915440

WASHER

2шт.

23

SM8124020

BOLT

Capscrew

2шт.

24

S1400S00F

HOUSING

Front Housing

1шт.

25

S0660S00F

Dowel Pin

2шт.

26

SM8121240

BOLT

Capscrew

30шт.

27

S1590S00F

GASKET

1шт.

Included in P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

28

S1580S00F

LARGE PLATE

Oil Supply Plate

1шт.

29

SM8915140

PLATE, LOCKING

Lock Washer

7шт.

30

SM8124045

BOLT

Capscrew

7шт.

31

Compound Shaft (see Fig. 4-22)

1шт.

Выбрано товаров: 32
