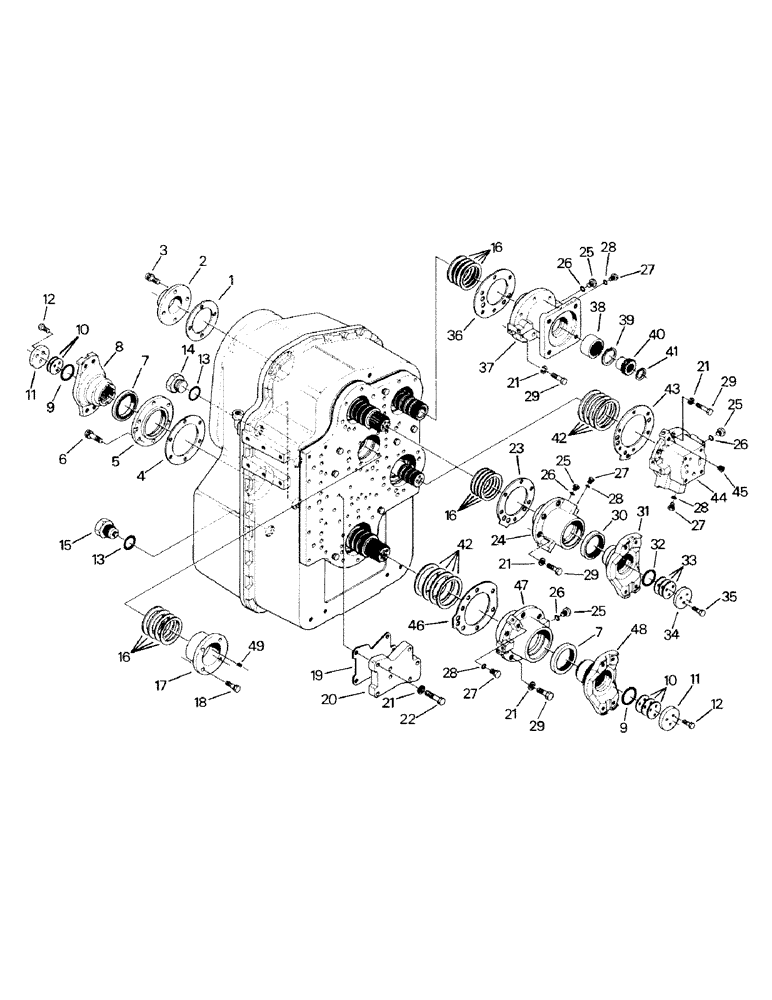

Запчасти Case IH STEIGER (04-19) - TRANSMISSION ASSEMBLY (04) - Drive Train

1

S0710S00F

Gasket

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

2

S0400S00F

PTO Shaft Cover (w/o PTO only)

1шт.

3

SM8124230

BOLT

Capscrew

4шт.

4

S0100S00F

Gasket

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

5

S0110S00F

Bearing Retainer

1шт.

6

SM8124230

BOLT

Capscrew

6шт.

7

S0240S00F

Seal

2шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

8

S0120S00F

Output Yoke

1шт.

9

S0130S00F

O-Ring

2шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

10

S0490S00F

Shim (0.10 mm)

1шт.

S0500S00F

Shim (0.30 mm)

1шт.

11

S0270S00F

Retainer Washer

1шт.

12

SM8134235

BOLT

Capscrew

6шт.

13

S1080S00F

O-RING

4шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

14

S1010S00F

PLUG, DRAIN

Drain Plug (incl Ref. 13)

3шт.

15

S1090S00F

PLUG

Magnetic Plug (incl Ref. 13)

1шт.

16

S0550S00F

Shim (0.10 mm)

1шт.

S0560S00F

Shim (0.30 mm)

1шт.

S0570S00F

Shim (0.50 mm)

1шт.

S0580S00F

Shim (0.70 mm)

1шт.

S0800S00F

Shim (0.15 mm)

1шт.

17

S0350S00F

Bearing Retainer

1шт.

18

SM8124050

BOLT

Capscrew

4шт.

19

S1610S00F

GASKET

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

20

S1600S00F

LARGE PLATE

Oil Supple Plate

1шт.

21

SM8915140

PLATE, LOCKING

Lock Washer

31шт.

22

SM8124070

BOLT

Capscrew

7шт.

23

S0380S00F

Gasket

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

24

S0390S00F

Oil Supply Cover

1шт.

25

S1390S00F

PLUG

(incl Ref. 26)

8шт.

26

S1320S00F

O-RING

8шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

27

S1030S00F

PLUG

(incl Ref. 28)

5шт.

28

S1040S00F

O-RING

5шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

29

SM8124060

BOLT

Capscrew

24шт.

30

S0030S00F

SEAL

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

31

S0020S00F

Input Yoke

1шт.

32

S0060S00F

O-Ring

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

33

S0630S00F

Shim (0.10 mm)

1шт.

S0640S00F

Shim

1шт.

S0650S00F

Shim

1шт.

34

S0040S00F

Retainer Washer

1шт.

35

SM8134035

BOLT

Capscrew

3шт.

36

S0670S00F

Gasket

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

37

S0430S00F

Oil Pump Support

1шт.

38

S0450S00F

Pump Coupling

1шт.

39

S0460S00F

Snap Ring

1шт.

40

S0480S00F

Pump Adapter

1шт.

41

S0470S00F

Snap Ring

1шт.

42

S0590S00F

Shim (0.10 mm)

1шт.

S0600S00F

Shim (0.30 mm)

1шт.

S0610S00F

Shim (0.50 mm)

1шт.

S0620S00F

Shim (0.70 mm)

1шт.

S0810S00F

Shim (0.15 mm)

1шт.

43

S0300S00F

Gasket

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

44

S0360S00F

Clutch Collector

1шт.

45

STX99700F

PLUG

1шт.

46

S0220S00F

Gasket

1шт.

Part of P/N S1670S00F Trans Gasket Overhaul Kit

1шт.

47

S0230S00F

Bearing Retainer

1шт.

48

S0250S00F

Yoke

1шт.

49

S0370S00F

Orifice Plug

2шт.

S1670S00F

GASKET

TRANS GASKET OVERHAUL KIT, Includes Ref. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46

1шт.
