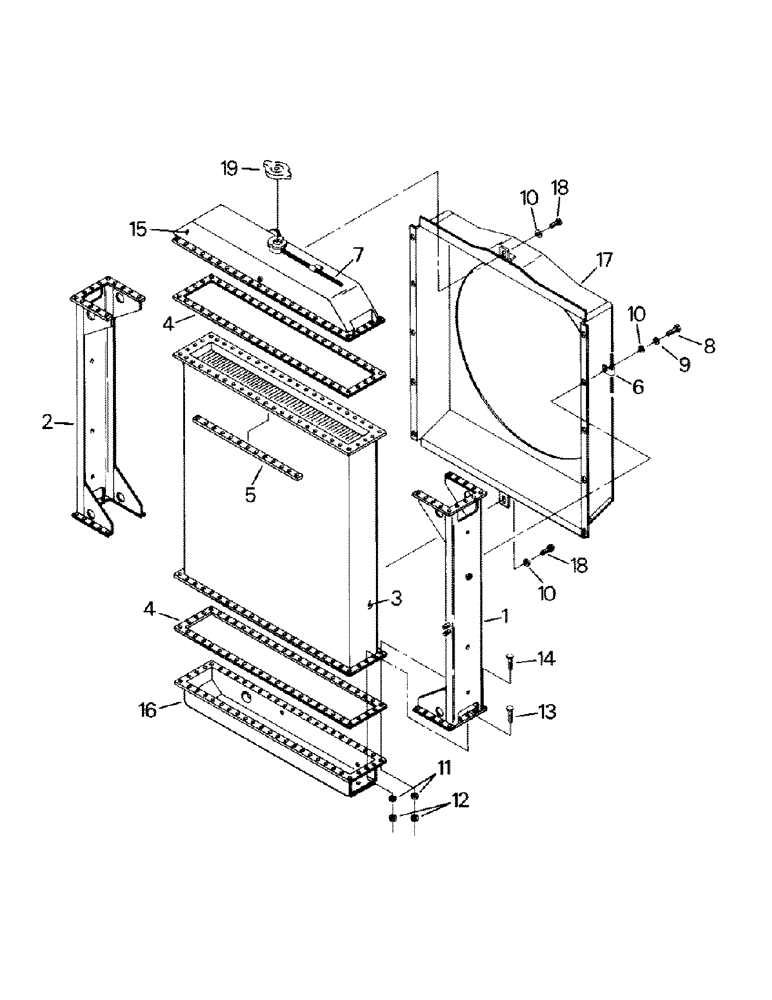

Запчасти Case IH STEIGER (04-16) - RADIATOR ASSEMBLY (04) - Drive Train

90-1713T92

RADIATOR

Assy.,Figure 02-25., consists of Ref, 1 - 20

1шт.

335 HP Cat 3406 Engine

1шт.

90-3516T92

RADIATOR

Assy., consists of Ref. 1 - 20

1шт.

335 HP Cimmins 855 engine

1шт.

90-1054T92

RADIATOR

Assy., consists of Ref. 1 - 20

1шт.

375 HP Cat 3406 engine

1шт.

90-3517T92

RADIATOR

Assy., consists of Ref. 1 - 20

1шт.

375 HP Cummins 855 engine

1шт.

1

90-1518T2

FRAME

Radiator Frame, left

1шт.

2

90-1517T2

FRAME

Radiator Frame, right

1шт.

3

90-2359T1

CORE

3" thick, 335 HP Cat 3406 engine and 335 HP Cummuns 855 engine

1шт.

335 HP Cat 3406 engine and 335 HP Cummuns 855 engine

1шт.

90-1534T1

CORE

4-1/2" thick, 375 HP Cat 3406 engine and 375 HP Cummins 855 engine

1шт.

4

90-1529T1

GASKET

Header Gasket

2шт.

5

90-1530T1

BAR

Header Bar

4шт.

6

31-2173

CLIP

Clamp

2шт.

7

31-1260

HOSE,0.25" ID x 57.00"

1шт.

8

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw, 1/4 UNC x 3/4

10шт.

9

19-115

LOCK WASHER,1/4"

1/4"

10шт.

10

19-223

WASHER,1/4"

1/4

12шт.

11

19-116

LOCK WASHER,5/16"

5/16"

108шт.

12

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

108шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew, 5/16 UNC x 1 G-5

100шт.

14

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Capscrew, 516 UNC x 1-1/4 G-5

8шт.

15

90-1531T2

TANK

Top Tank

1шт.

16

90-1532T1

TANK

Bottom Tank

1шт.

17

90-1522T2

SHROUD

34"

1шт.

335 HP and 375 HP Cat 3406 engines

1шт.

90-3514T2

SHROUD

32"

1шт.

335 HP anf 375 HP Cummins 855 engines

1шт.

18

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew, 1/4 UNC x 5/8 G-5

2шт.

19

10-21

CAP

Radiator Cap

1шт.

20

1-1055

SEALANT

RTV Sealant, not shown

1шт.
