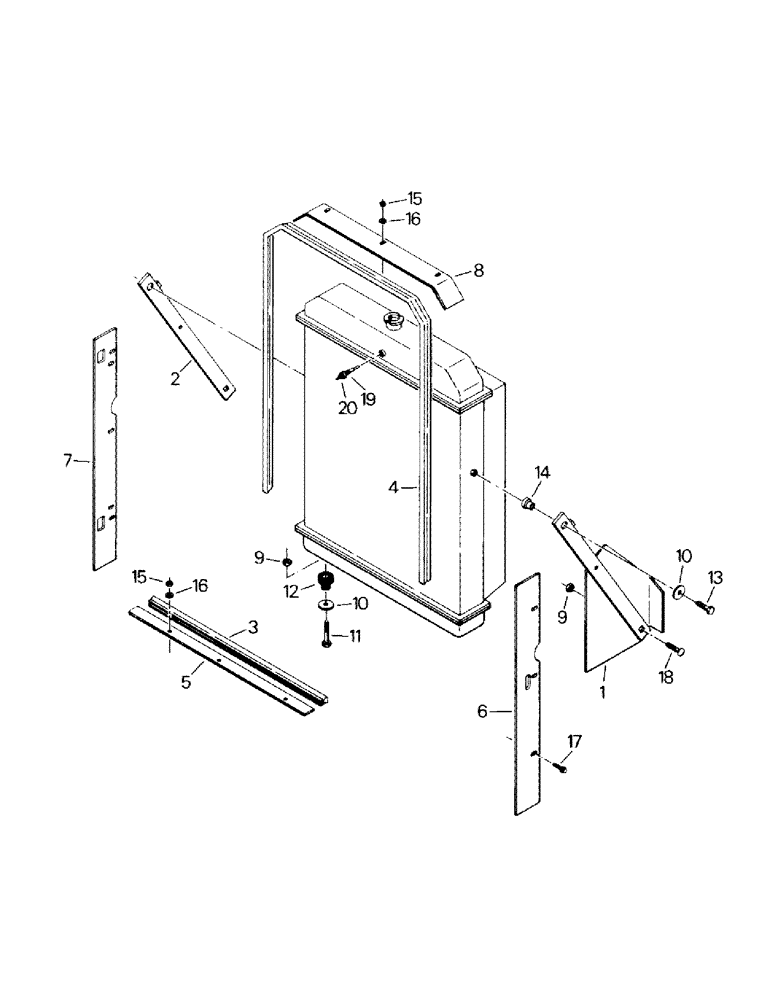

Запчасти Case IH STEIGER (04-13) - RADIATOR MOUNTING (04) - Drive Train

1

70-2825T1

SUPPORT

Radiator Support (Left)

1шт.

2

70-2823T1

SUPPORT

Radiator Support (Right)

1шт.

3

90-2896T1

SEAL

1шт.

4

70-2821T1

SEAL

1шт.

5

90-3534T1

PLATE

1шт.

6

70-2818T1

STRIP

(Left)

1шт.

7

70-2819T1

STRIP

(Right)

1шт.

8

70-2820T1

STRIP

1шт.

9

19-82

LOCK NUT

Lock Nut, 1/2 UNC G-B

4шт.

10

19-806

WASHER

1/2 x 2 x 1/8 Thk

4шт.

11

19-48

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Capscrew, 1/2 UNC x 3 G-5

2шт.

12

47-4208

RUBBER BUSHING

Rubber Mount

2шт.

13

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

Capscrew, 1/2 UNC x 1-3/4 G-5

2шт.

14

18-511

MOUNTING PARTS

Center Mount

2шт.

15

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

6шт.

16

19-700

WASHER,5/16"

3/8

6шт.

17

9416625

SCREW

Tapping Screw, 5/16 UNC x 1/2

6шт.

18

120917

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 UNC x 1-1/2

2шт.

19

20-1248T1

SENSOR

Probe

1шт.

20

19-481

SERRATED NUT

Keps Nut, #10 UNF G-B

1шт.

21

Radiator Assy (see Fig. 4-16)

1шт.
