(04-04) - ALTERNATOR & MOUNTING, CUMMINS 855 ENGINE

Запчасти Case IH STEIGER (04-04) - ALTERNATOR & MOUNTING, CUMMINS 855 ENGINE (04) - Drive Train

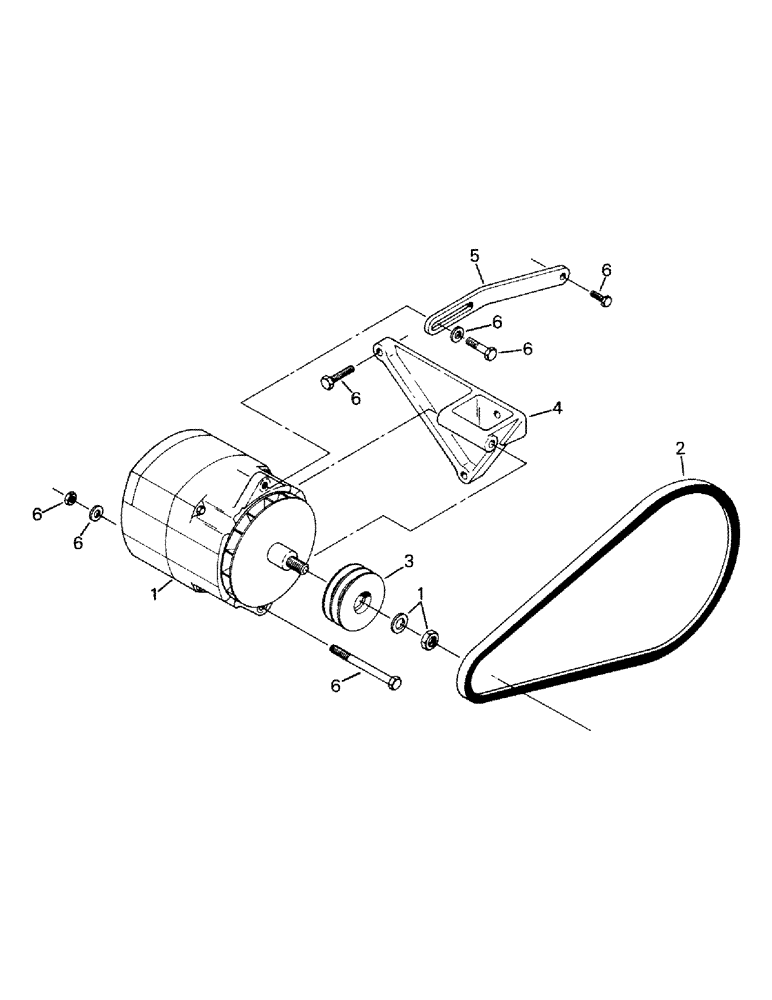

Схема запчастей Case IH STEIGER - (04-04) - ALTERNATOR & MOUNTING, CUMMINS 855 ENGINE (04) - Drive Train
6
1
3
6
2
4
1
6
6
6
6
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Alt Assy (see Fig. 2-4)

1шт.

2

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator (Set of 2) 0.53" W x 45.92" L

1шт.

3

22-741

PULLEY

Alt Pulley

1шт.

4

NAP

Alt Mount (Cummins Part)

1шт.

5

NAP

Adjusting Bracket (Cummins Part)

1шт.

6

NAP

Misc Mounting Hardware (Cummins Parts)

1шт.
