(03-08) - CLIMATE CONTROL MODULE ELECTRICAL

Запчасти Case IH STEIGER (03-08) - CLIMATE CONTROL MODULE ELECTRICAL (03) - Climate Control

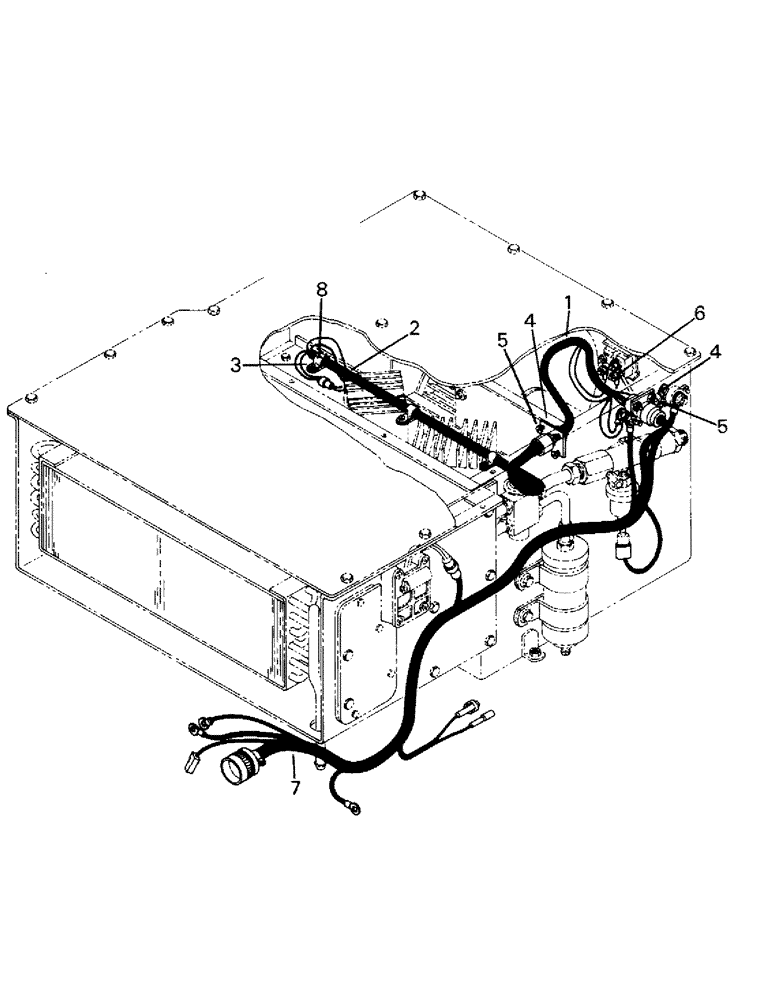

Схема запчастей Case IH STEIGER - (03-08) - CLIMATE CONTROL MODULE ELECTRICAL (03) - Climate Control
3
5
2
1
7
6
4
5
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-1397T4

HARNESS

Wire Harness

1шт.

2

20-1602T1

HARNESS

Wire Harness

1шт.

3

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw, #10 UNC x 1/2

3шт.

4

19-5754

NUT,#4-40, GB

Lock Nut, #4 UNC G-A

8шт.

5

363-3046

SCREW,Hex Wash Hd, #4-40 x 3/8"

Machine Screw, #4 UNC x 3/8

8шт.

6

20-1947T1

ELECTRICAL WIRE

Wire

2шт.

7

20-2072T1

HARNESS

Wire Harness

1шт.

8

22-635

MOUNTING CLIP

Clip

3шт.

Выбрано товаров: 8
