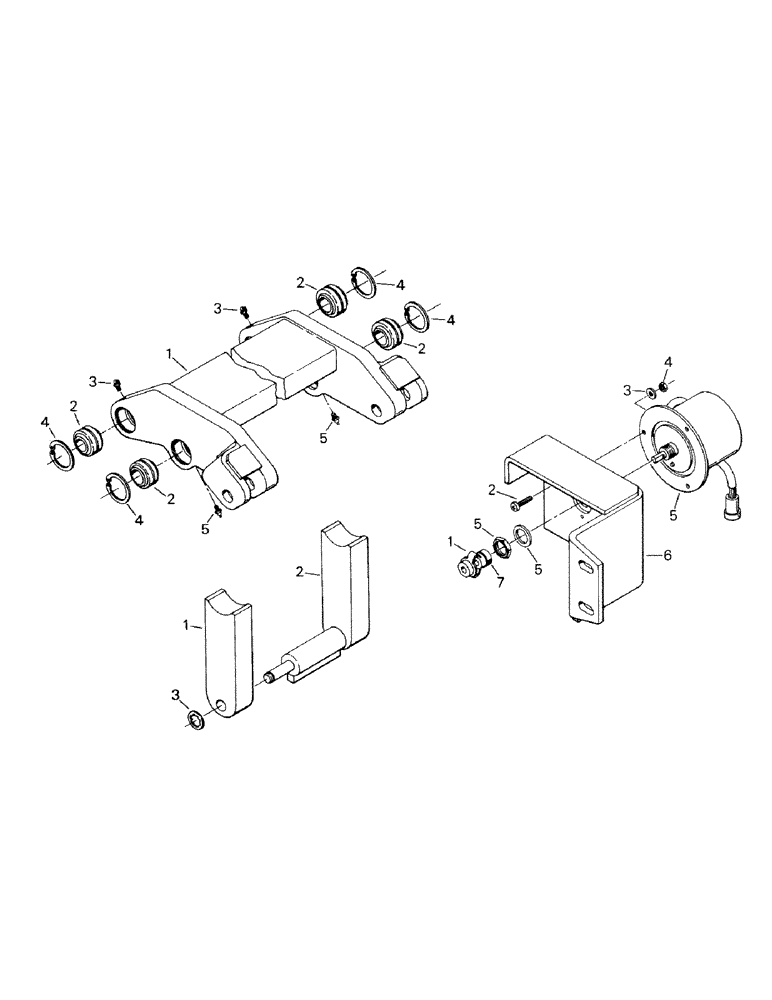

Запчасти Case IH STEIGER (10-04) - 3-PT HITCH COMPONENTS Options & Miscellaneous

2-3663T92

SHAFT

Rockershaft Assy, consists of Ref. 1-5

1шт.

1

2-3592T4

SHAFT

Rockershaft

1шт.

2

2-3644T1

RING RACE

Spherical Bearing

4шт.

3

31-93

FITTING

Grease Fitting, 1/8 NPT

2шт.

4

19-5693

RING

Snap Ring

4шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

70-2724T91

BLOCK ASSY.

Clevis Locking Block Assy, consists of Ref. 1-3

1шт.

1

70-2730T1

CLEVIS

Insert Clevis

1шт.

2

70-2732T1

CLEVIS

1шт.

3

19-6078

RING, SNAP

Retaining Ring

1шт.

20-1653T91

NUT

Position Control Assy, consists of Ref. 1-7

1шт.

1

2-4108T1

COUPLING

Flexible Coupling

1шт.

2

19-5700

SCREW,Sl Hex Wshr Hd, #6 - 32 x 1/2"

Machine Screw, #6 UNC x 1/2

3шт.

3

19-601

LOCK WASHER,Ext, #6

#6

3шт.

4

19-1013

NUT

#6 UNC

3шт.

5

20-1654T1

AMPLIFIER

1шт.

6

20-1652T1

MOUNTING PARTS

Mount

1шт.

7

9419956

SCREW,Hex Skt, #6 - 32 x 3/8", Gr 8

Socket Head Capscrew, #6 UNC x 3/8

2шт.
