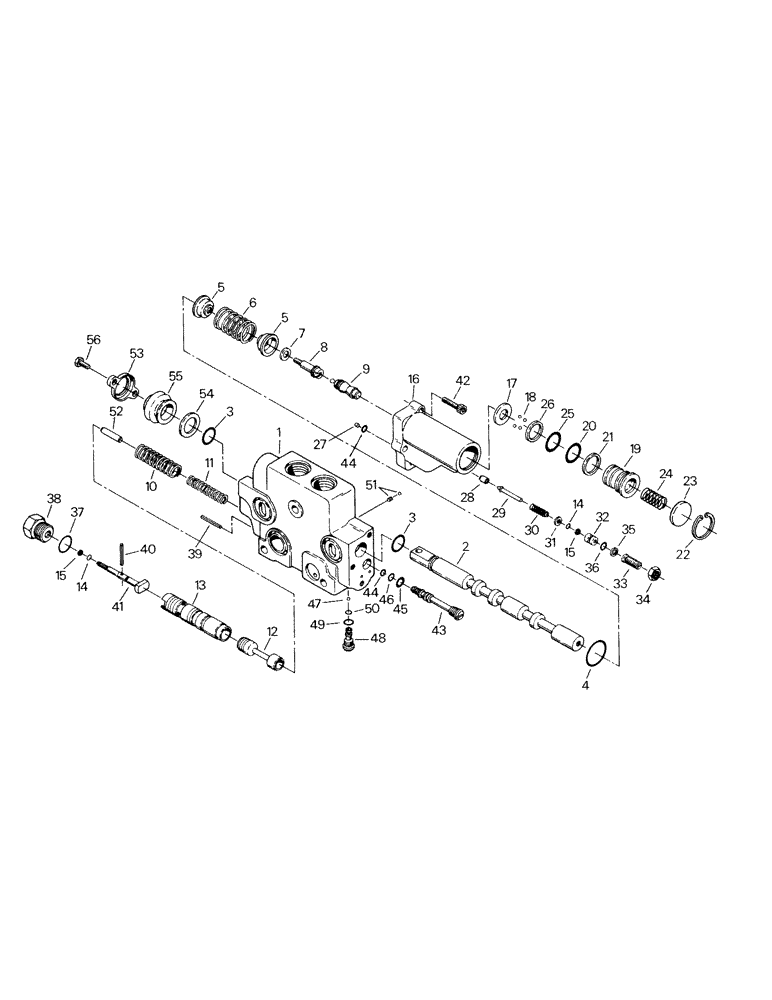

Запчасти Case IH STEIGER (08-20) - VALVE SECTION ASSEMBLY, STANDARD (07) - HYDRAULICS

50-2302T91

ASSEMBLY

Float Section Assy (Standard), consists of Refs. 1-56

1шт.

50-2735T91

Float Section Assy (Manual 3-Pt Hitch only)

1шт.

50-2386T1

SEAL KIT

Seal Kit, Included: Ref. 10, 11, 14, 15, 37, 39 and 40

1шт.

50-2387T1

SEAL KIT

Seal Kit, Included: Ref. 4, 14, 15, 20, 21, 25, 26, 29, 29, 35, 36 and 44

1шт.

50-2388T1

SEAL KIT

Seal Kit, Included: Ref. 3, 4, 14, 15, 18, 20, 21, 25, 26, 31, 35, 36, 37, 44, 45, 46, 49 and 50

1шт.

50-1655T1

SEAL KIT

Seal Kit, Included: Ref. 44, 45 and 46

1шт.

1

NSS

NOT SOLD SEPARAT

Float Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

Part of seal kit. P/N 50-2388T1

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

5

50-1774T1

RETAINER

Spring Retainer

2шт.

6

50-1773T1

SPRING

Centering Spring

1шт.

7

50-1772T1

SPACER

Detent Spacer

1шт.

8

50-1863T1

COUPLING, BREAK AWAY

Detent Coupling Pivot

1шт.

9

NSS

NOT SOLD SEPARAT

Detent Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

12

50-2374T1

SPOOL

1шт.

13

50-2375T1

TUBE

1шт.

50-2378T91

HOUSING

Detent Housing Assy, consists of Refs. 14-36

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

15

NSS

NOT SOLD SEPARAT

Backup Ring

2шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

16

NSS

NOT SOLD SEPARAT

Kickout Housing

1шт.

17

50-2379T1

WASHER

Guide Washer

1шт.

18

NSS

NOT SOLD SEPARAT

Ball Bearing

8шт.

Part of seal kit. P/N 50-2388T1

1шт.

19

50-2380T1

PISTON

Kickout Piston

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

21

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

22

50-2381T1

RING, SNAP

Snap Ring

1шт.

23

50-2382T1

RETAINER

Piston Retainer

1шт.

24

50-2383T1

SPRING

Detent Spring

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

26

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

27

50-1663T1

PLUG

Orifice Plug

1шт.

28

50-1668T1

SEAT

Pilot Seat

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

29

NSS

NOT SOLD SEPARAT

Relief Spring

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

31

NSS

NOT SOLD SEPARAT

Washer

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

32

50-2384T1

GOVERNOR

Regulator Piston

1шт.

33

50-1717T1

SET SCREW

Set Screw

1шт.

34

19-868

JAM NUT,Jam, 3/8"-24, G5

Jam Nut, 3/8 UNF G-B

1шт.

35

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

36

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

37

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

38

50-2376T1

PLUG

1шт.

39

NSS

NOT SOLD SEPARAT

Spring Pin

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

40

NSS

NOT SOLD SEPARAT

Spring Pin

1шт.

Part of seal kit. P/N 50-2386T1

1шт.

41

50-2377T1

SHAFT

Adjusting Shaft

1шт.

42

19-960

HEX SOC SCREW,1/4"-20 x 1"

Socket Head Capscrew, 1/4 UNC x 1 G-8

3шт.

50-1669T91

HOUSING

Primary Housing Assy (Standard), consists of Refs. 43-46

1шт.

50-2733T91

HOUSING ASSY.

Primary Housing Assy (Manual 3-Pt Hitch only)

1шт.

43

NSS

NOT SOLD SEPARAT

Primary Housing

1шт.

44

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-2387T1

1шт.

Part of seal kit. P/N 50-1655T1

1шт.

45

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-1655T1

1шт.

46

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

Part of seal kit. P/N 50-1655T1

1шт.

47

104916

BALL BEARING,0.1875 mm OD

Bearing

1шт.

50-1649T91

PLUG

Shuffle Plug Assy, consists of Refs. 48-50

1шт.

48

NSS

NOT SOLD SEPARAT

Shuffle Plug

1шт.

50-1654T1

SEAL KIT

Kit, consists of Refs. 49, 50

1шт.

49

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

50

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of seal kit. P/N 50-2388T1

1шт.

51

50-2566T1

PLUG

Expansion Plug

1шт.

52

50-2385T1

GUIDE PIN

1шт.

53

50-2494T1

RETAINER

Dust Guard Retainer

1шт.

54

50-2493T1

FILTER

1шт.

55

50-2495T1

COVER

Boot

1шт.

56

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew, 1/4 UNC x 5/8 G-5

2шт.
