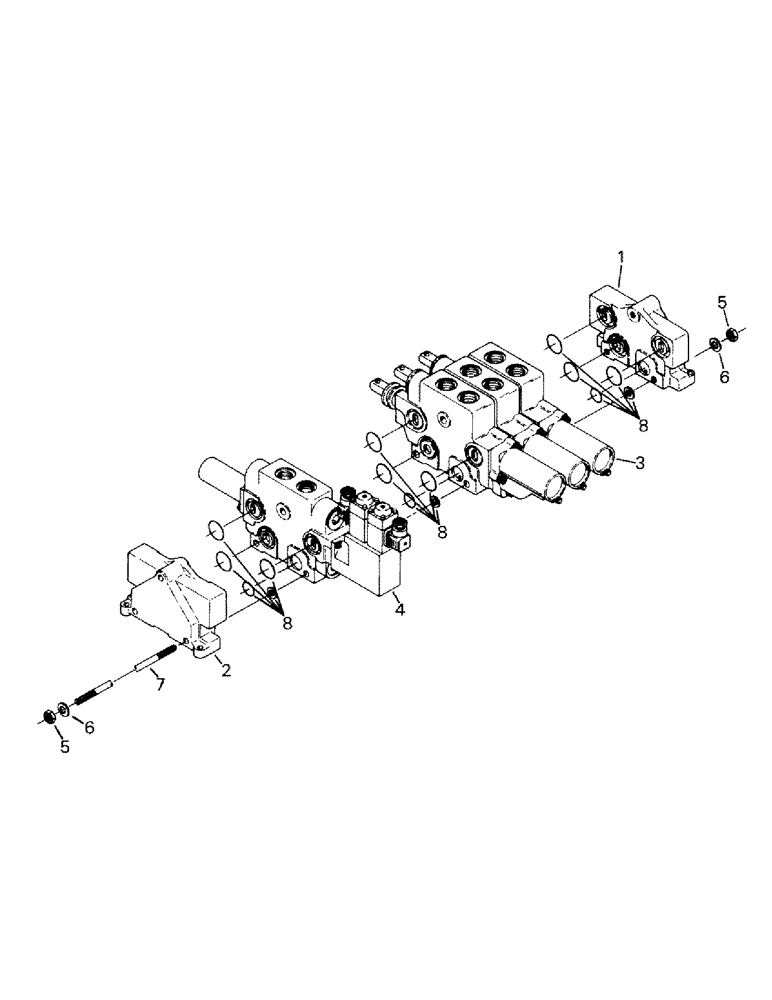

Запчасти Case IH STEIGER (08-19) - CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-2218T91

VALVE

Hydraulic Control Valve Assy (3-Spool)

1шт.

50-2220T91

VALVE, CONTROL

Hydraulic Control Valve Assy (3-Spool with 3-Pt Hitch)

1шт.

50-2972T91

VALVE, CHECK

Hydraulic Control Valve Assy (3-Spool with 3-Pt Hitch) consists of Ref. 9)

1шт.

2972T91 - Use 50-2220T91 Valve & 20-1580T1 Harness.

1шт.

50-2219T91

VALVE, CONTROL

Hydraulic Control Valve Assy (4-Spool)

1шт.

1

50-1730T1

COVER

Valve Cover

1шт.

2

50-1731T1

COVER

Valve Cover

1шт.

3

Valve Section Assy (Standard) (qty 3 with 3-Spool Valve) (see Fig. 8-20)

4шт.

4

Valve Section Assy (Solenoid) (only used with 3-Pt Hitch) (see Fig. 8-22)

1шт.

5

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

6шт.

6

19-117

LOCK WASHER,3/8"

3/8"

6шт.

7

19-5978

STUD

(3-Spool Valve)

3шт.

19-5977

STUD

(3-Spool Valve with 3-Pt Hitch & 4-Spool Valve)

3шт.

8

2-3792T1

SEAL KIT

Seal Kit (qty varies)

1шт.

One seal kit is needed between each valve section.

1шт.

9

20-1580T1

HARNESS

Control Valve Wire Harness (only used with 3-Pt Hitch) (not shown)

1шт.
