(STEIGER) - LION 1000-SERIES POWERSHIFT 4WD TRACTOR (11/86-8/88)
/
(07) - HYDRAULICS
/

(08-18) - COUPLER ASSEMBLY

Запчасти Case IH STEIGER (08-18) - COUPLER ASSEMBLY (07) - HYDRAULICS

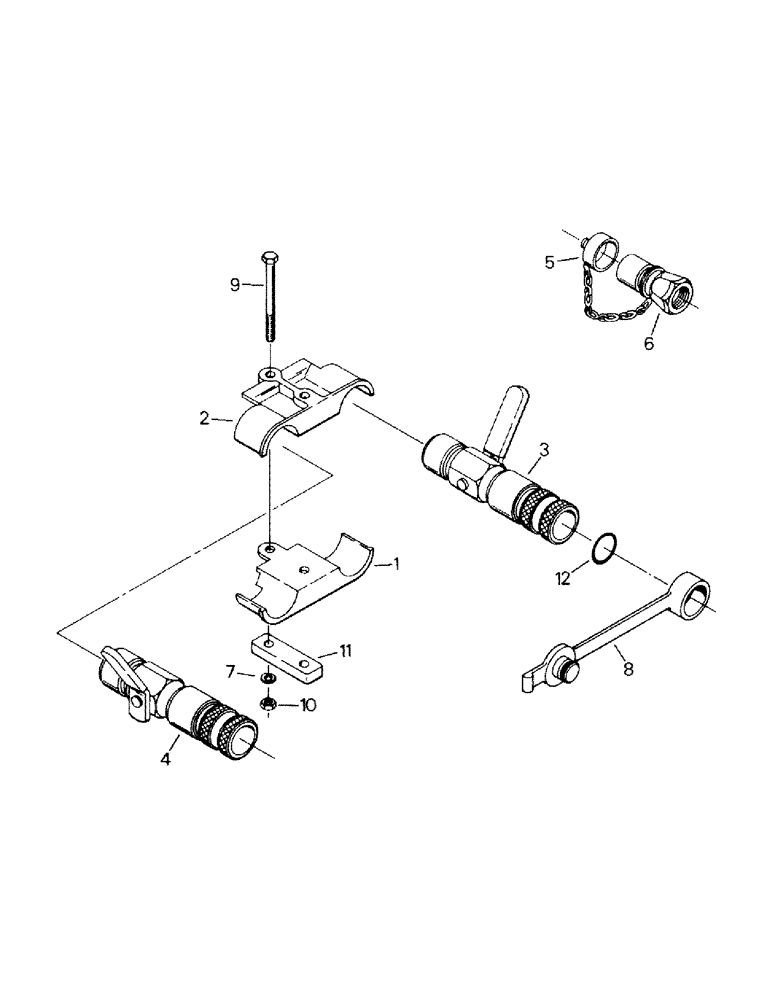

Схема запчастей Case IH STEIGER - (08-18) - COUPLER ASSEMBLY (07) - HYDRAULICS
9
7
8
3
11
10
12
5
1
2
4
6

№

Артикул

Название

Примечание

Количество

50-1328T92

ASSEMBLY

Coupler Assy, Includes: Ref. 1-10 and 12

1шт.

50-1399T92

COUPLING

Coupler Assy, Includes: Ref. 1-8, 9A, 10, 11 and 12

1шт.

1

50-1454T1

CLAMP BRACKET

Bottom Clamp (qty 2 with 50-1399T92) (Replaces 50-1354T1)

1шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

2

50-1455T1

CLAMP BRACKET

Top Clamp (qty 2 with 50-1399T92)

1шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

3

50-1459T91

PUSH-PULL COUPLING

Female Coupler (Red) (incl Ref. 12) (qty 2 with 50-1399T92)

1шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

4

50-1460T91

PUSH-PULL COUPLING

Female Coupler (Yellow) (incl Ref. 12) (qty 2 with 50-1399T92)

1шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

5

1-7142

CAP

Rubber Cap (qty 4 with 50-1399T92)

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

6

1-7141

FITTING

Male Tip Assy. (qty 4 with 50-1399T92)

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

7

19-117

LOCK WASHER,3/8"

3/8"

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

8

50-2267T1

PLUG

Dust Plug (qty 4 with 50-1399T92)

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

9

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Capscrew, 3/8 UNC x 3 G-5

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

19-395

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

Capscrew, 3/8 UNC x 5-1/2 G-5

2шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

10

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

11

50-1604T1

SPACER

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.

12

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-Ring (qty 4 with 50-1399T92)

2шт.

Part of P/N 50-1328T92 Coupler Assy.

1шт.

Part of P/N 50-1399T92 Coupler Assy.

1шт.
