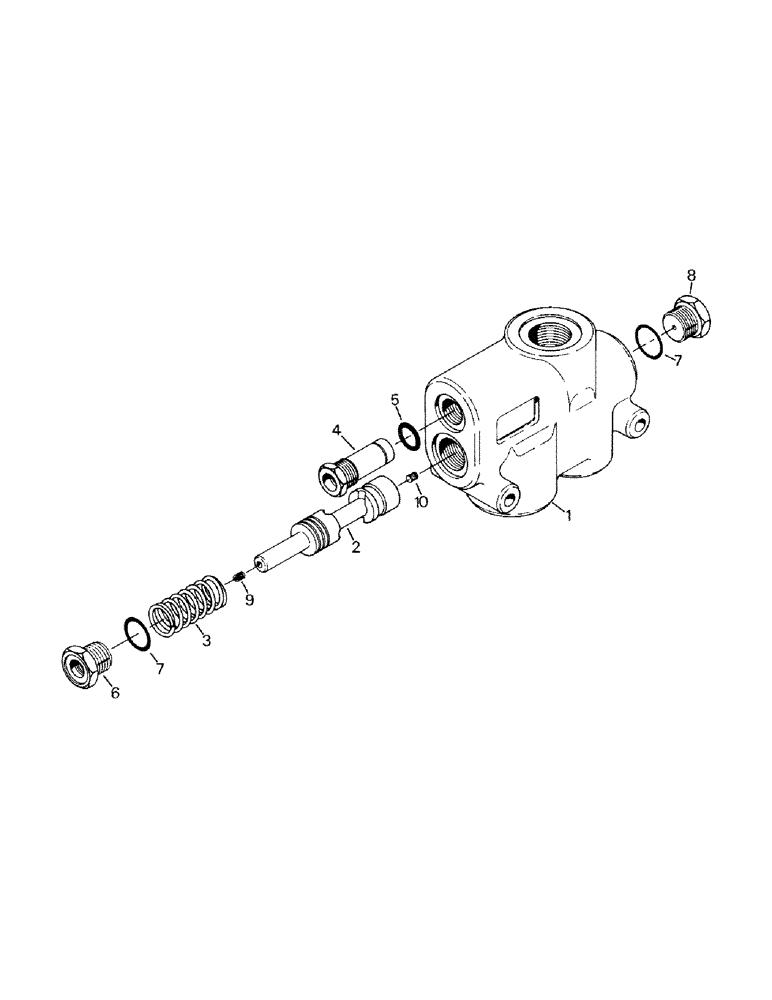

Запчасти Case IH STEIGER (08-17) - PRIORITY VALVE ASSEMBLY (07) - HYDRAULICS

50-2543T91

VALVE

Priority Valve Assy, consists of Ref. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

50-3035T91

CARTRIDGE

Relief Valve Cartridge Assy consists of Ref. 5)

1шт.

5

50-1872T1

O-RING

1шт.

6

50-2996T1

CONNECTOR, ELEC

Plug with Orifice

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

50-2995T1

PLUG

with Orifice

1шт.

9

NSS

NOT SOLD SEPARAT

Plug with Orifice

1шт.

10

NSS

NOT SOLD SEPARAT

Plug

1шт.
